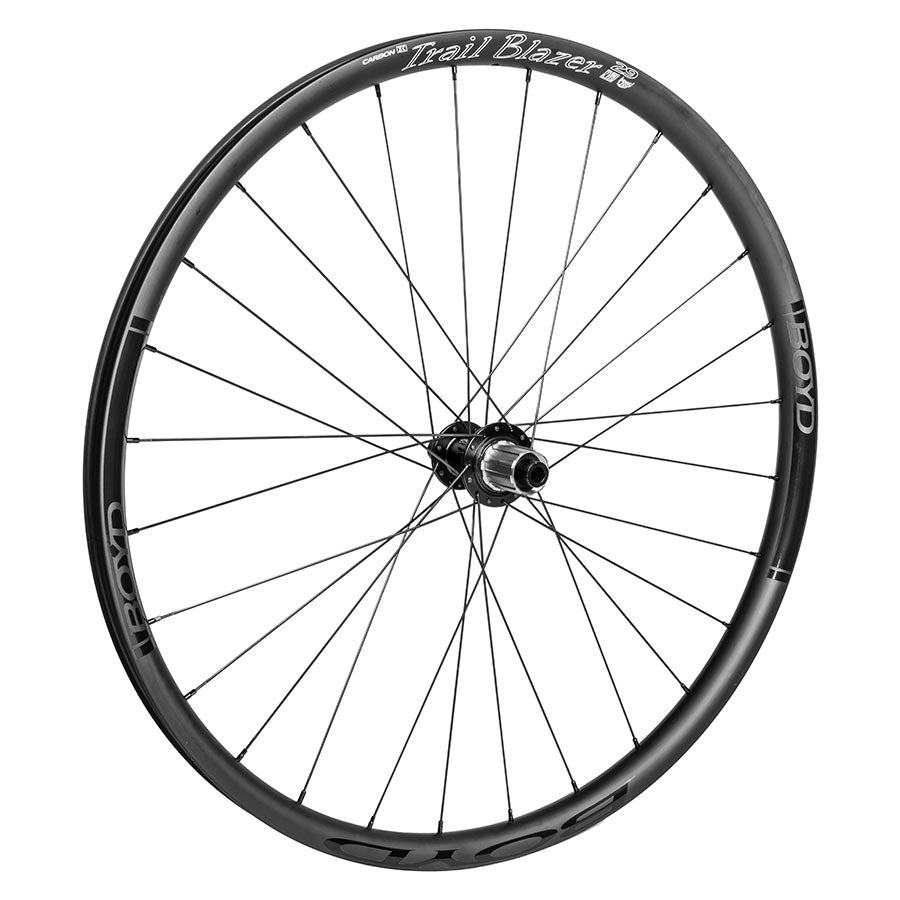

The Ultra-light carbon XC wheel
Hookless rim wtih an internal width of 26mm, mates perfectly with fast rolling cross-country tires ranging from 2.1” to 2.4”.
Quest Disc MTB hubs (120 grams for the front and 245 grams for the rear) with their super quick five-degree engagement, tool free service and centerlock spline for disc brake rotors.
Pillar Wing 20 J-Bend spokes and alloy nipples are laced double-cross with 24 spoke front and 28 spoke rear.
The ultra-light, yet durable, 370-gram rim measures 26mm internal, featuring a 2.8mm offset rim bed for better tension balance and a more responsive wheel build.
These specs total up to a 1380-gram wheelset that has a modern day wider rim design and can handle the rigors of cross country mountain bike riding.
| Axle Type |
12mm TA |
| Hub Model |
Quest |
| Rim Color |
Black |
| Rim Construction |
Double wall |
| Rim inner width range |
22-27.9mm |
| Rim Internal Width |
26mm |
| Wheel-Brake Comp. |
Disc Center Lock |
| Position |
Rear |
| Rim Material |
Carbon |
| Spoke Type |
Pillar Wing 20 |
| Freehub Body |
Shimano Micro Spline |
| Valve |
Presta |
| Rim Drilling |
28 |
| Skewers Included |
No |
| Wheel Tire Type |
Tubeless Compatible |
| Wheel Weight |
775g |
| Depth |
25mm |
| Hub Spacing |
148mm |
| Rim External Width |
32mm |
| Wheel Diameter/ISO |
29 / 622 |
