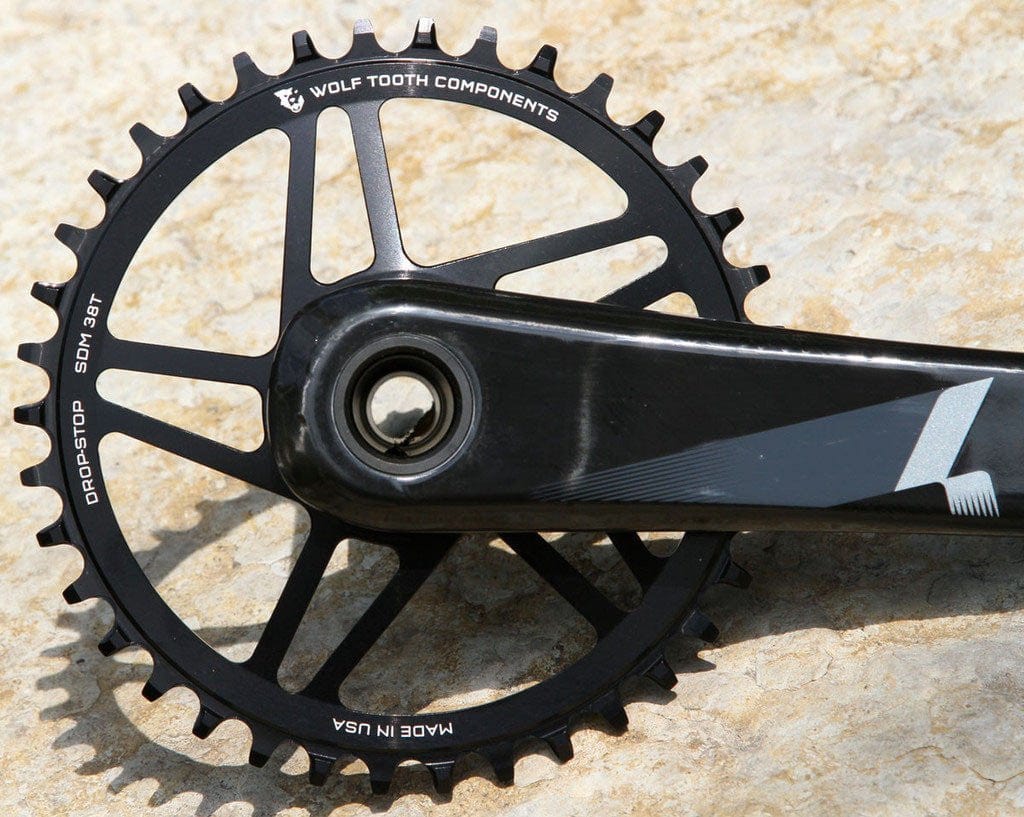

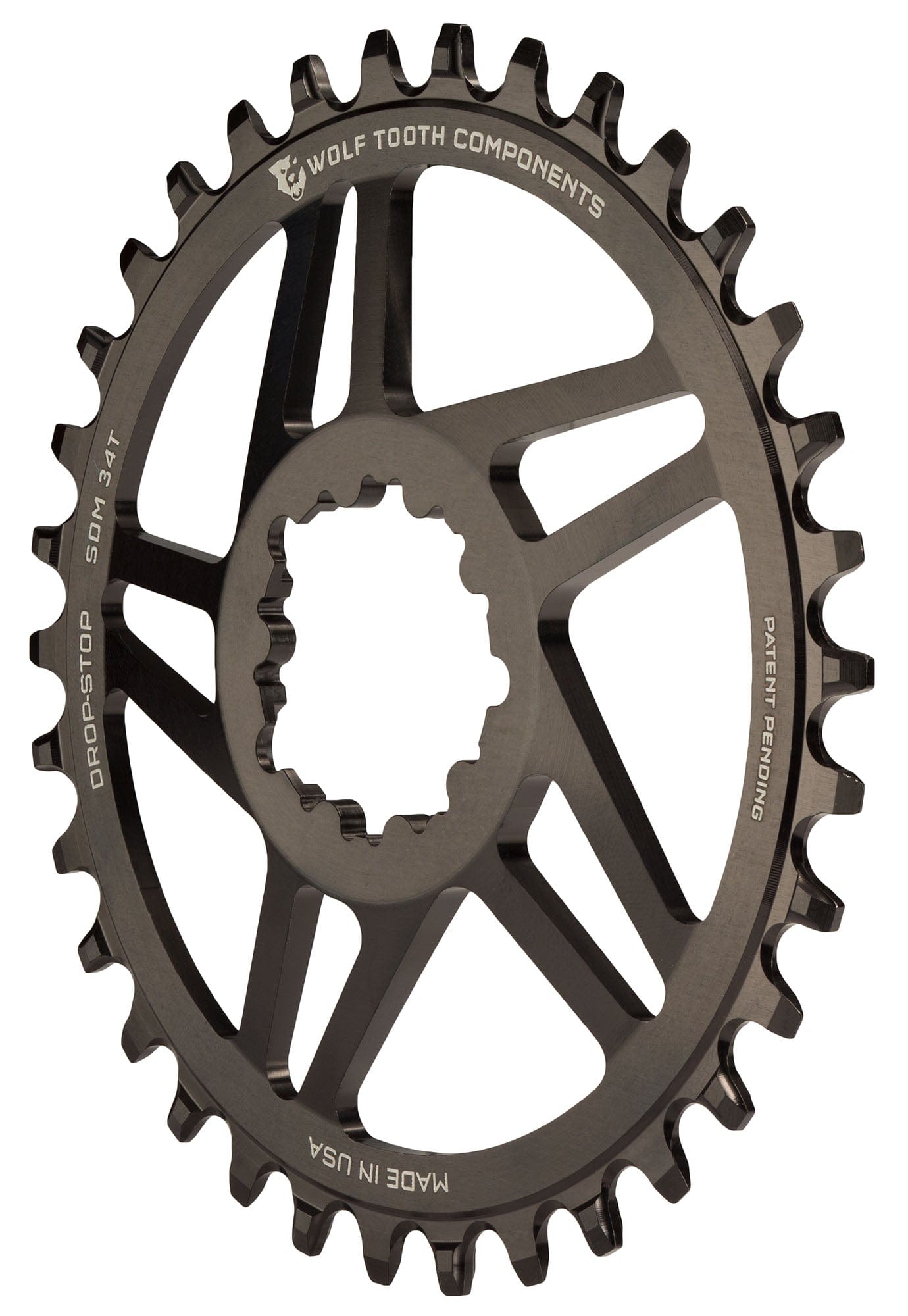

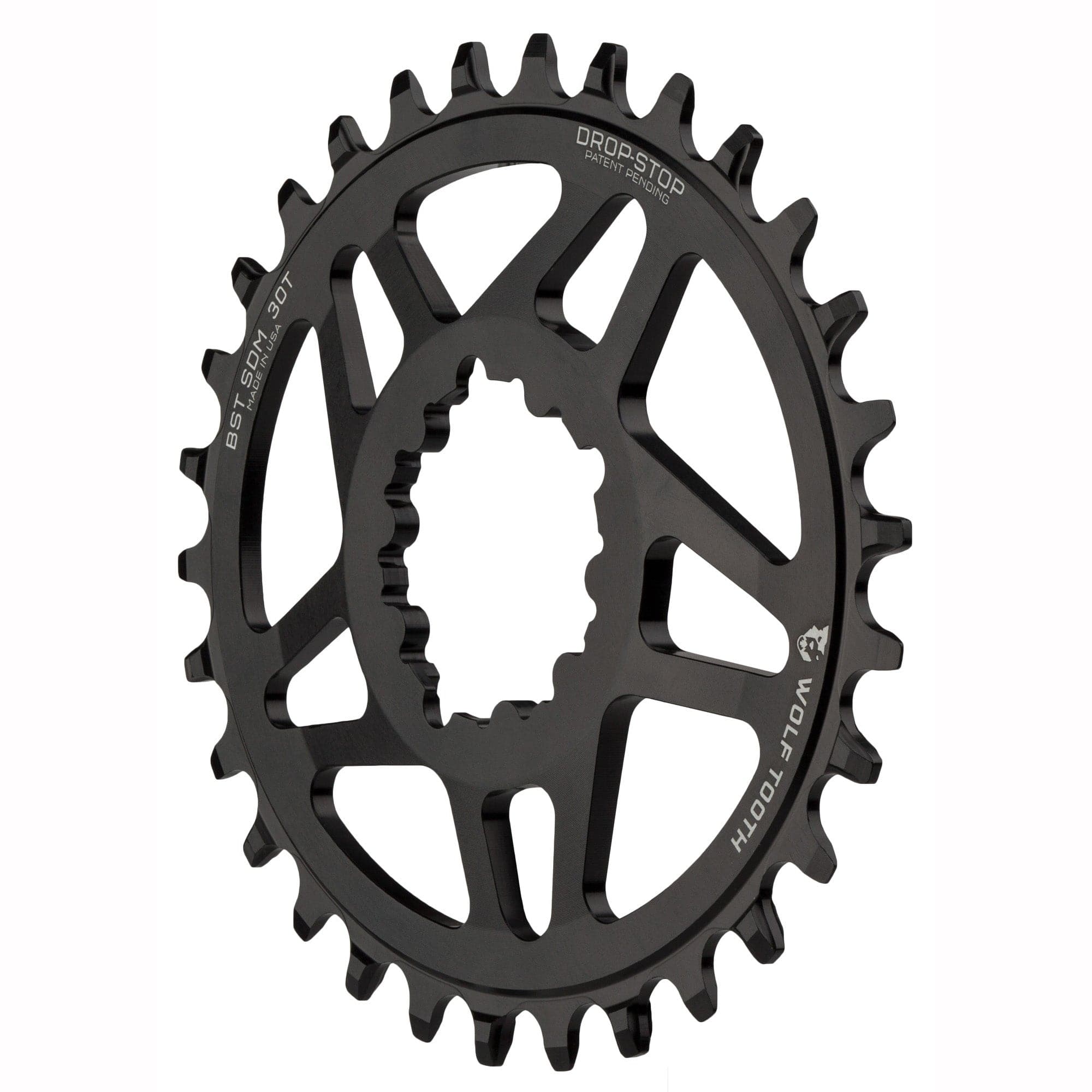

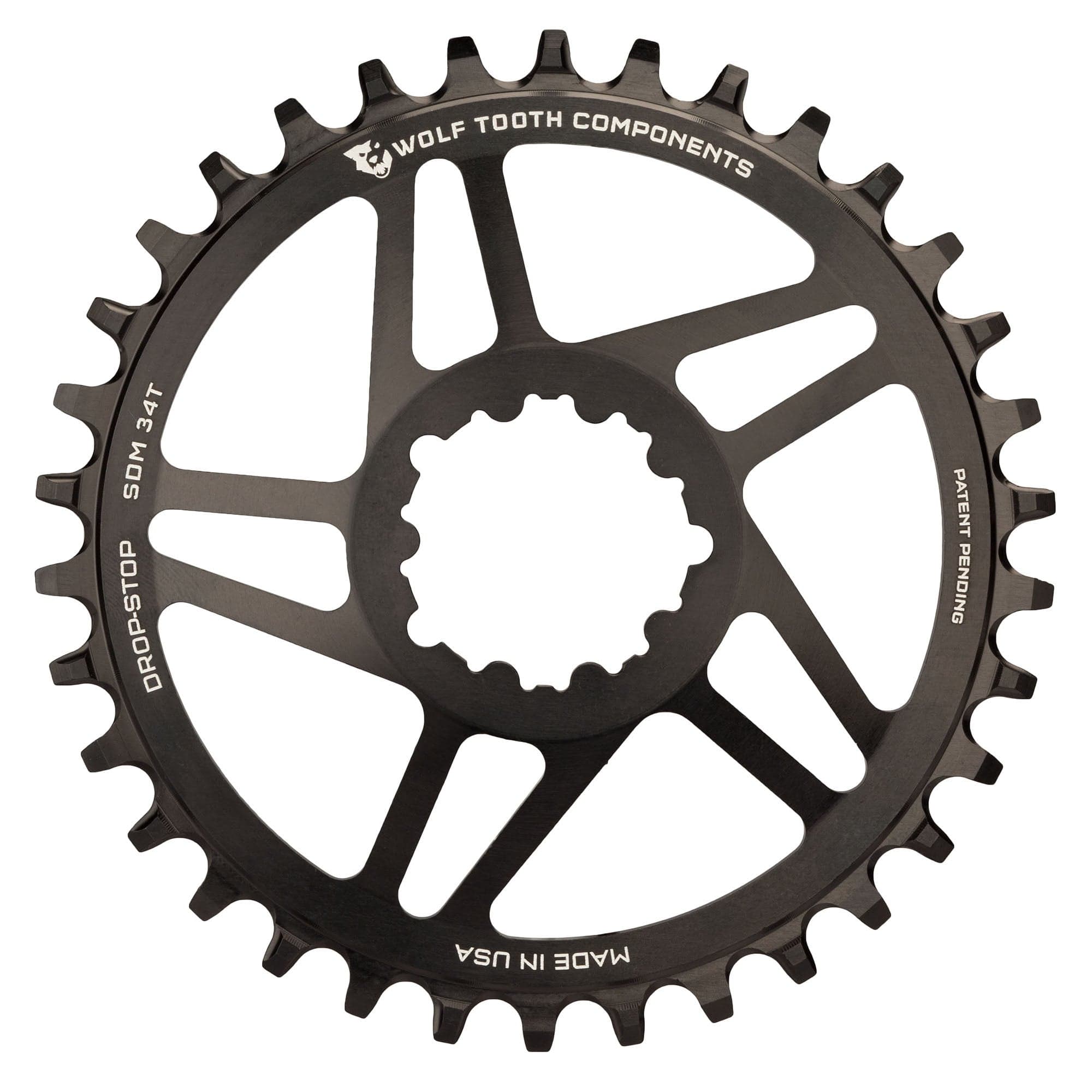

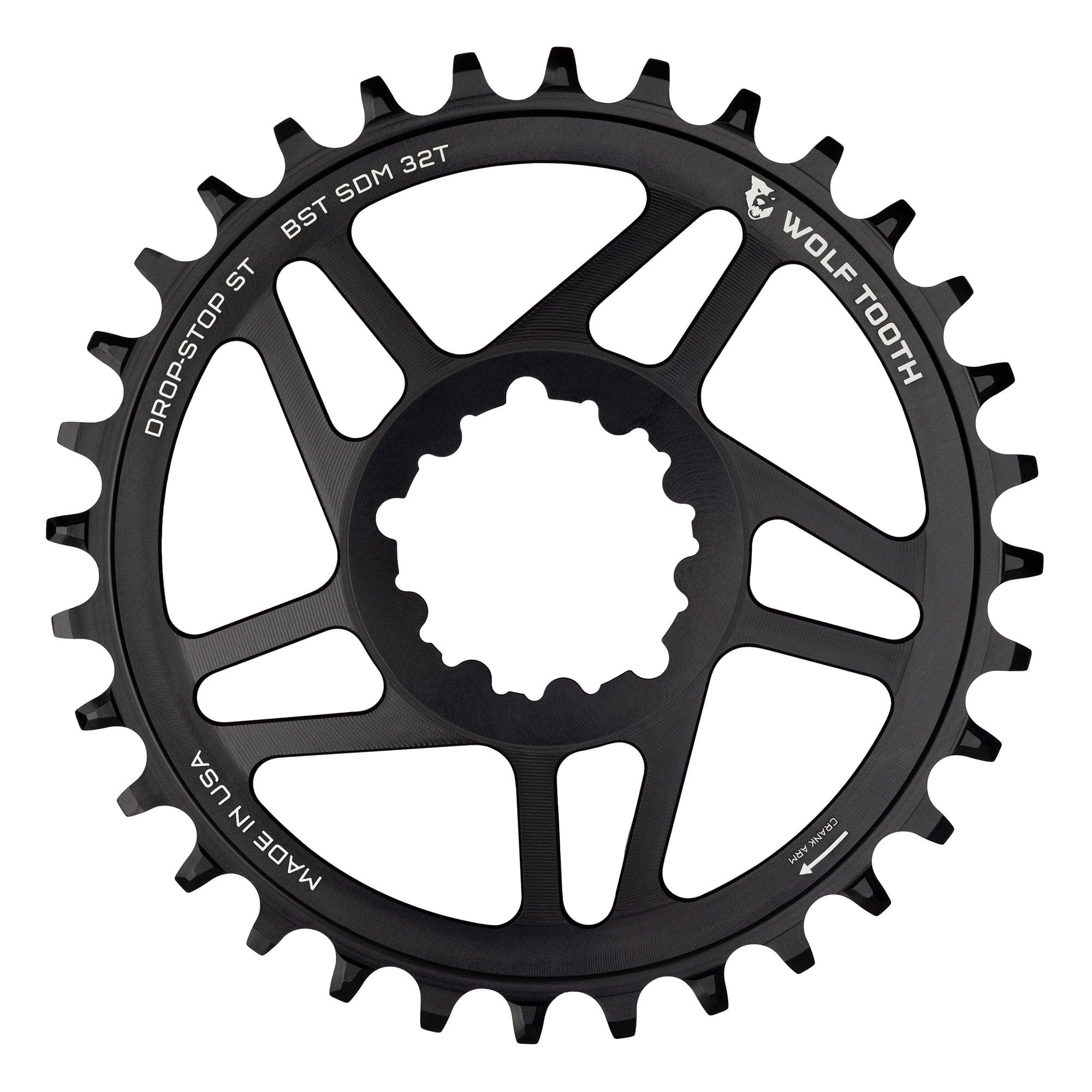

Direct Mount Chainrings for SRAM 3-bolt Cranks

Compatibility

• These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle. Note that these chainrings are NOT compatible with SRAM 8-bolt direct mount cranksets.
• Also compatible with Cane Creek eeWings cranksets

• Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
• There are 3 offsets:

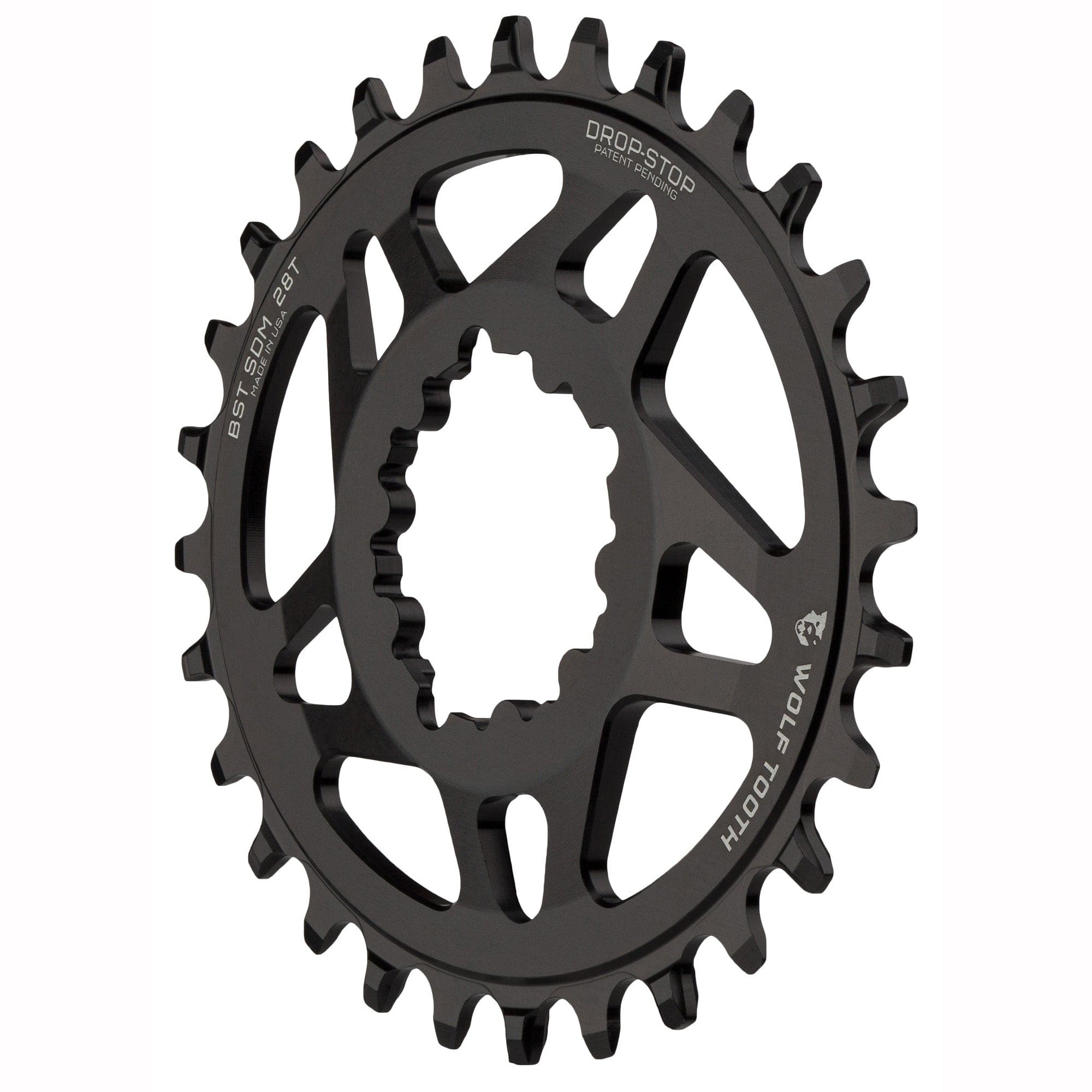

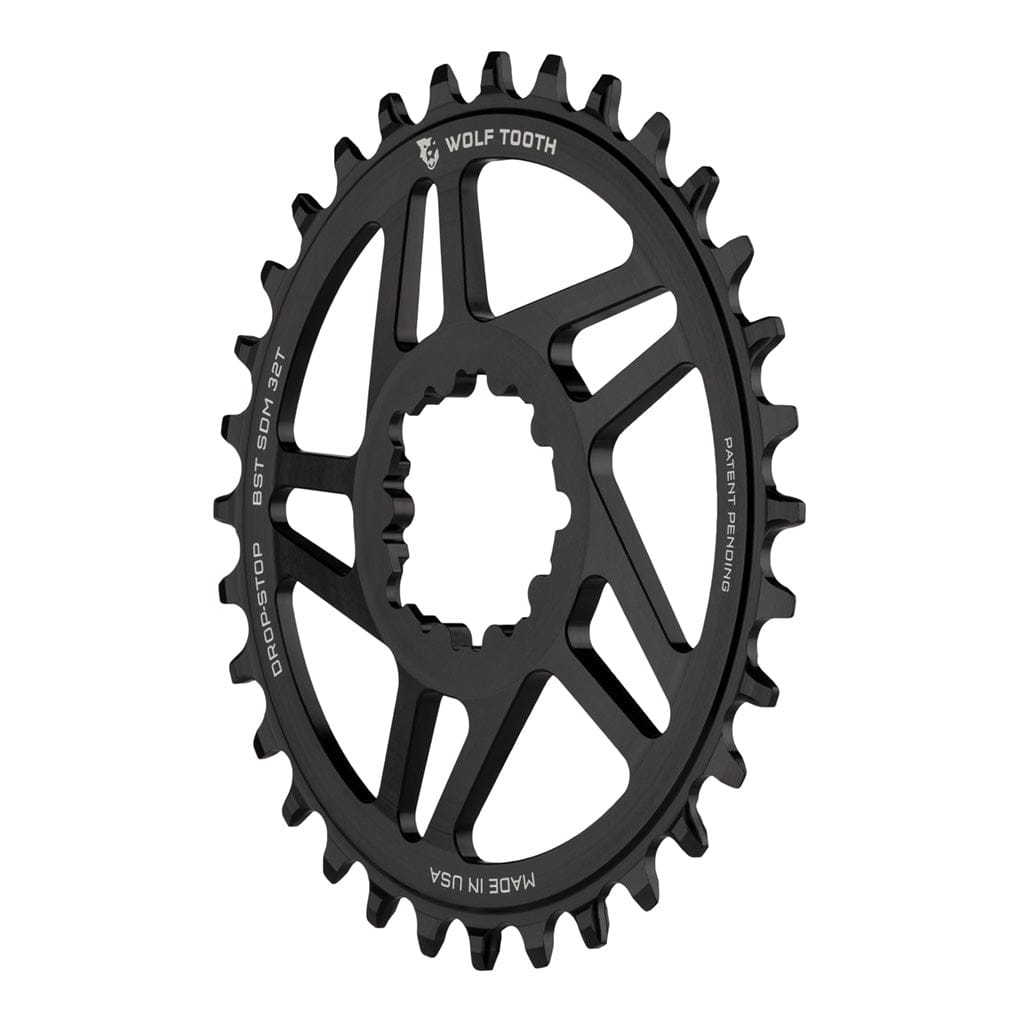

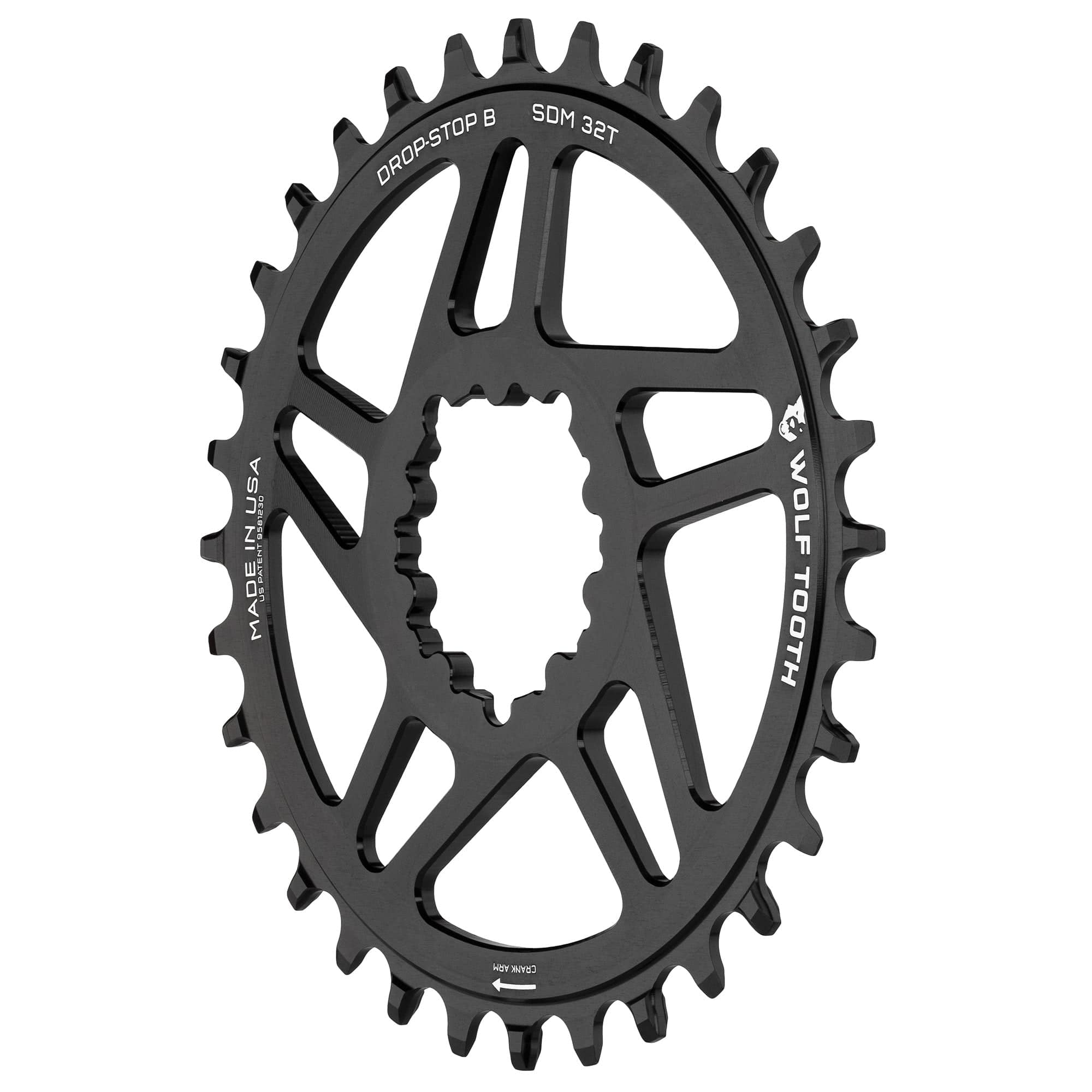

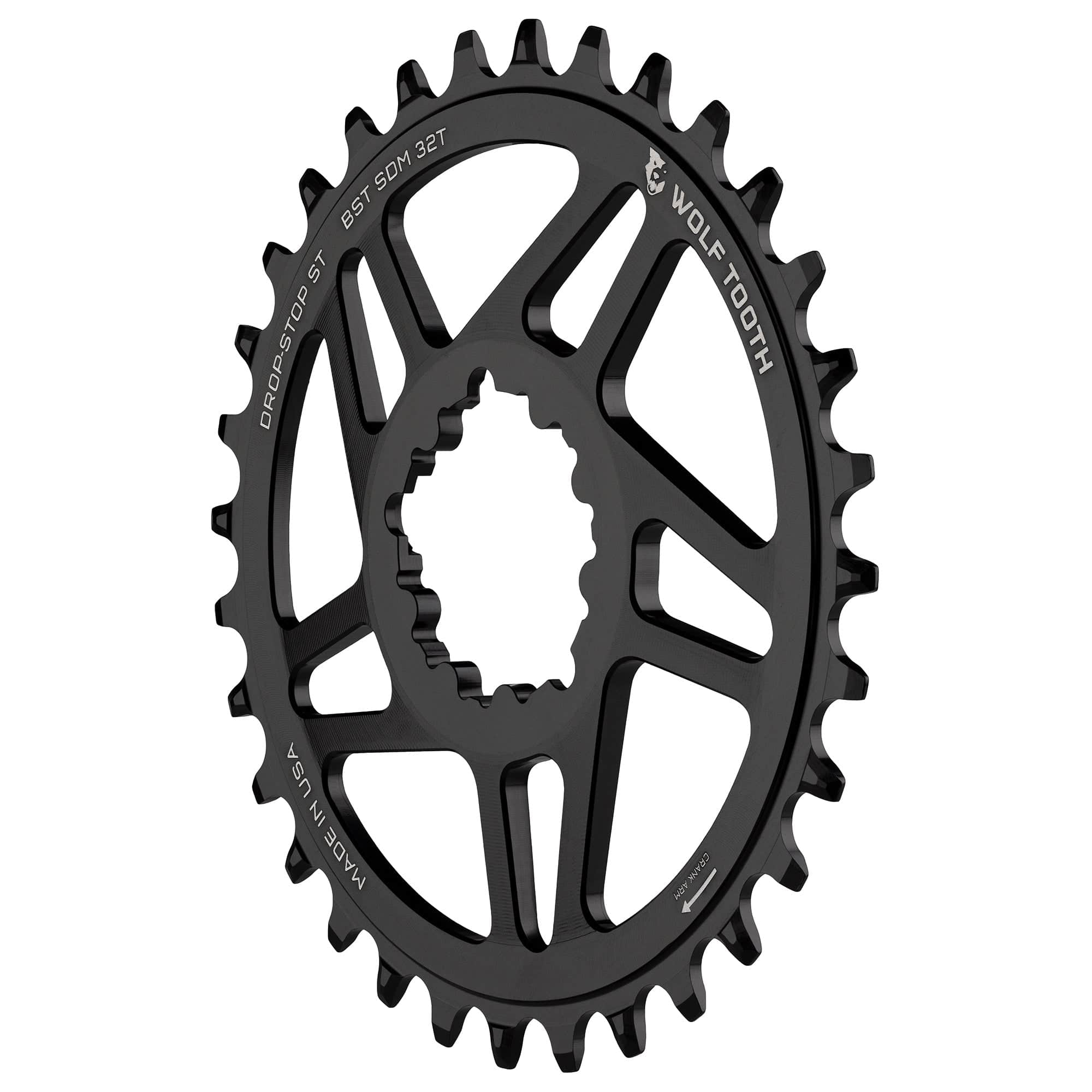

• Boost: 0mm offset for 55mm chainline required for SRAM Transmission

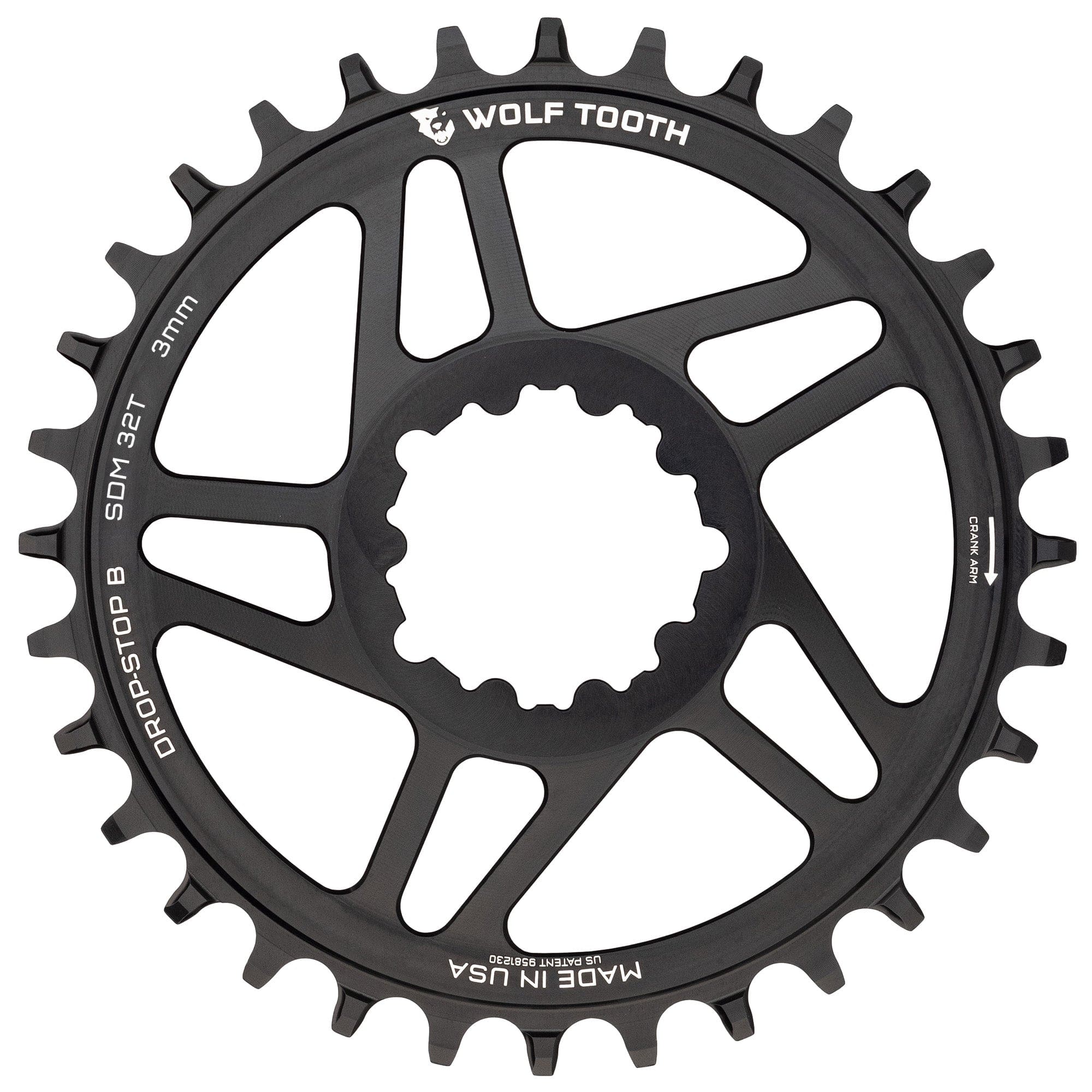

• Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes

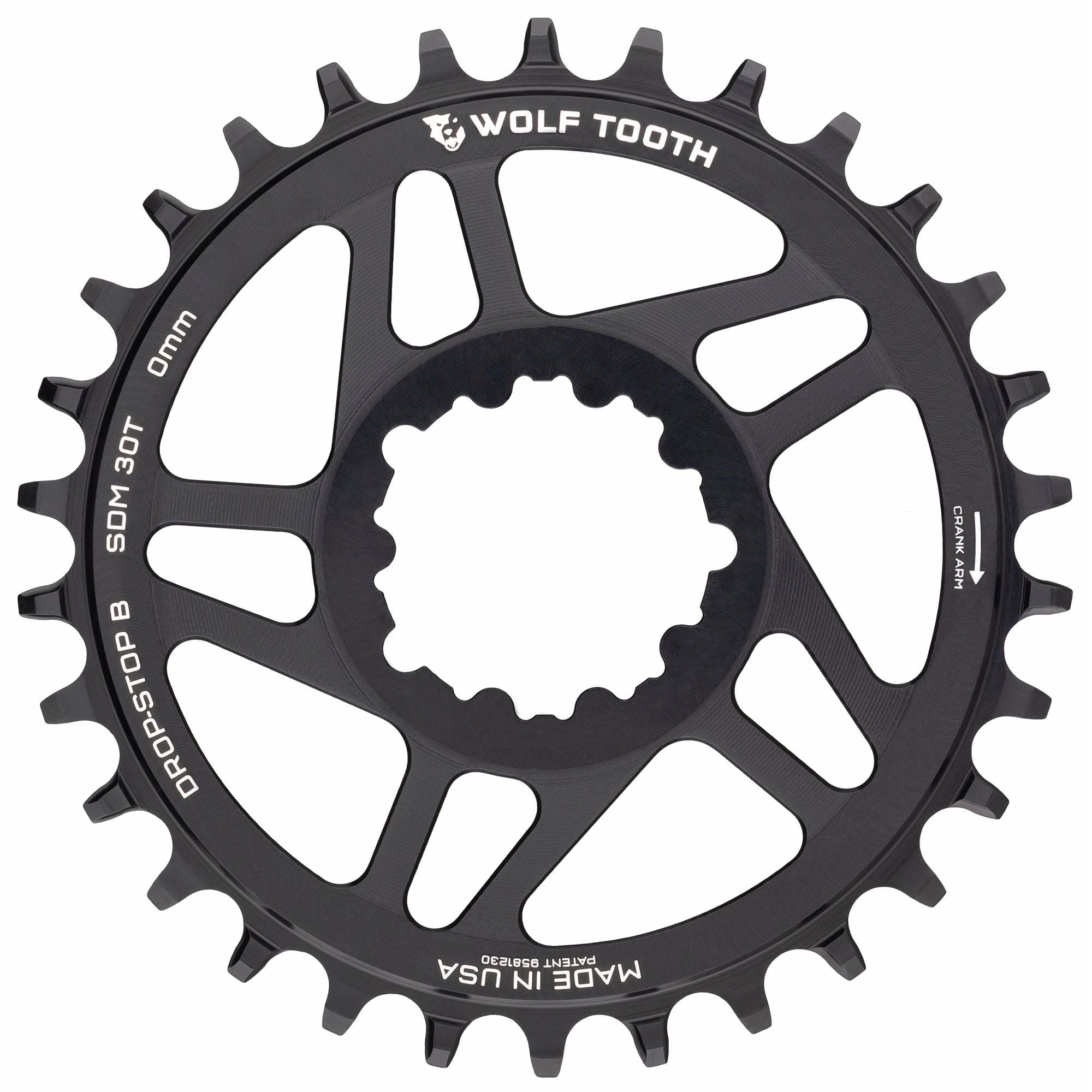

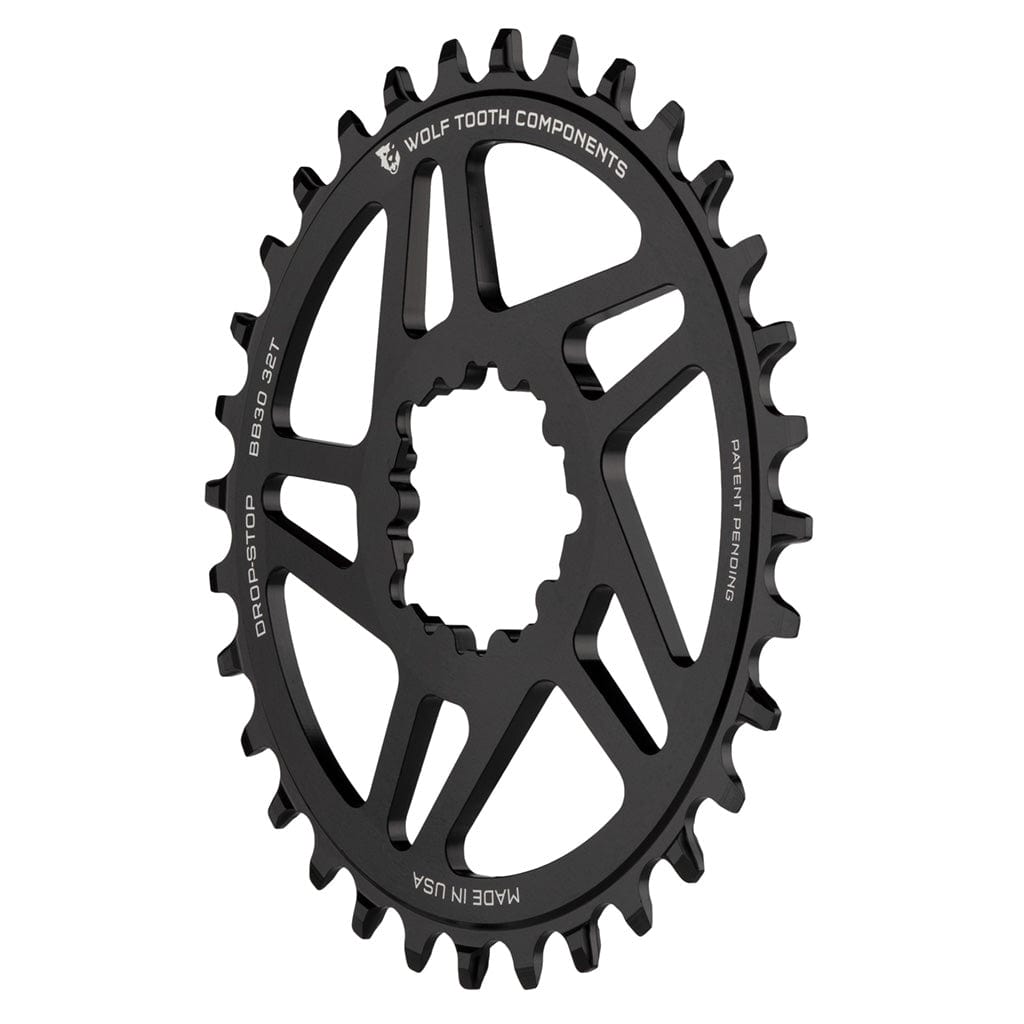

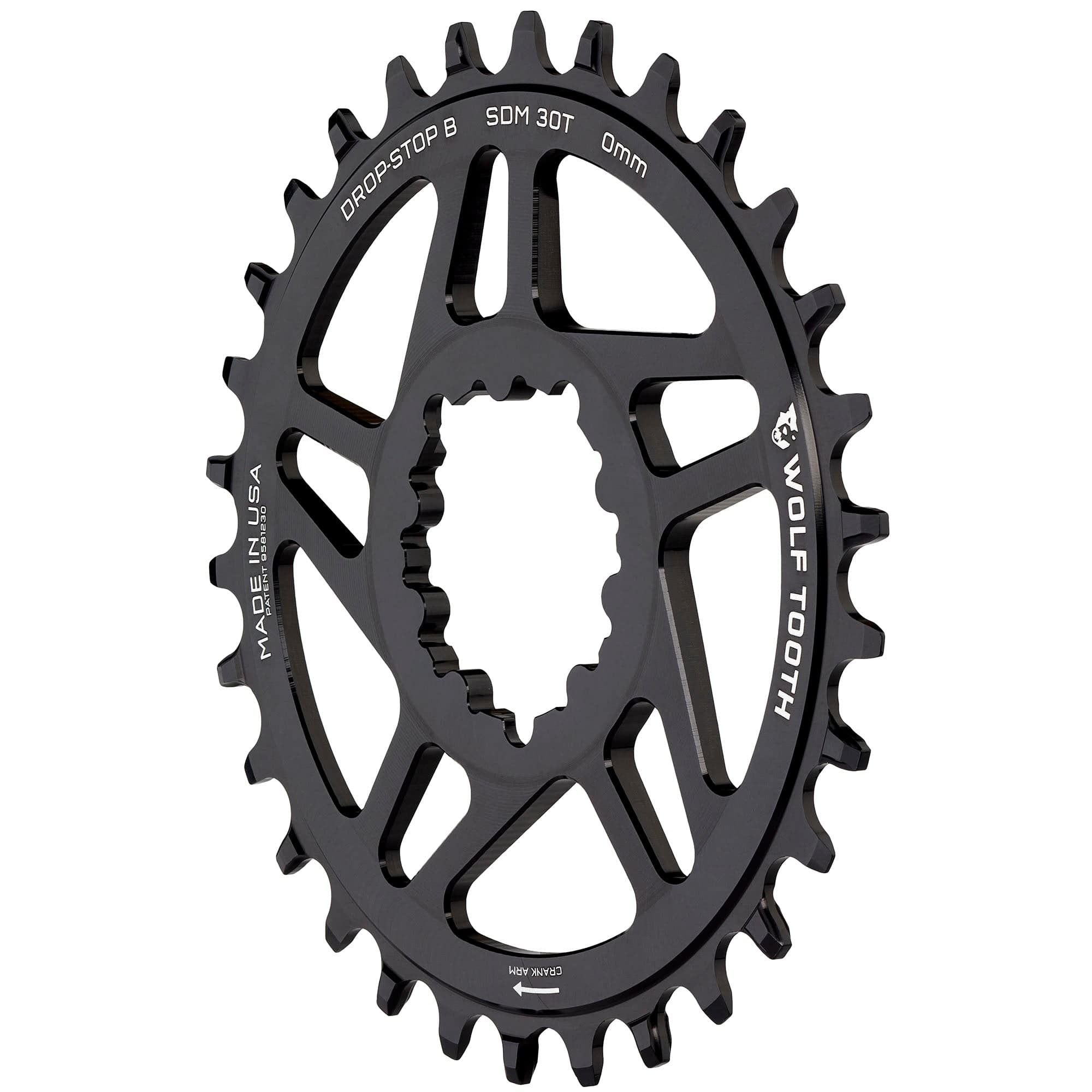

• BB30: 0mm offset for BB30 short spindle cranks for  49mm chainline
• Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline
• Fat bikes: If your fat bike has a 170/177 rear hub spacing, use the standard 6mm offset
• Praxis Works Road/CX cranks use the 6mm offset.  Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.

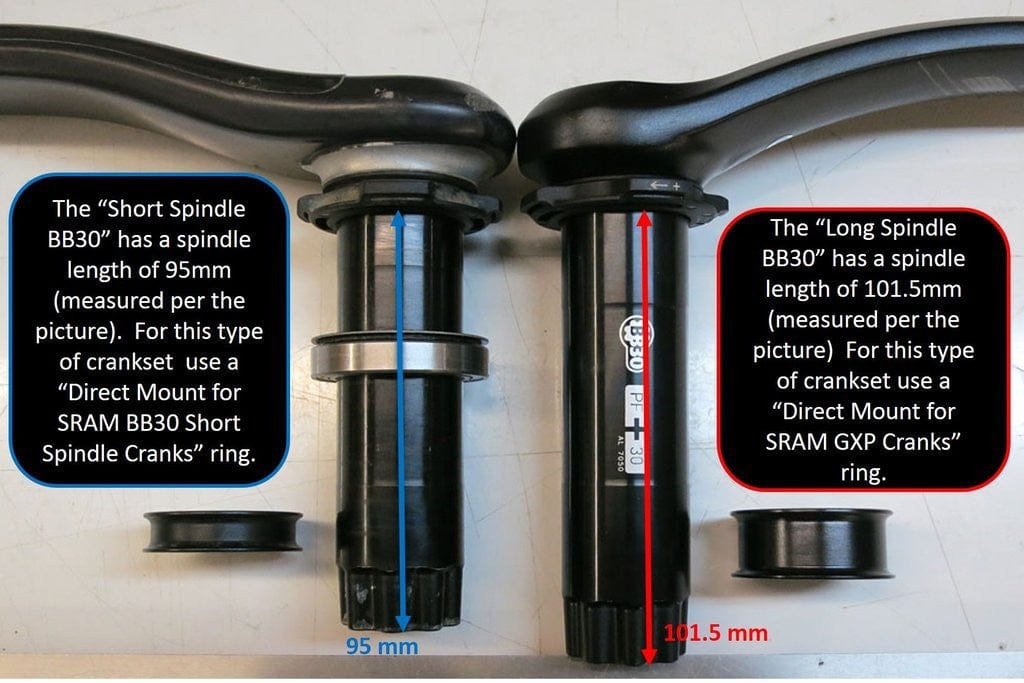

• If you have a BB30 crankset (30mm diameter aluminum spindle) this measurement will determine whether it is a long or short spindle:

• If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).

Recommendations

• Recommend the use of a clutch style rear derailleur for the best chain security.

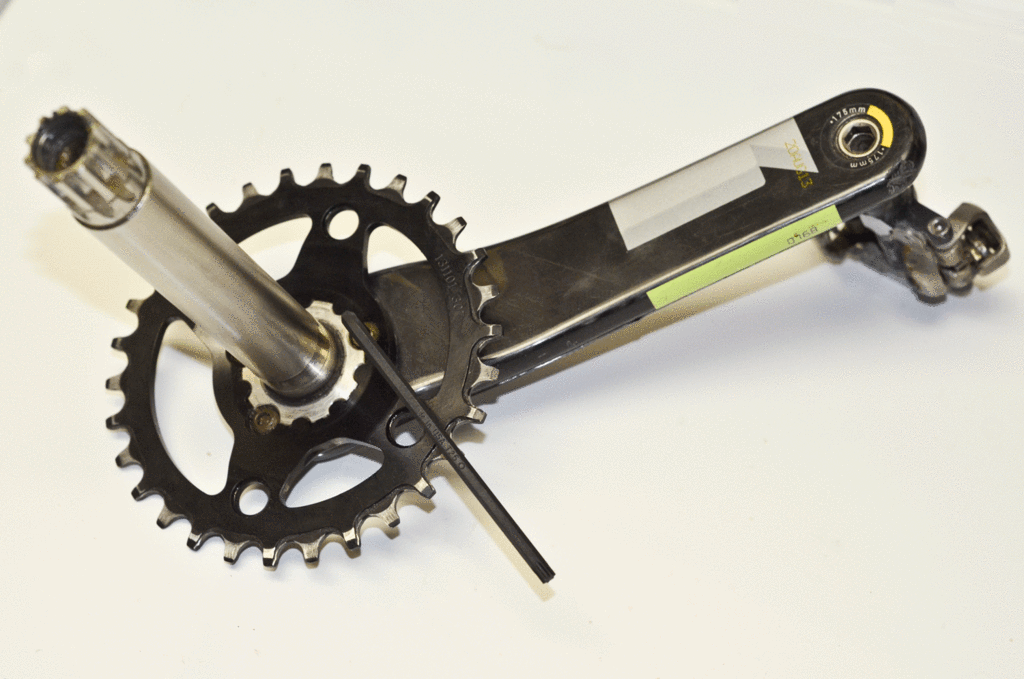

• An L-wrench works best since the crank spindle may contact a socket adapter and prevent it from engaging properly.
• Use the same 3 bolts to attach the Wolf Tooth ring or we carry replacement bolts

Related Products

• For a longer lasting and more durable option check out the CAMO System that offers stainless steel chainrings.
• We recommend using a T25 L-Wrench or similar for removal and installation of the bolts.
• The stock bolts are easily damaged when removing them to install a direct mount chainring. We have replacement bolts if you need them.

Tech Specs

Weights: 26t • 52g | 28t • 59g | 30t • 65g | 32t • 70g | 34t • 75g | 36t • 81g
Material: 7075-T6 aluminum
Made in the USA
