Compatibility

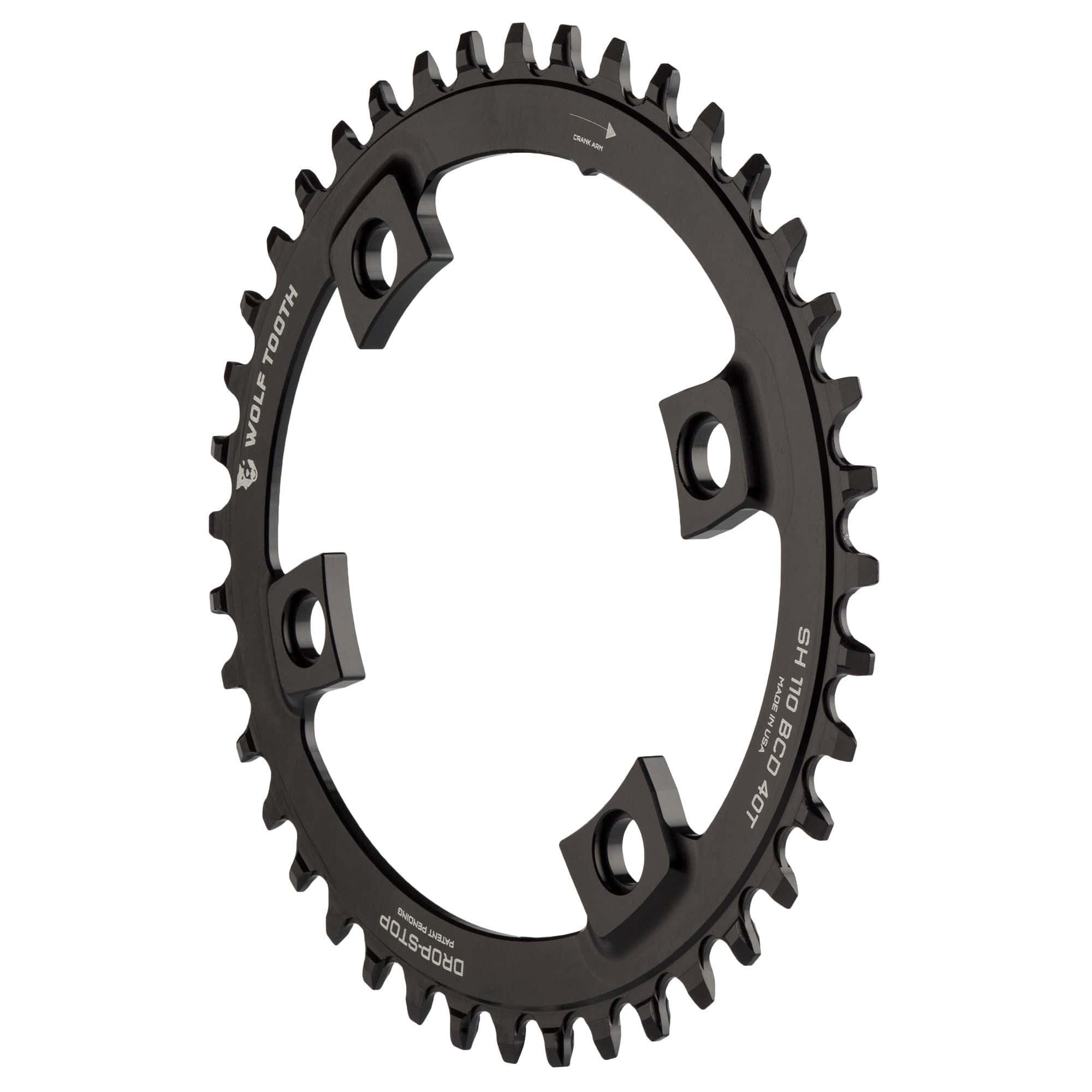

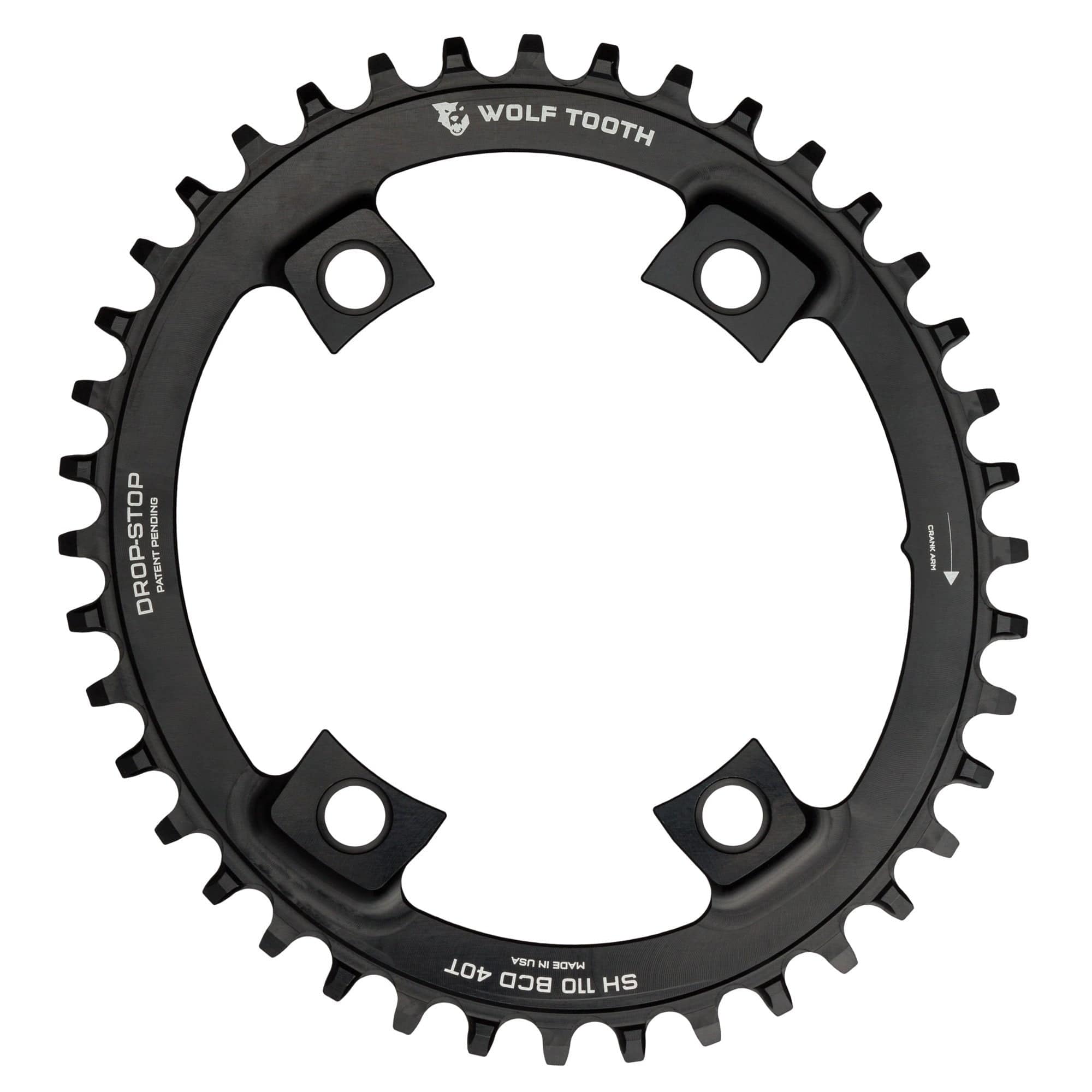

- These rings are for use with Shimano 110 BCD Asymmetric 4-bolt cranks.

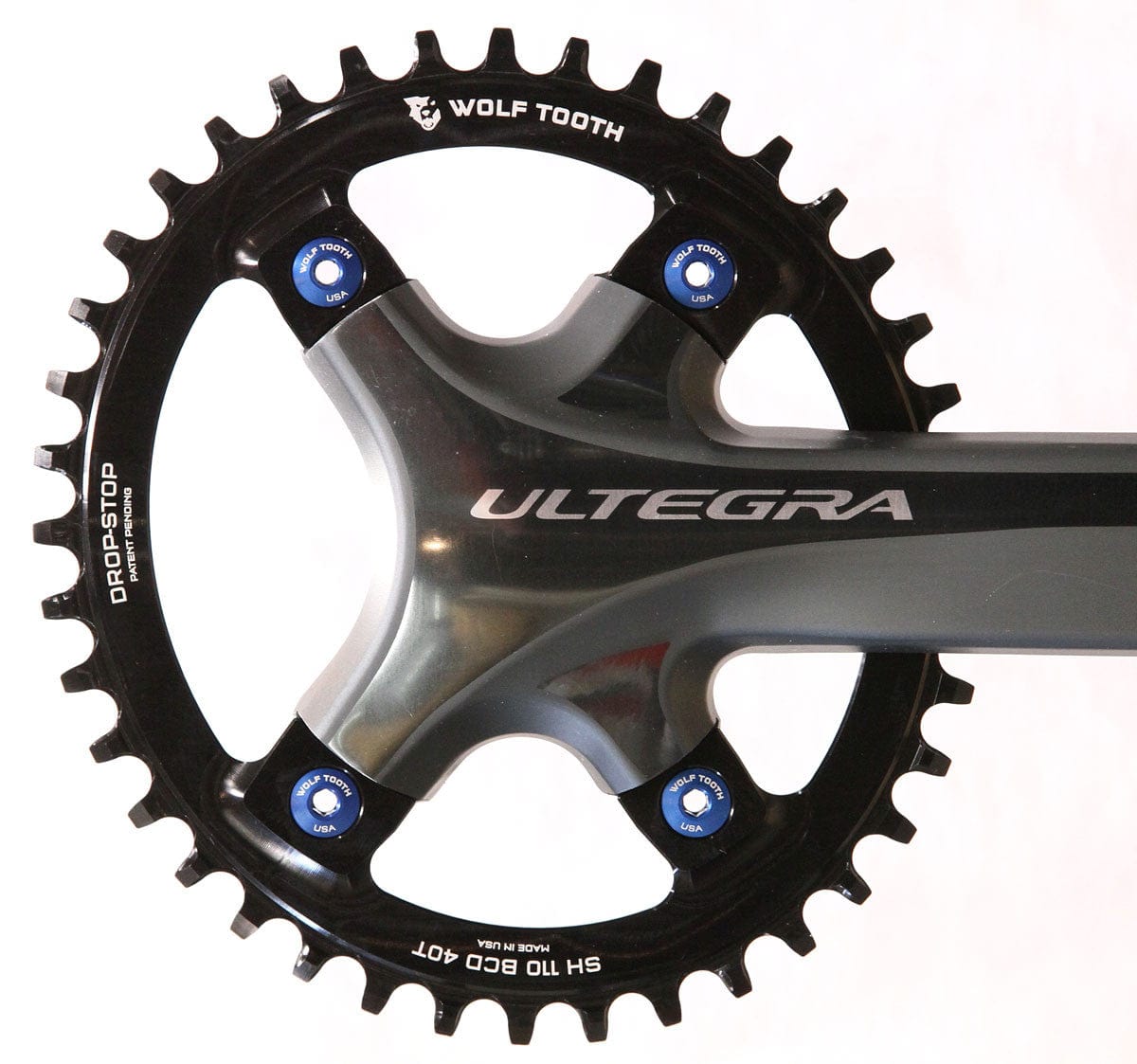

- Compatible with Dura Ace 9000, Ultegra 6800, 105 5800, Tiagra 4703 or 4700, Sora R3000 or R3030, and Claris R2000 or R2030 cranks.
-
Sizes 40T and larger are compatible with Dura Ace 9100, Ultegra 8000, and 105 R7000 but a slight modification is required due to a change in the crank arm profile. The 38T chainring will not work for this modification. Click here to review the process for the modification, which takes about 5 minutes to perform.
- NOT compatible with Dura-Ace R9200, Ultegra R8100, and 105 R7100 Cranks
- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
-
The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Chainline - 47.5mm
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
- Recommend the use of a clutch style rear derailleur for the best chain security.
Related Products
6mm bolts - the stock 2x bolts will not work.
Tanpan - allows Shimano mountain bike rear derailleurs to be used with Shimano road shifters
RoadLink - allows for wide range cassettes to be used with Shimano road rear derailleurs
Tech Specs
Weight: 38t • 66g | 40t • 74g | 42t • 81g
Material: 7075-T6 aluminum
Made in the USA
