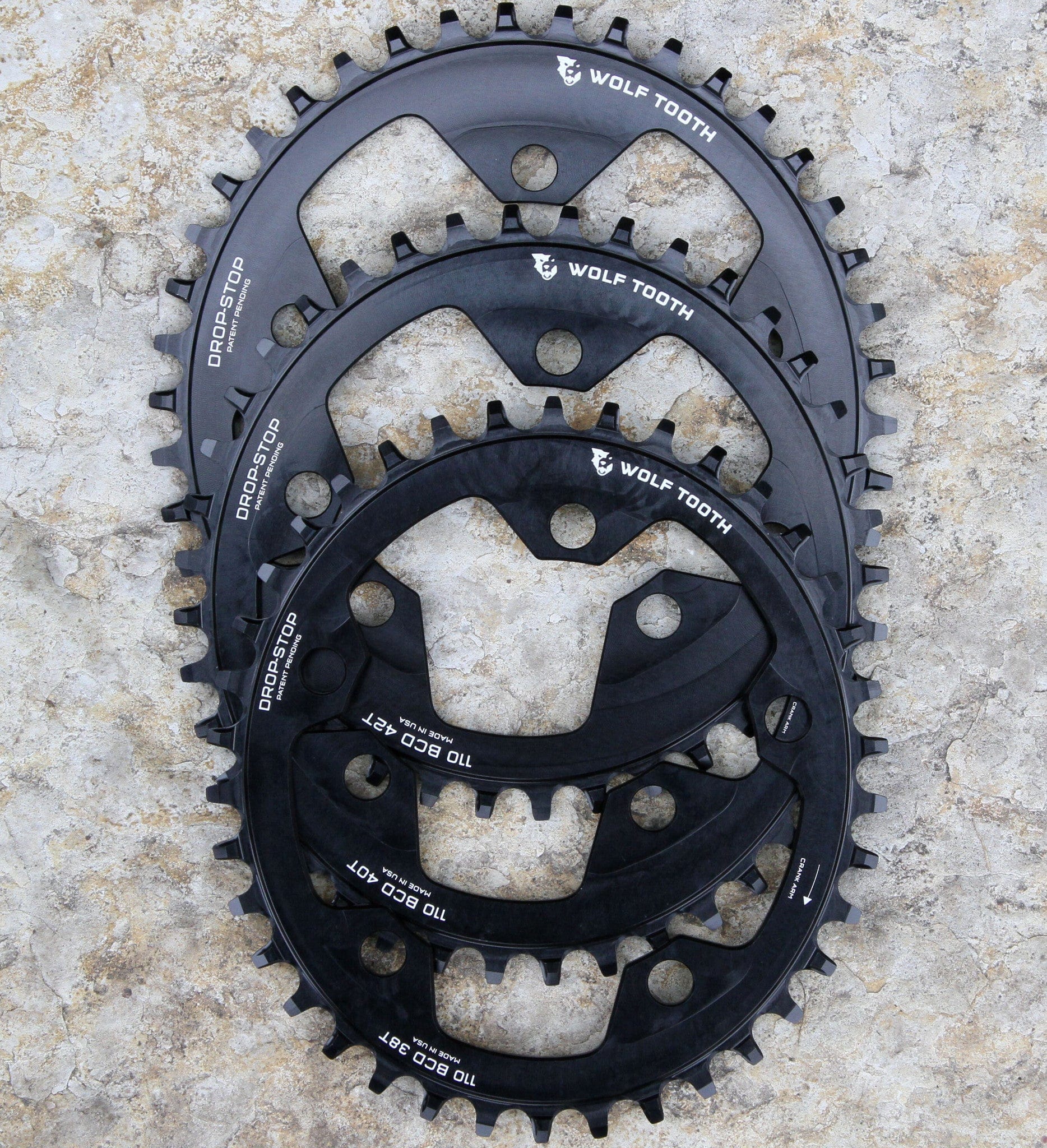

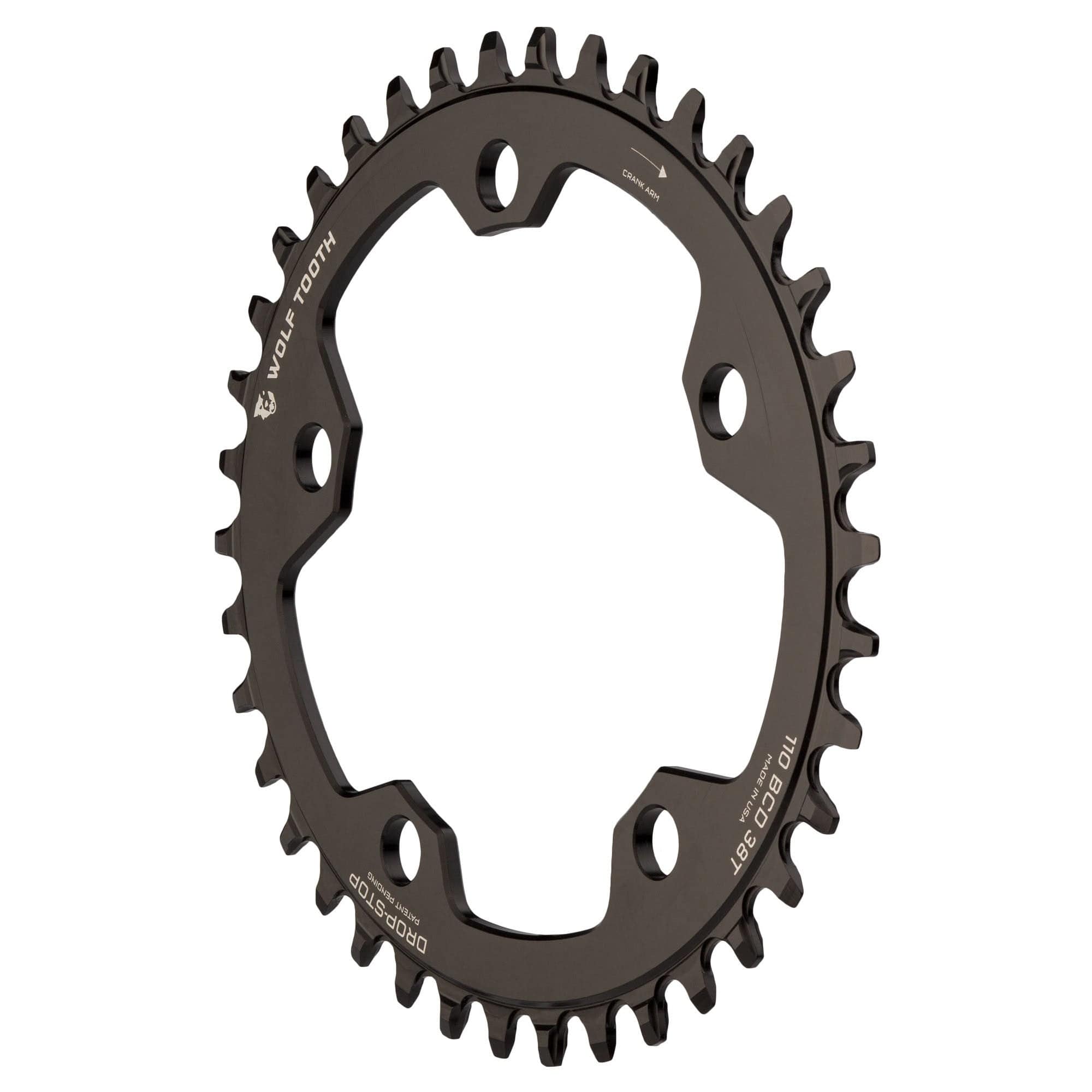

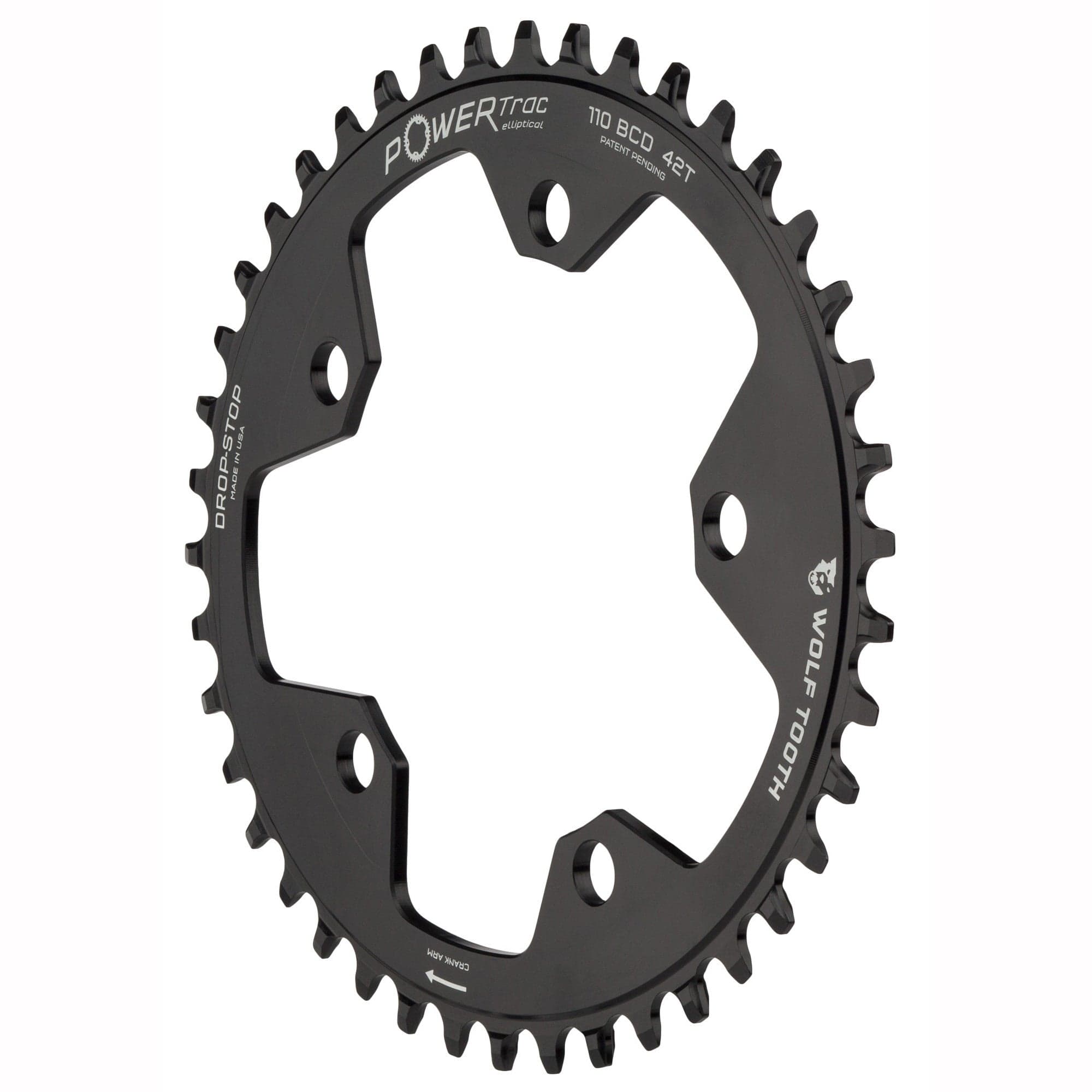

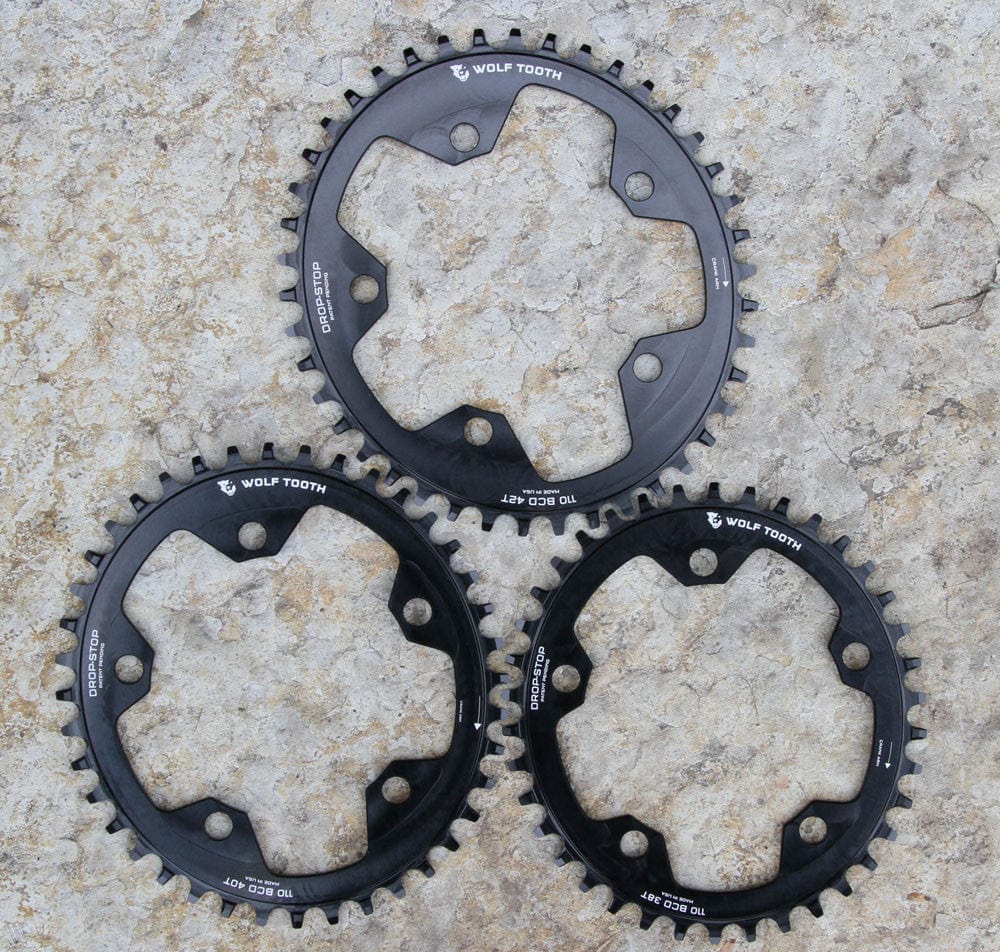

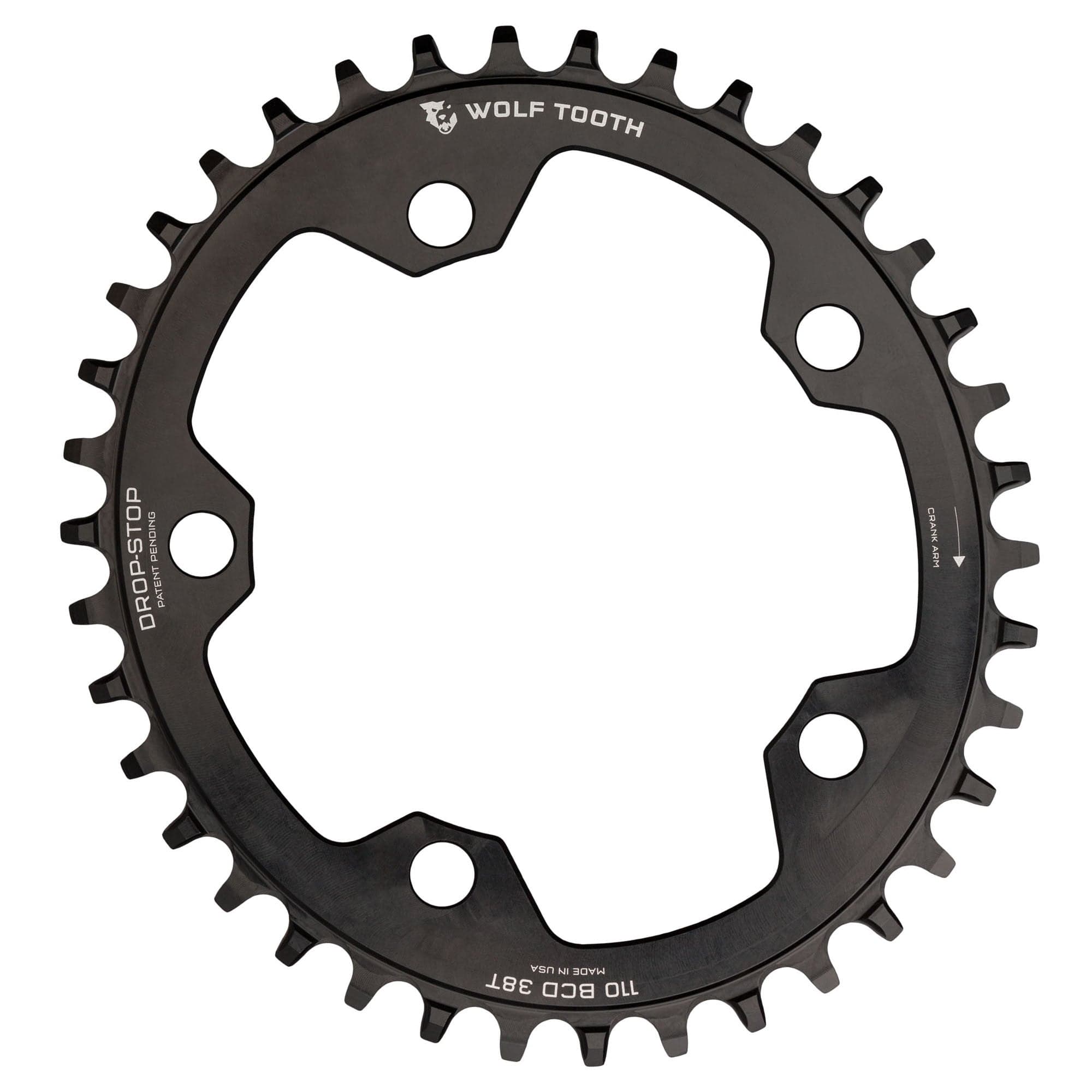

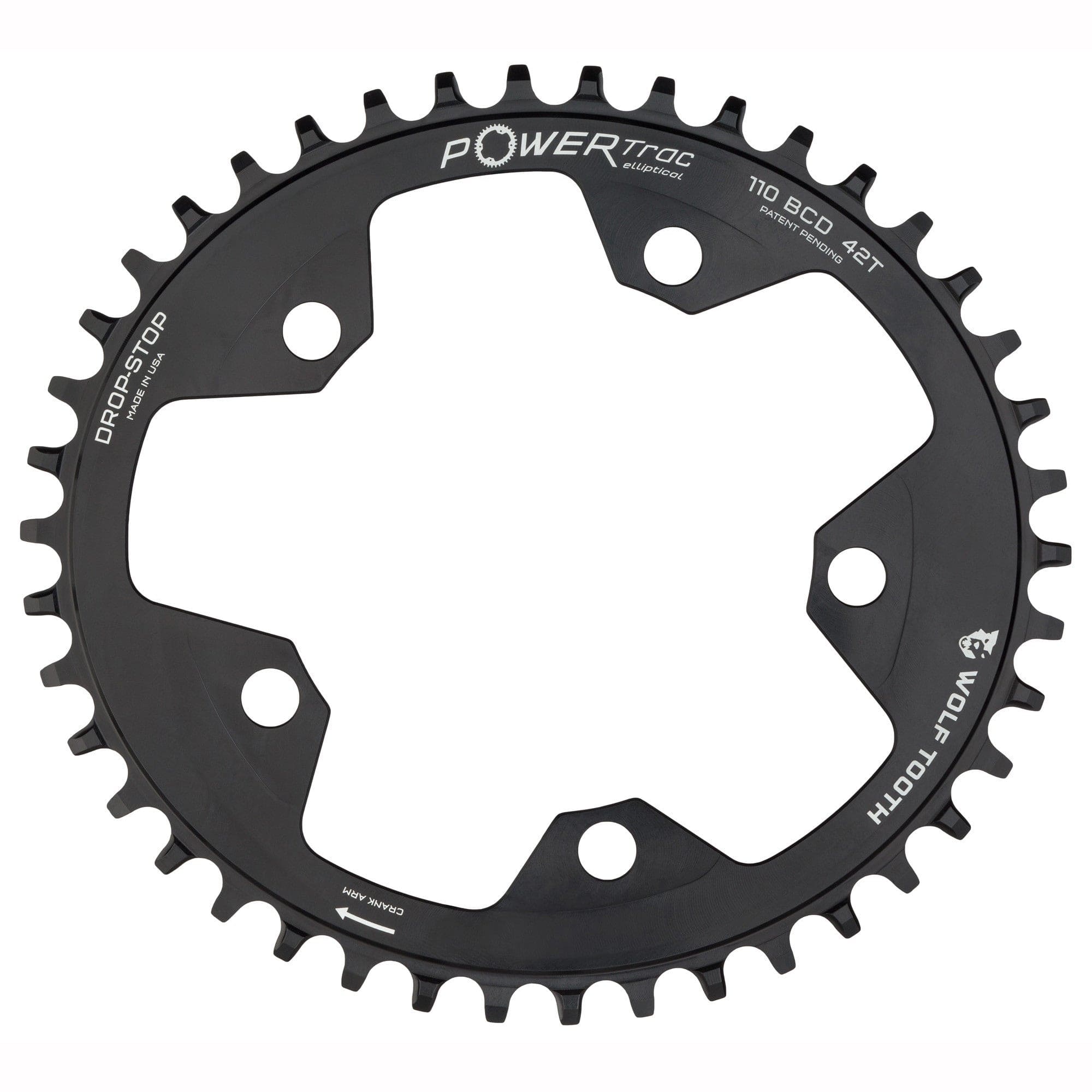

Oval 110 BCD Gravel / CX / Road Chainrings



Compatibility

• These rings are for use with 110 BCD 5 arm cranksets.

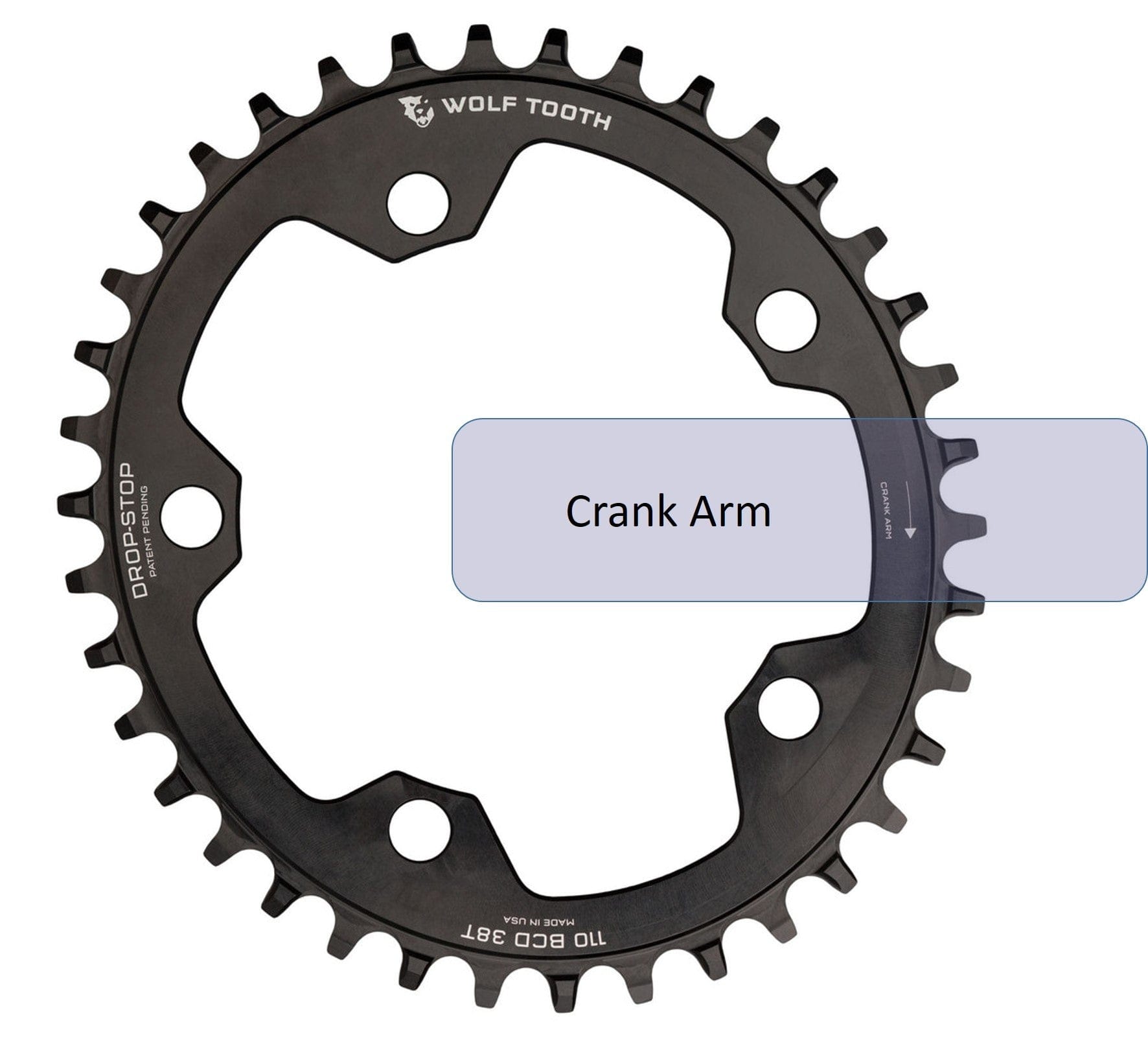

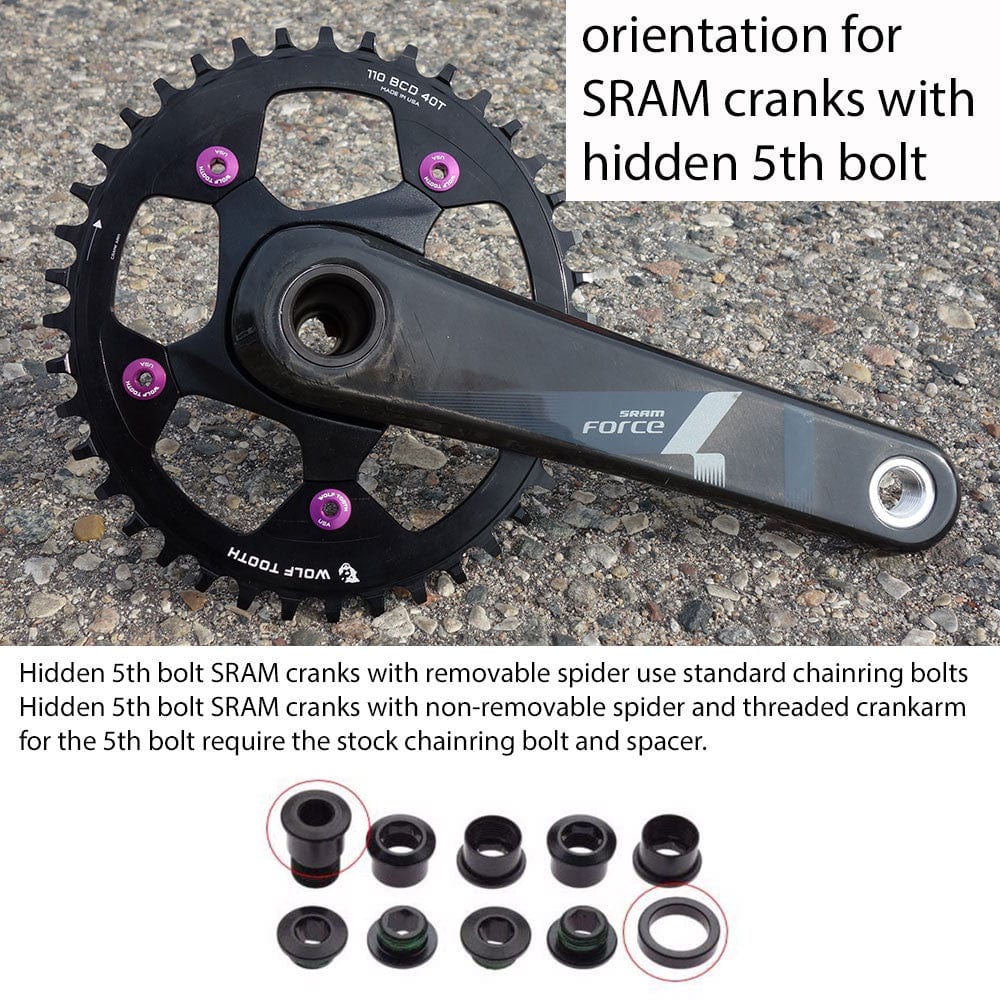

• Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
• Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
• Chainline - varies - these rings can be mounted in either the big or small ring position on a double cranksets. The most common mounting is in the big ring position because of chainstay clearance. The ring centerline is ~2mm from the ring's mounting face so they usually sit about 2mm closer to the frame than the stock big ring (depends on the stock ring)
• Can be mounted in either the big or small ring position of a double crankset given chainstay clearance in the small ring position.
• Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.


Recommendations

• If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
• Recommend the use of a clutch style rear derailleur for the best chain security.

Related Products

• 6mm bolts
• Tanpan - allows Shimano mountain bike rear derailleurs to be used with Shimano road shifters
• RoadLink - allows for wide range cassettes to be used with Shimano road rear derailleurs

Tech Specs

Weight: 36t • 58g  |  38t • 66g  | 40t • 74g  |  42t • 81g
Material: 7075-T6 aluminum
Made in the USA

Patent and trademark information

Product Images Disclaimer
Product images are for reference only and may not reflect the exact specifications, color, or components of the item offered for sale. Please refer to the product description and specifications for the most accurate details. If you have questions before purchasing, contact us and we’ll be happy to confirm.
