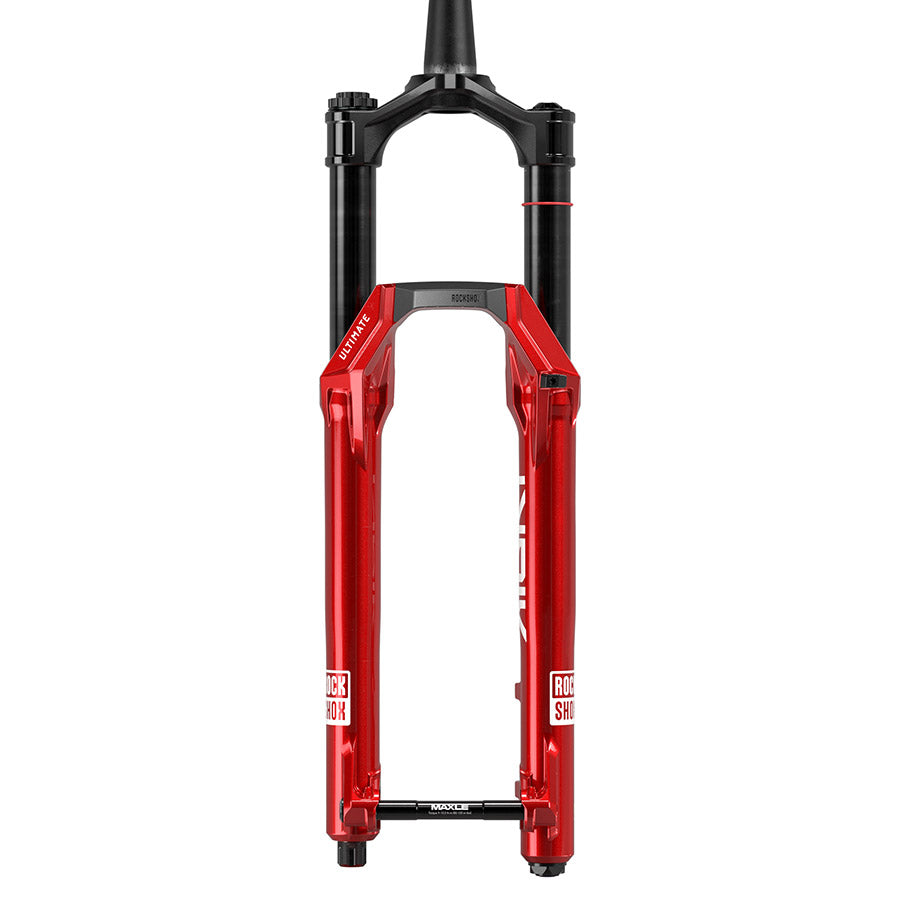

Light where it counts and ruthless on the descents. The LinearXL air spring delivers a coil-like ride—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control. ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction, and maintaining smooth performance throughout the entire service interval. LinearXL air spring backed by Adjustable Bottom Out (ABO) for end-stroke control ButterWagonTech ensures a constant supply of oil to the bushings Charger 3.2 damper achieves virtually silent performance ButterCups technology block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue SRAM Model ID: FS-LYRK-ULT-E1
| Brake Type |
Disc |
| Damping |
Charger 3.2 RC2 W/ButterCups |
| Damping Adjustments |
Extl begin stroke rebnd low speed comp high speed comp |
| Crown Material |
Aluminum |
| Rake |
44mm |
| Maximum Rotor Size |
220mm |
| Maximum Tire Width |
70mm |
| Primary Color |
Red |
| Spring Adjustments |
Air pressure Bottomless tokens |
| Spring Type |
Linear XL W/ButterCup |
| Steerer Tube |
1-1/8-1.5 |
| Steerer Tube Material |
Aluminum |
| Lower Tubes Material |
Magnesium |
| Stanchions Material |
Aluminum |
| Travel |
160mm |
| Wheel Diameter |
27.5 |
| Stanchions Diameter |
35mm |
| Axle/Hub spacing |
15x110mm TA |
| e-Bike approved |
Yes |
