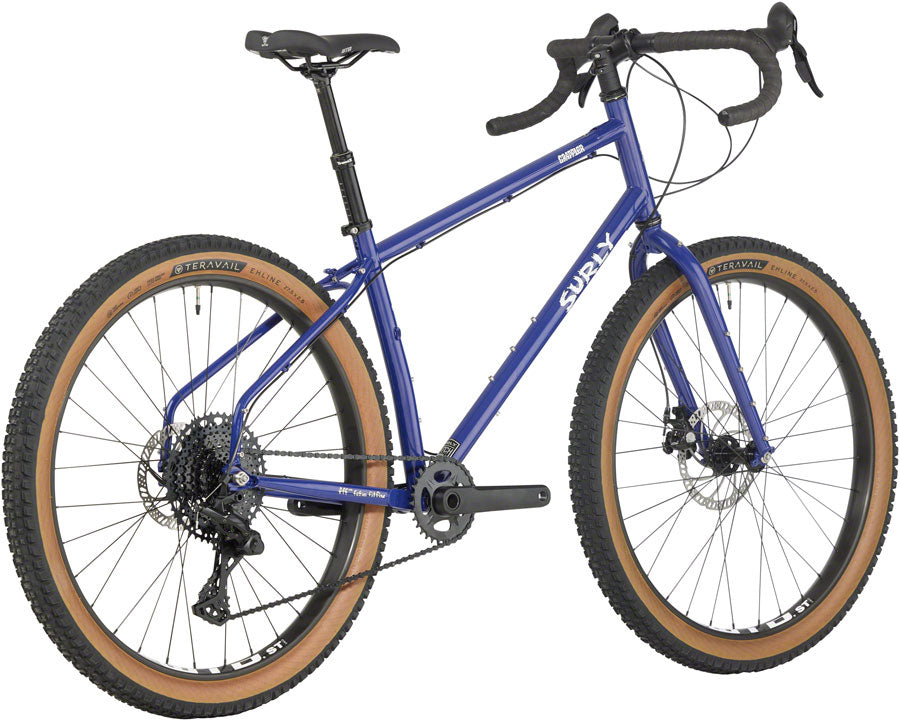

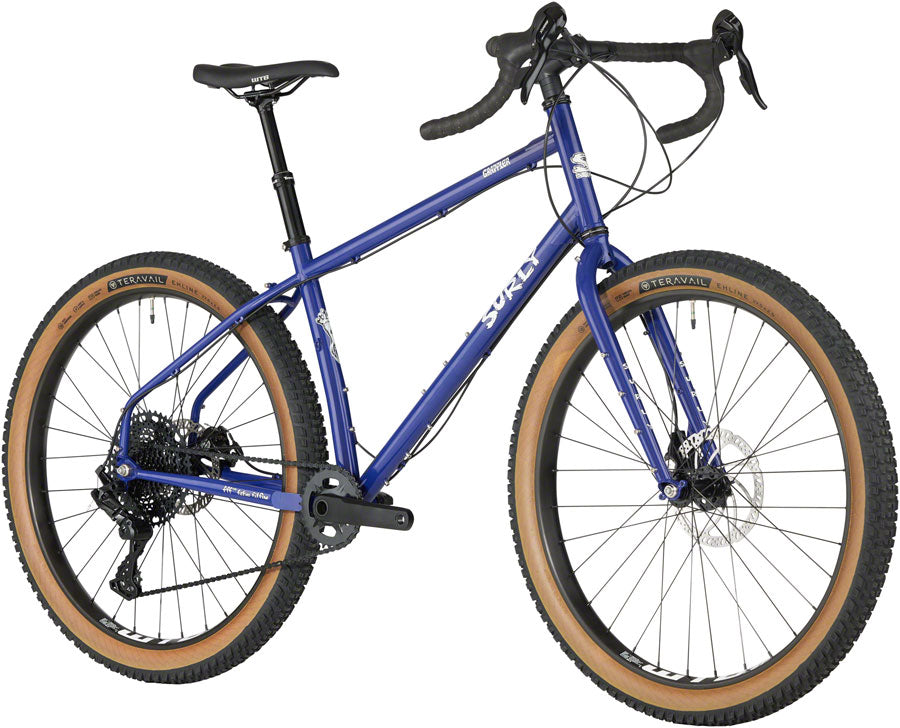

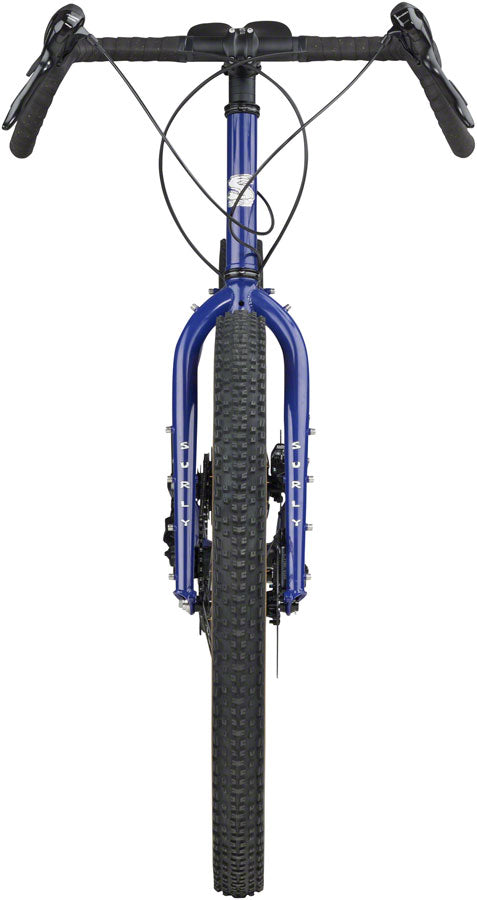

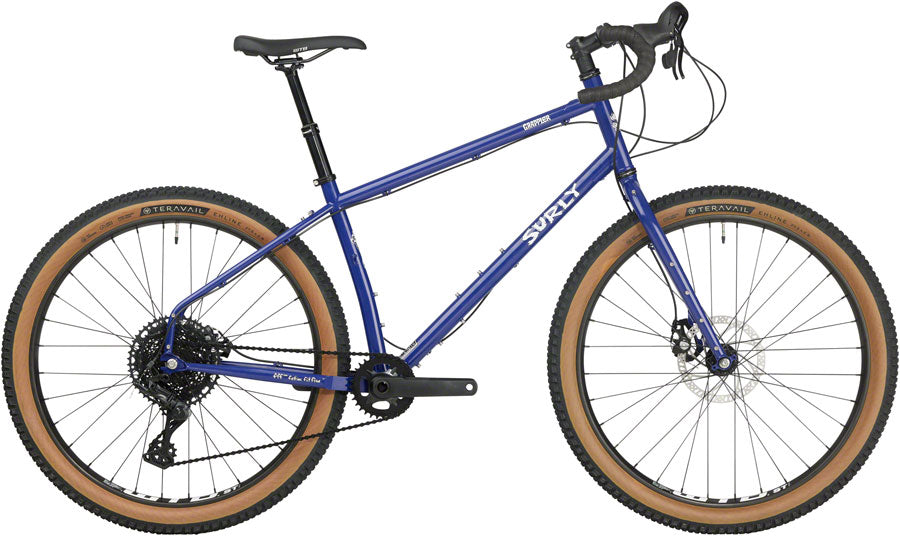

Surly Grappler Bike - 27.5 Steel Subterranean Homesick Blue Small

$1,649.00
$1,649.00
$1,899.00

Questions about sizing, geometry, or custom builds? Give us a call (831) 215-1784

SKU: BK00294

Expected Ship Date: Wed Sep 23
30-Day Hassle-Free Returns

End of Summer Sale

Save during our End of Summer Sale. Your discount will be applied automatically at checkout.

Bike Returns & Exchanges: We offer returns and exchanges on bikes. Customers are responsible for return shipping, but we do not charge a restocking fee.
Description
Surly Grappler Bike - 27.5 Steel Subterranean Homesick Blue Small. The Grappler is Surly’s dedicated drop-bar trail bike. With mountain geo designed around a comfortable confident drop-bar hand position it’s lively and responsive on single track double track and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions thru-axles front and rear provide ideal stiffness and handling. Built around 27.5” wheels and compatible with internally geared hub and single-speed setups Surly’s tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.100% Surly Chromoly steel frame and fork featuring Surly’s proprietary ’Natch tubing double-butted main triangle 1-1/8” headtube non-suspension correctedHorizontal-slotted dropout Surly Gnot-Boost spacingSeatstay-mounted bottle bosses plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routingE.D. coated frame for increased life expectancy27.5 x 2.8” tire clearance (with or without fenders)
  • TECH SPECS
Color Subterranean Homesick Blue
Mfg Size Small
Rear Axle 12mm Thru x 145mm
Platform Grappler
TT (Effective) 590
Brake Type Disc
Wheel Size 27.5"
Fork Type Rigid
Fork Material Steel
Frame Material Steel
Frame Type Rigid
Defined Color Blue
Front Axle 15mm Thru x 110mm

Build Kit

Specifications subject to change without notice.

Frameset

Frame Surly Grappler - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Color Subterranean Homesick Blue
Fork Surly Dinner Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Headset Cane Creek 40
Seatpost Clamp Surly Stainless 33.1
Seatpost TranzX YSP15 Dropper 360mm, 100mm travel
Stem Promax DA-296, 31.8mm
Grips/Bar Tape Black Cork
Saddle WTB Volt 142
Handlebar Salsa Cowchipper 31.8

Drivetrain & Brakes

Rear Derailleur microSHIFT M6205
Cassette microSHIFT 11–48t
Chain KMC X10 Black
Crankset Samox BSA 2PCS Boost 32t
Shifter microSHIFT SB-M100A, AdventX Dual Control Levers
Brake Levers microSHIFT SB-M100A, AdventX Dual Control Levers
Brake Calipers Tektro Mira
Bottom Bracket Samox BSA
Rotors Tektro — Front: 180mm, Rear: 160mm

Wheels & Tires

Front Tire Teravail Ehline, 27.5 x 2.5", 60tpi
Rear Tire Teravail Ehline, 27.5 x 2.5", 60tpi
Front Hub Novatec 15 x 110mm, 6-bolt, 32h
Rear Hub Novatec 12 x 148mm, 6-bolt, 32h
Rim WTB ST i40 TCS
