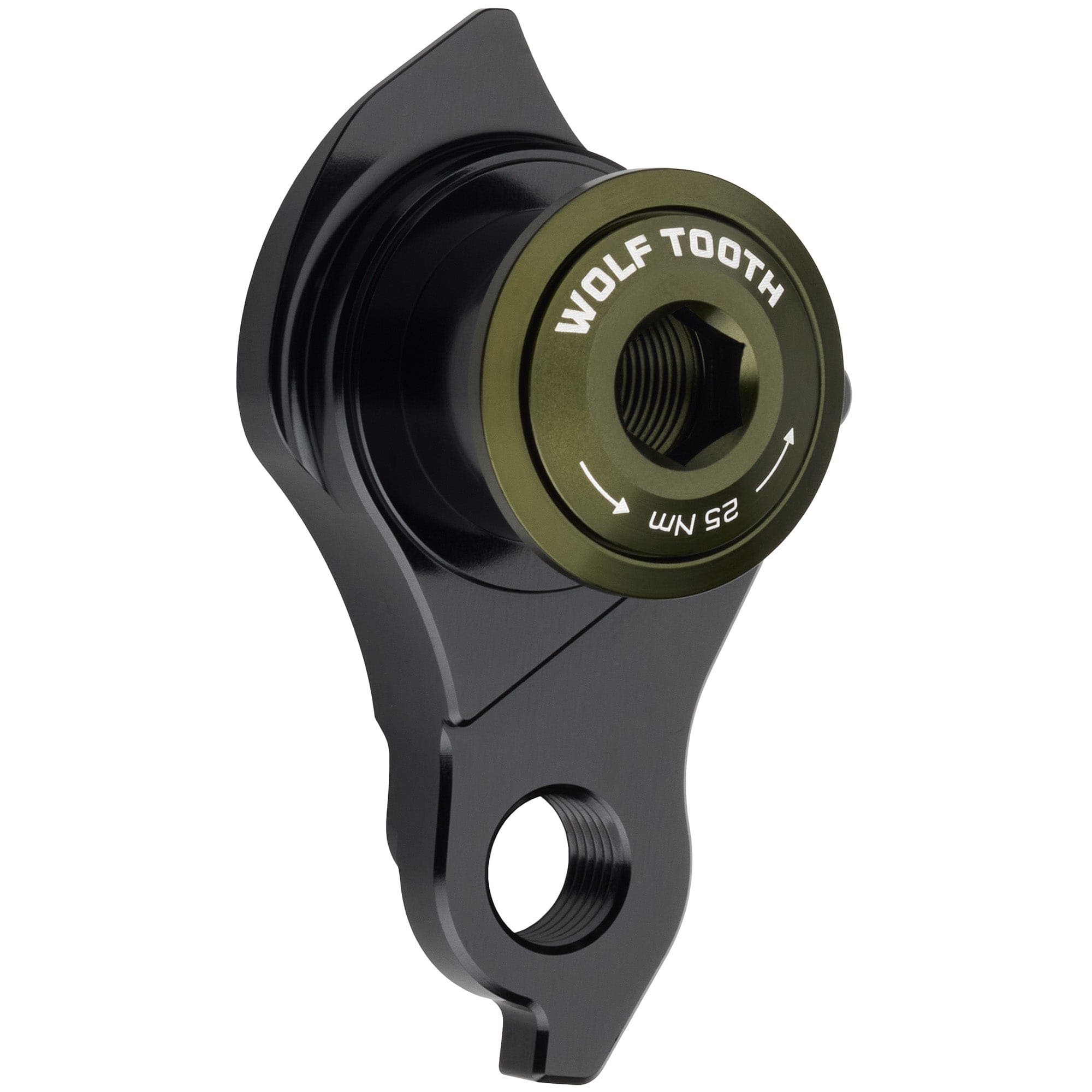

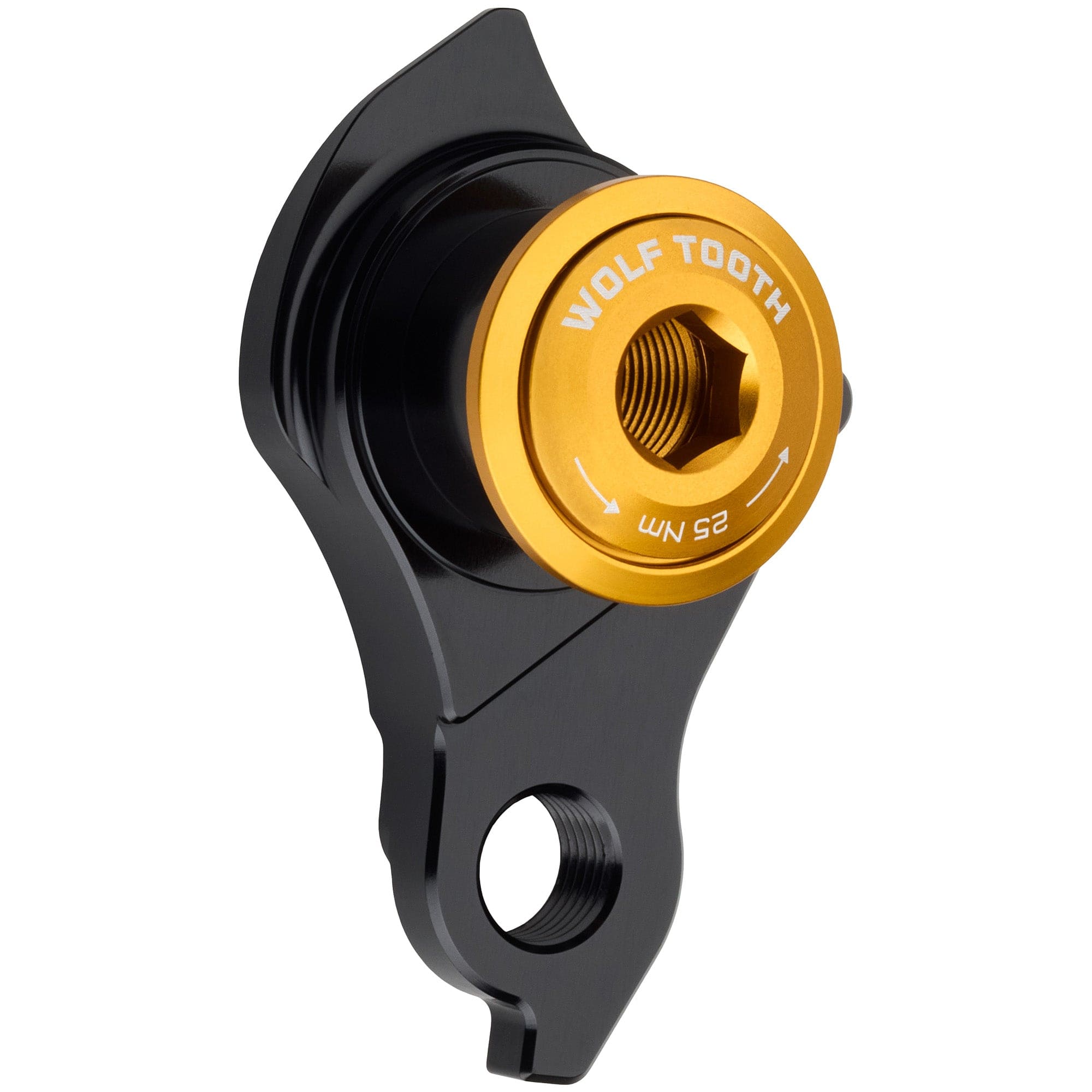

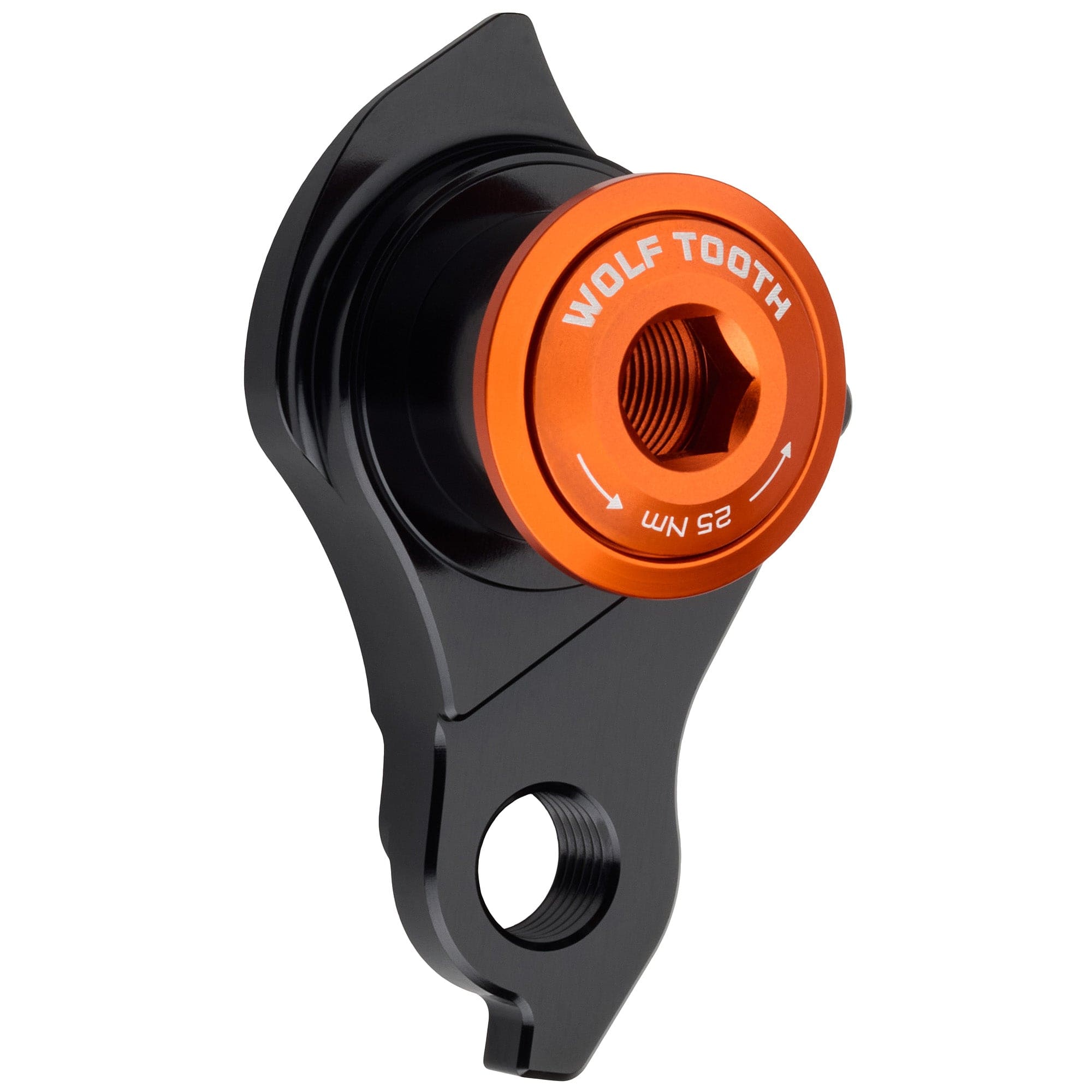

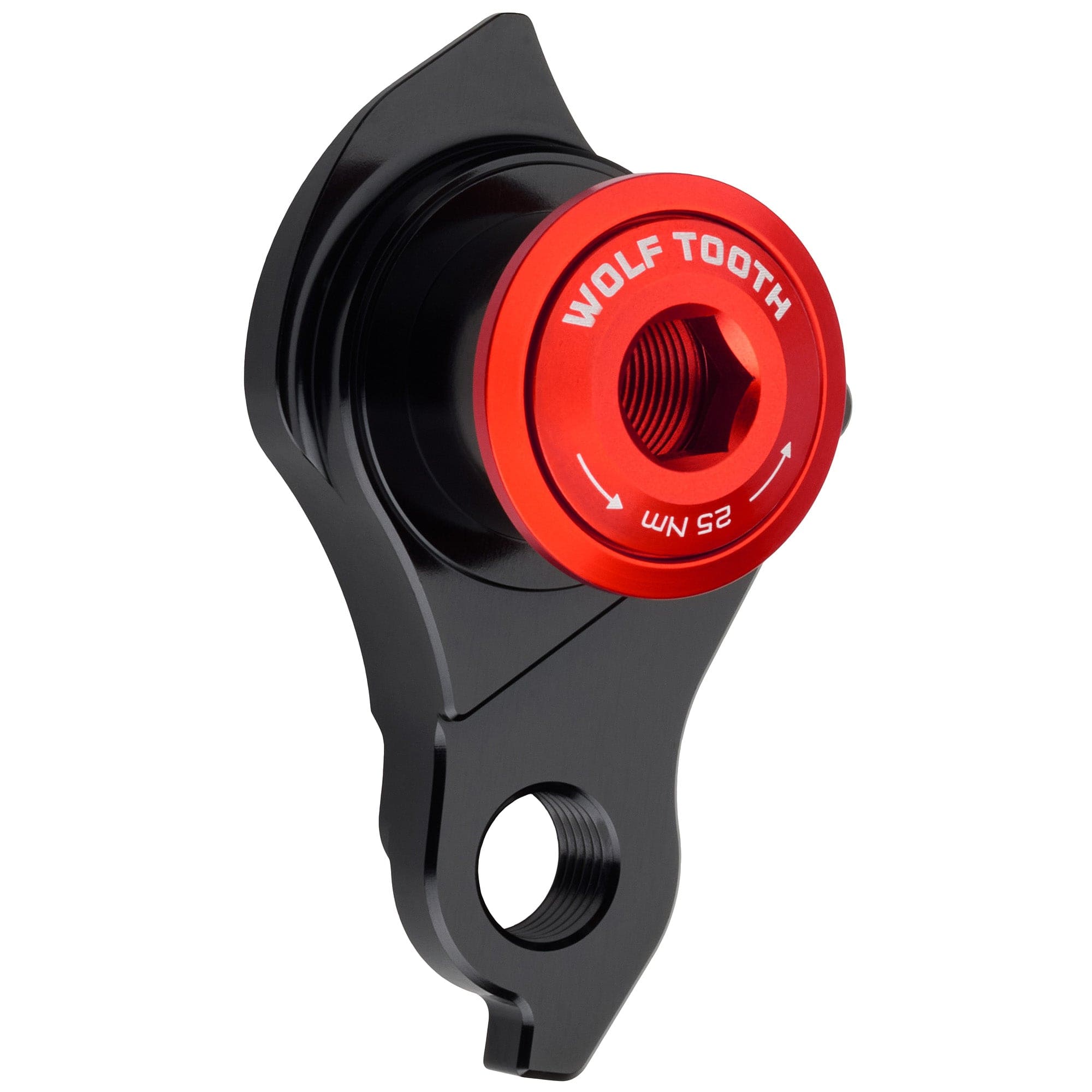

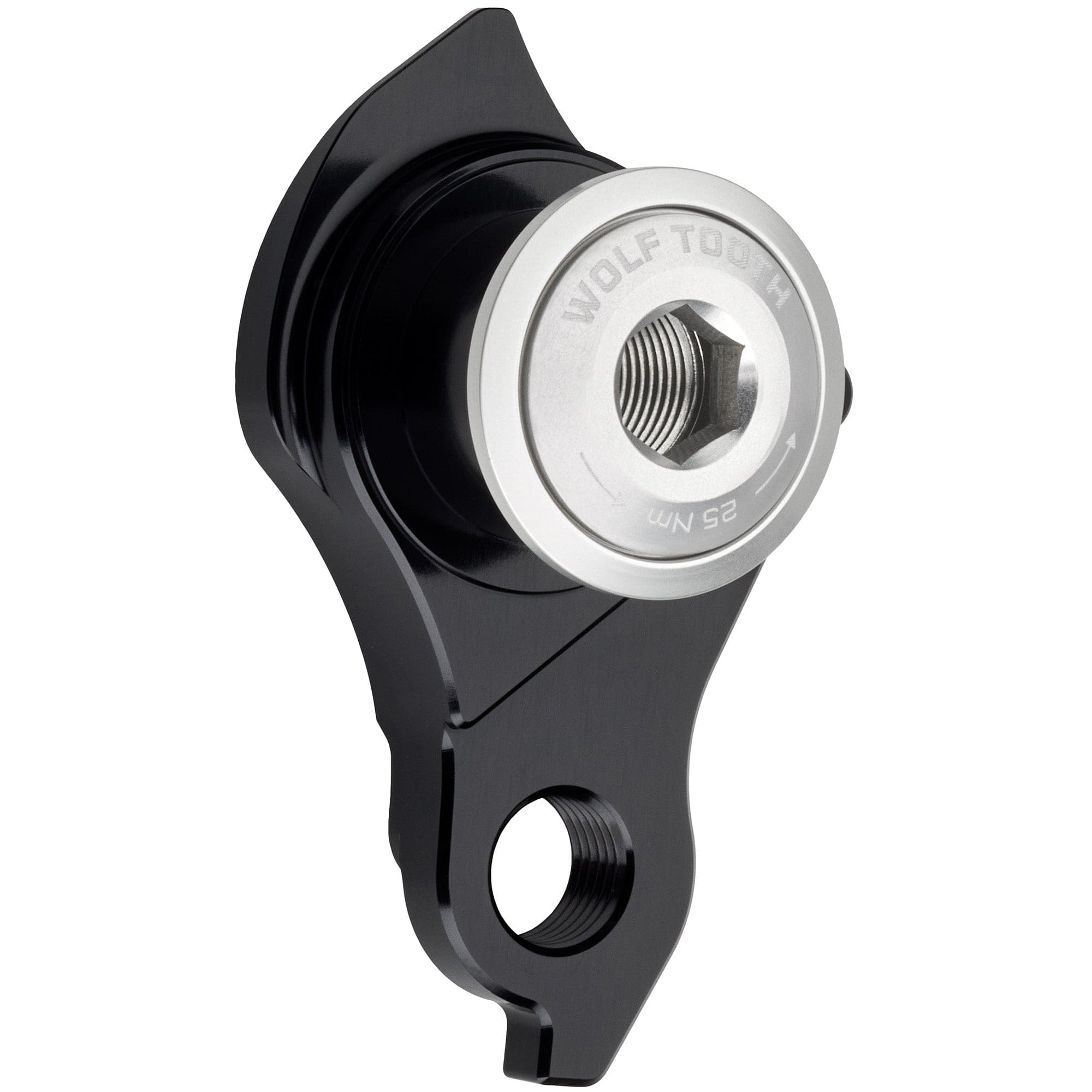

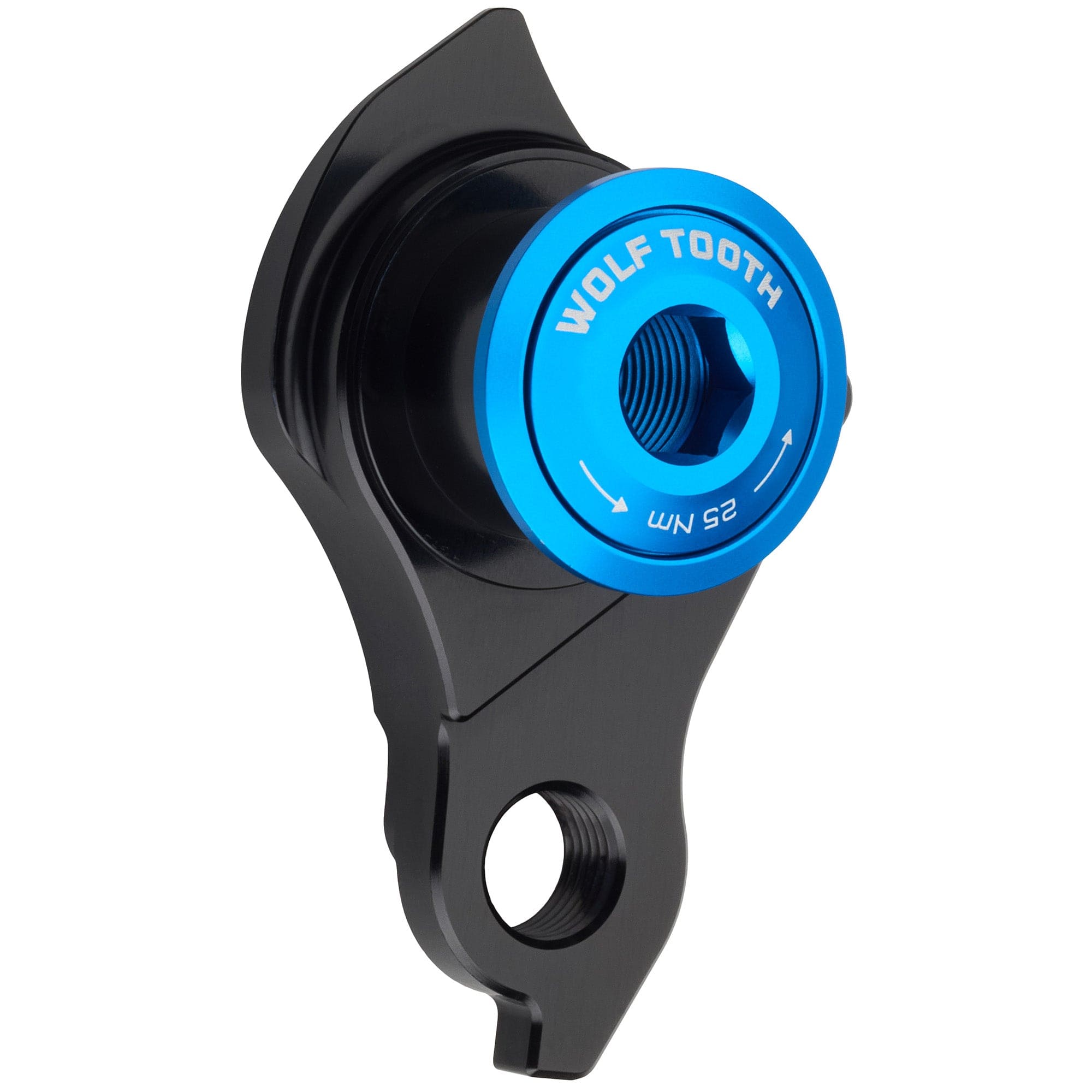

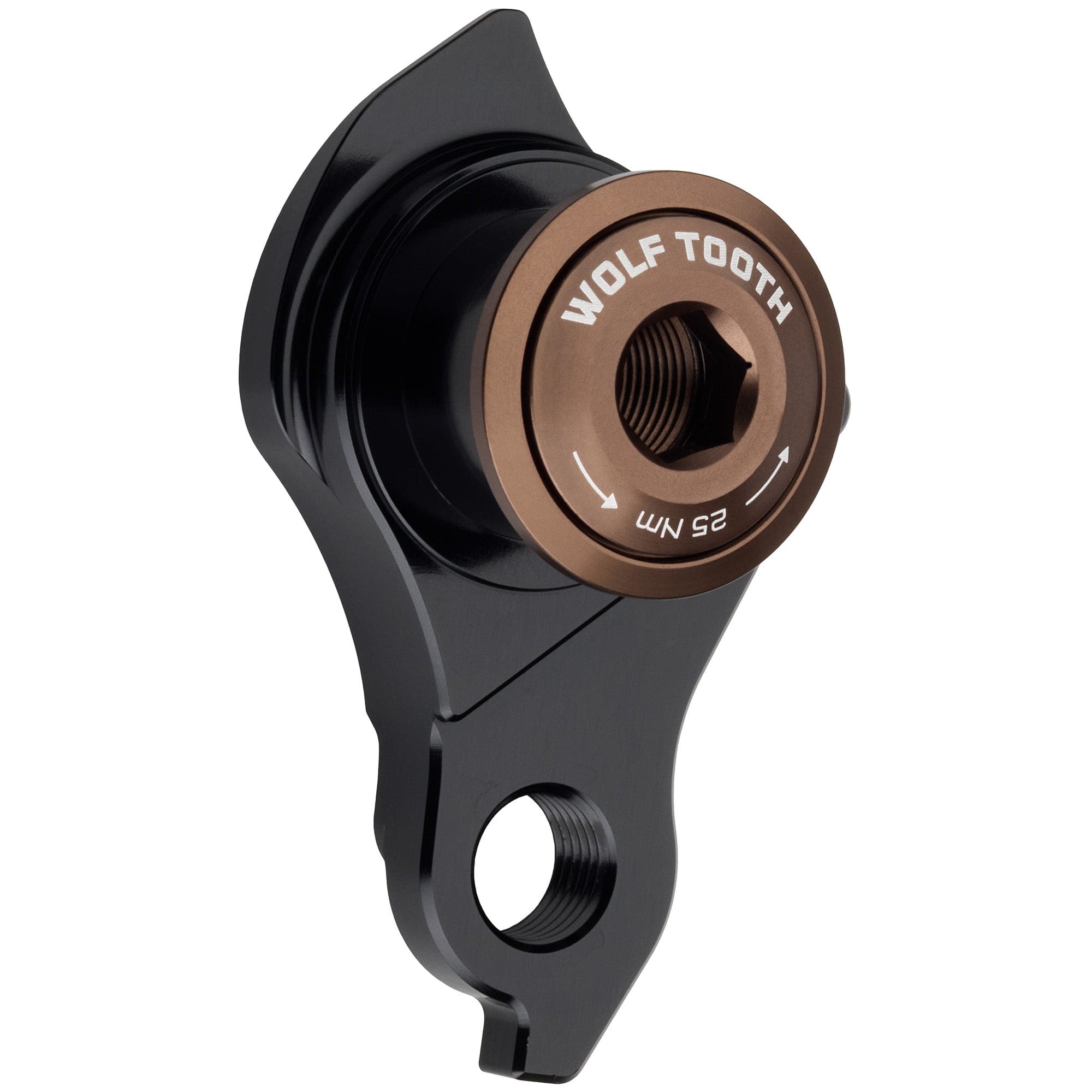

Designed to simplify thousands of derailleur hangers into one universal design, the Wolf Tooth Universal Derailleur Hanger - UDH connects your derailleur to your frame. It's compatible with all frames designed around the SRAM UDH, and is compatible in mounting all standard (non-Full Mount) derailleurs from SRAM, Shimano, Campagnolo, TRP, etc. The benefits of a UDH include increased shifting precision and stronger construction than standard derailleur hangers. The Wolf Tooth Universal Derailleur Hanger – UDH is an aftermarket component designed to replace the stock UDH that is included with your frame. Bolts and washers are available in nine Color Shop hues to match other Wolf Tooth anodized components and accessories.
- Full CNC aluminum construction
- Designed to rotate back in the event of a crash to help prevent damage to the derailleur or frame
Compatibility Info
- Compatible with bike frames designed to accept the SRAM Universal Derailleur Hanger - UDH
- Compatible with all road, gravel, MTB and EMTB drivetrains (except SRAM Full Mount Transmission, which does not use a hanger)
- Meets requirements for Shimano XTR Di2 M9200 due to the all metal construction.
- For Axle Thread Pitch M12x1.0
-
Rear axle not included
- NOT compatible with ABP equipped Trek bike models

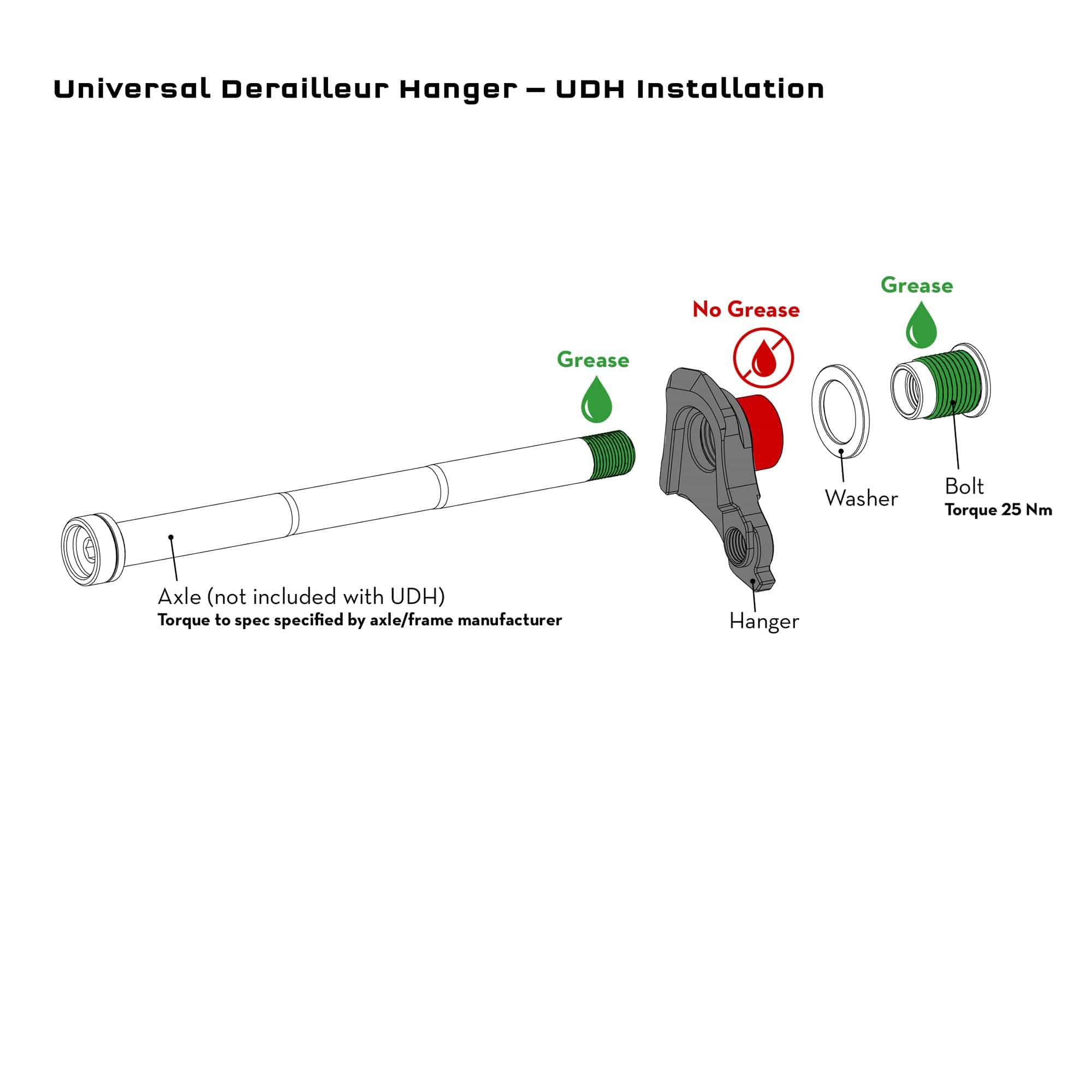

Installation
-
Grease bolt and axle threads
-
Do not grease hanger barrel
- Torque UDH 8mm Hex bolt to 25 Nm
- Torque rear axle (not included) to spec recommended by axle / frame manufacturer
Tech Specs
Weight: 32g
Compatibility: Replaces stock universal derailleur hanger

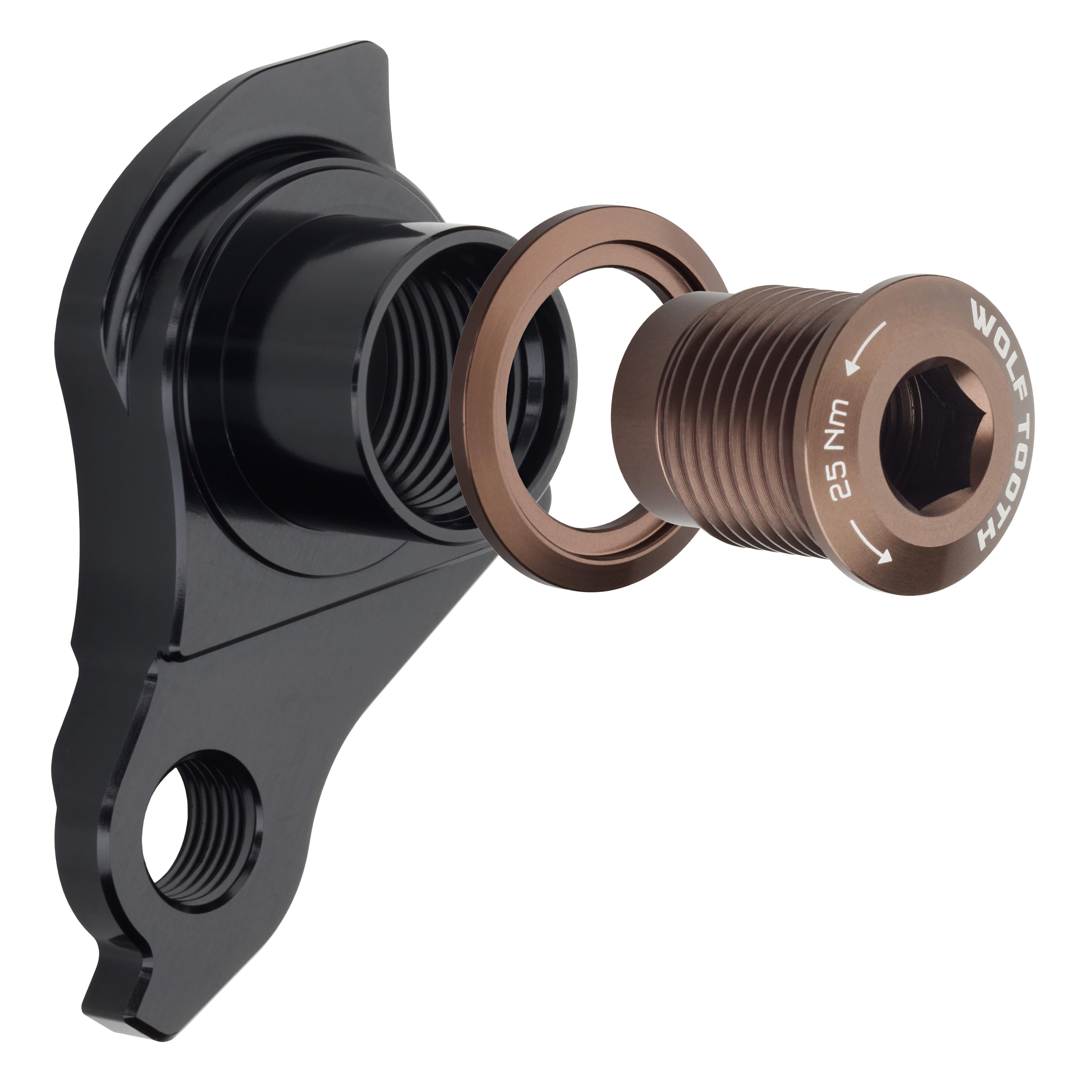

Material: Hanger • 6061-T6 aluminum | Washer and bolt • 7075-T6 aluminum
