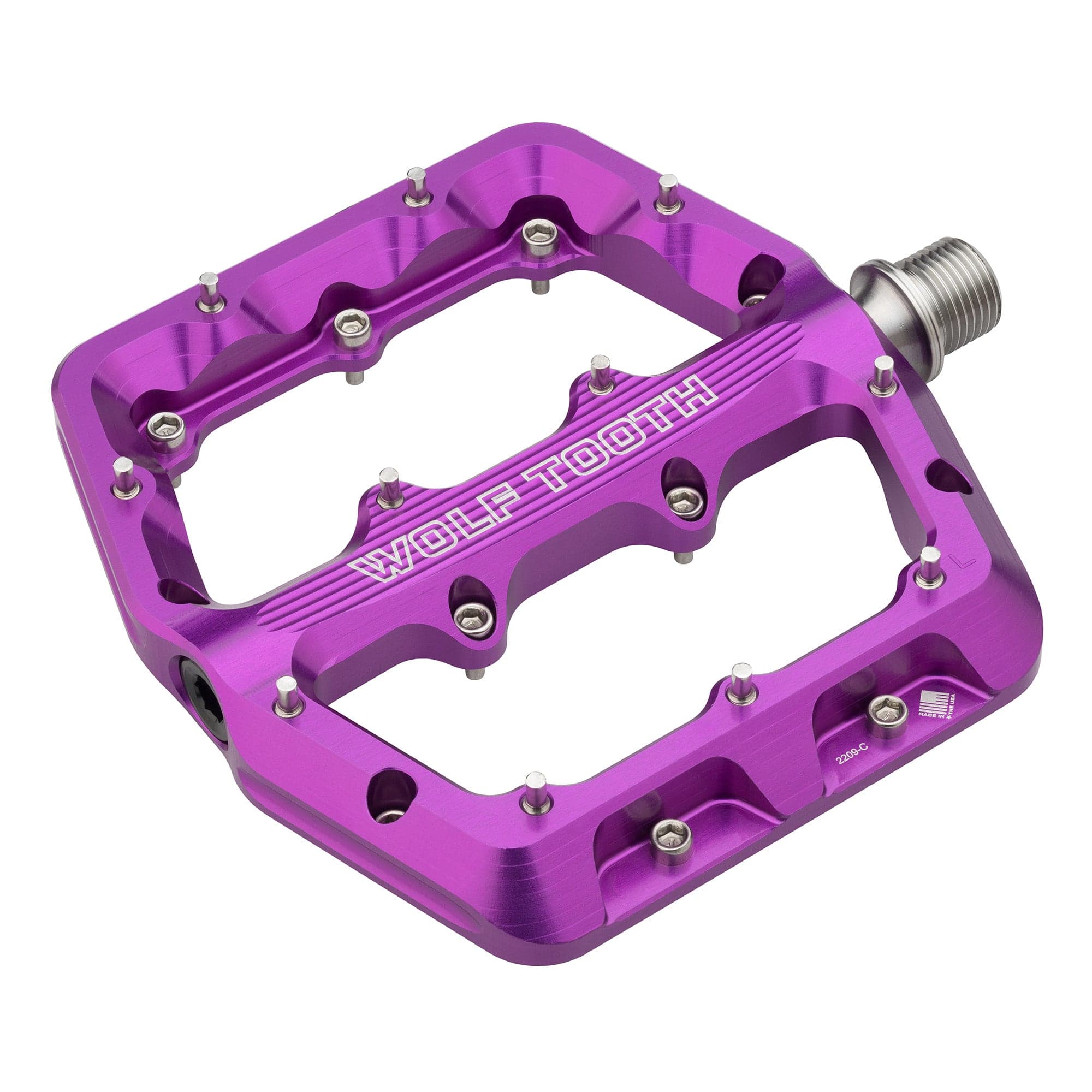

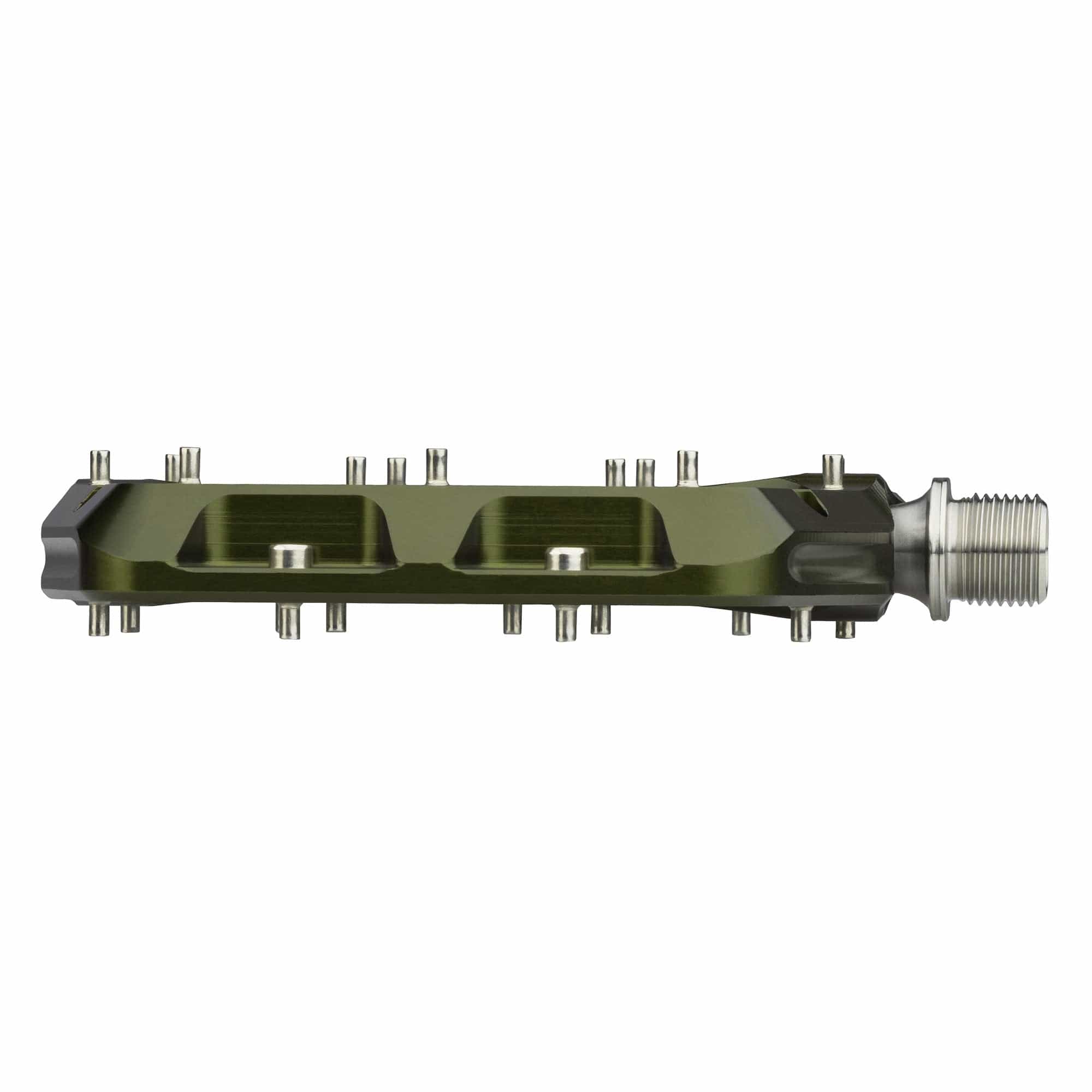

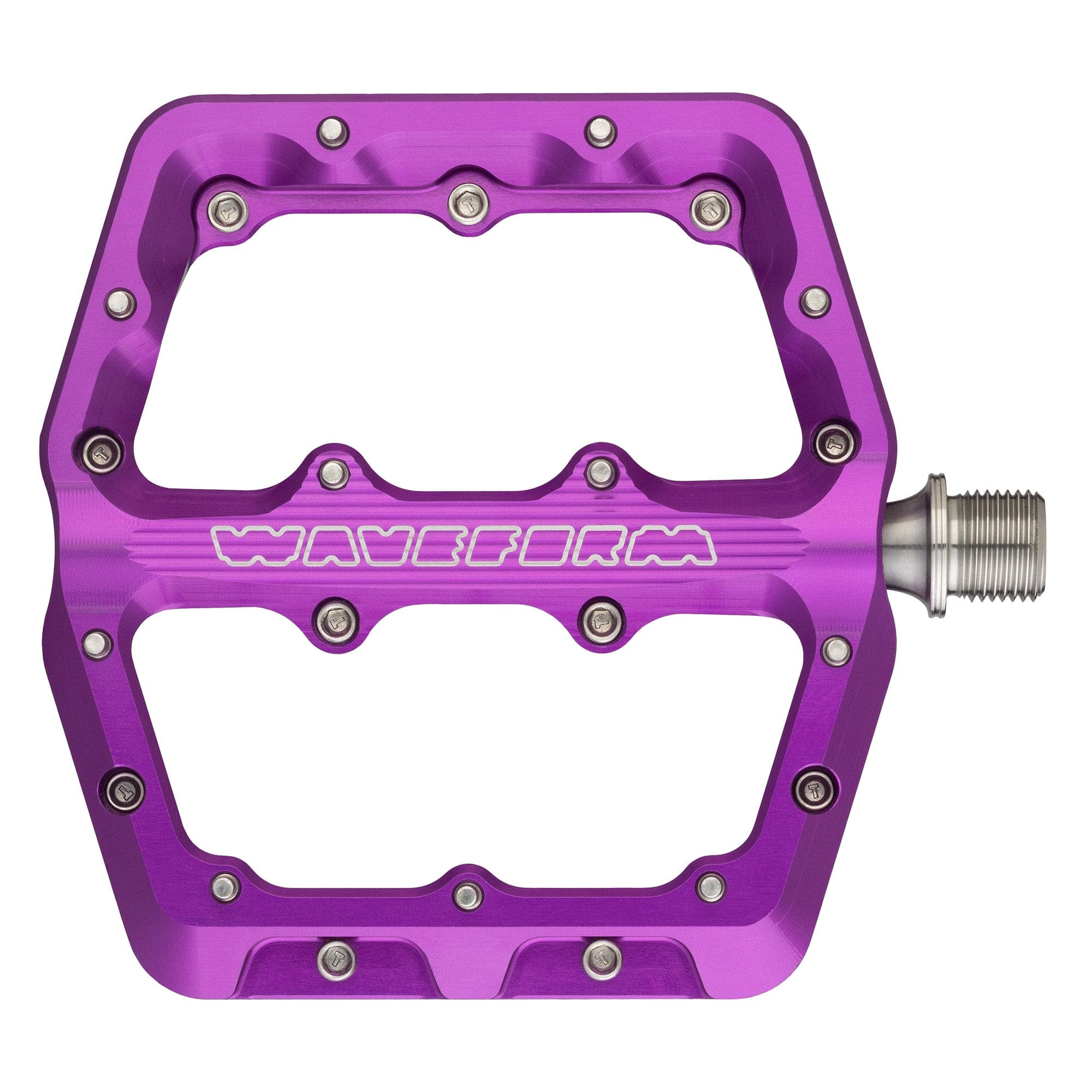

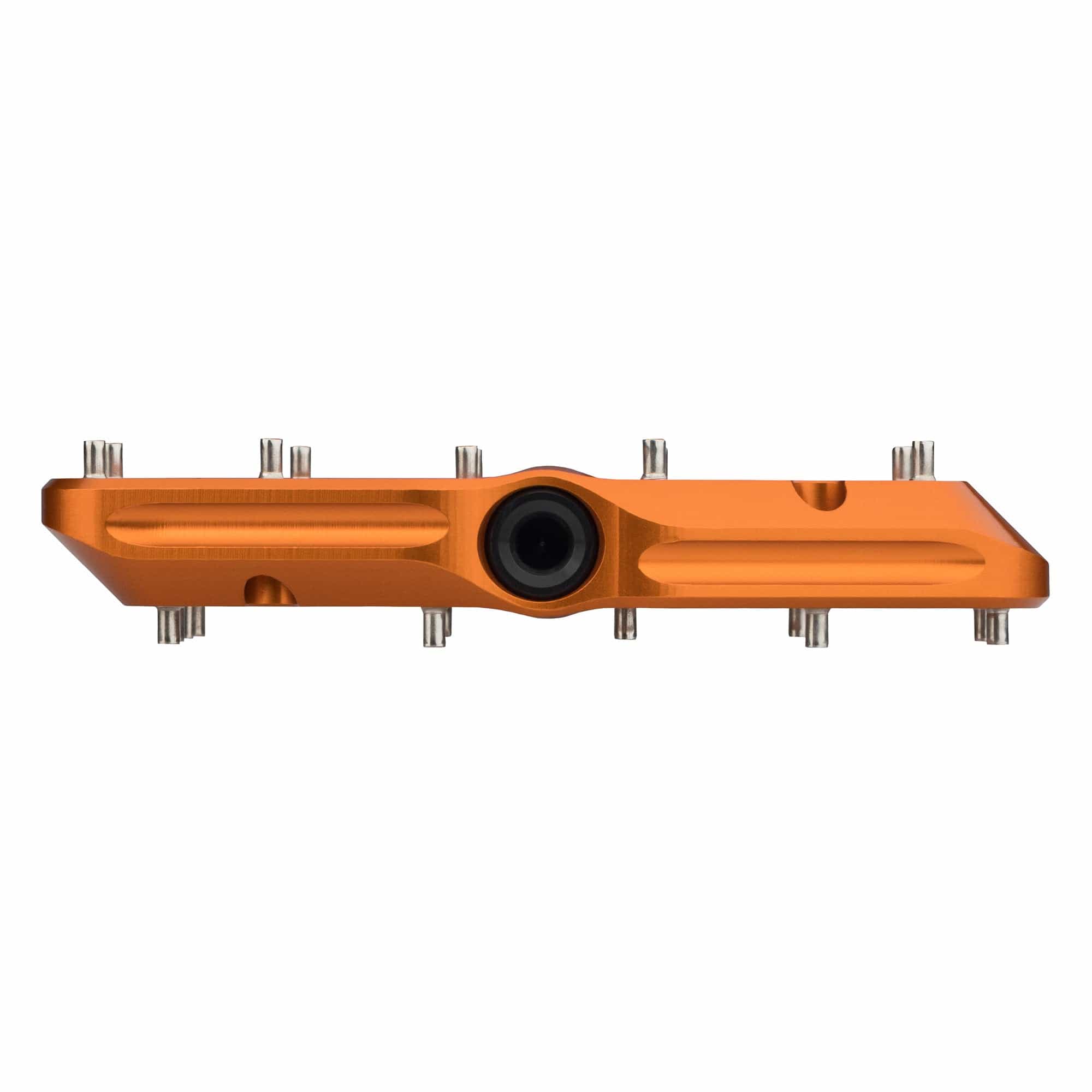

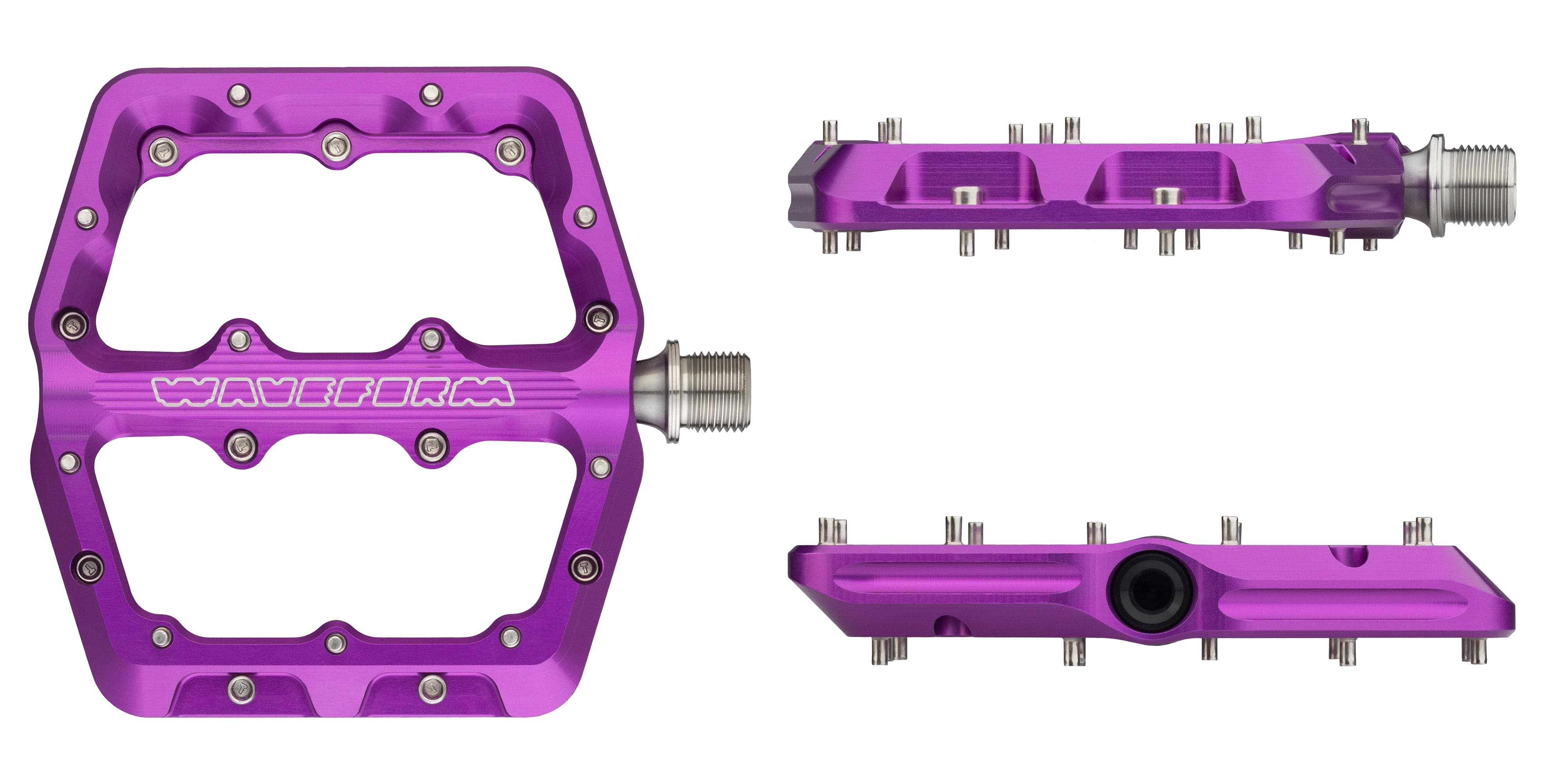

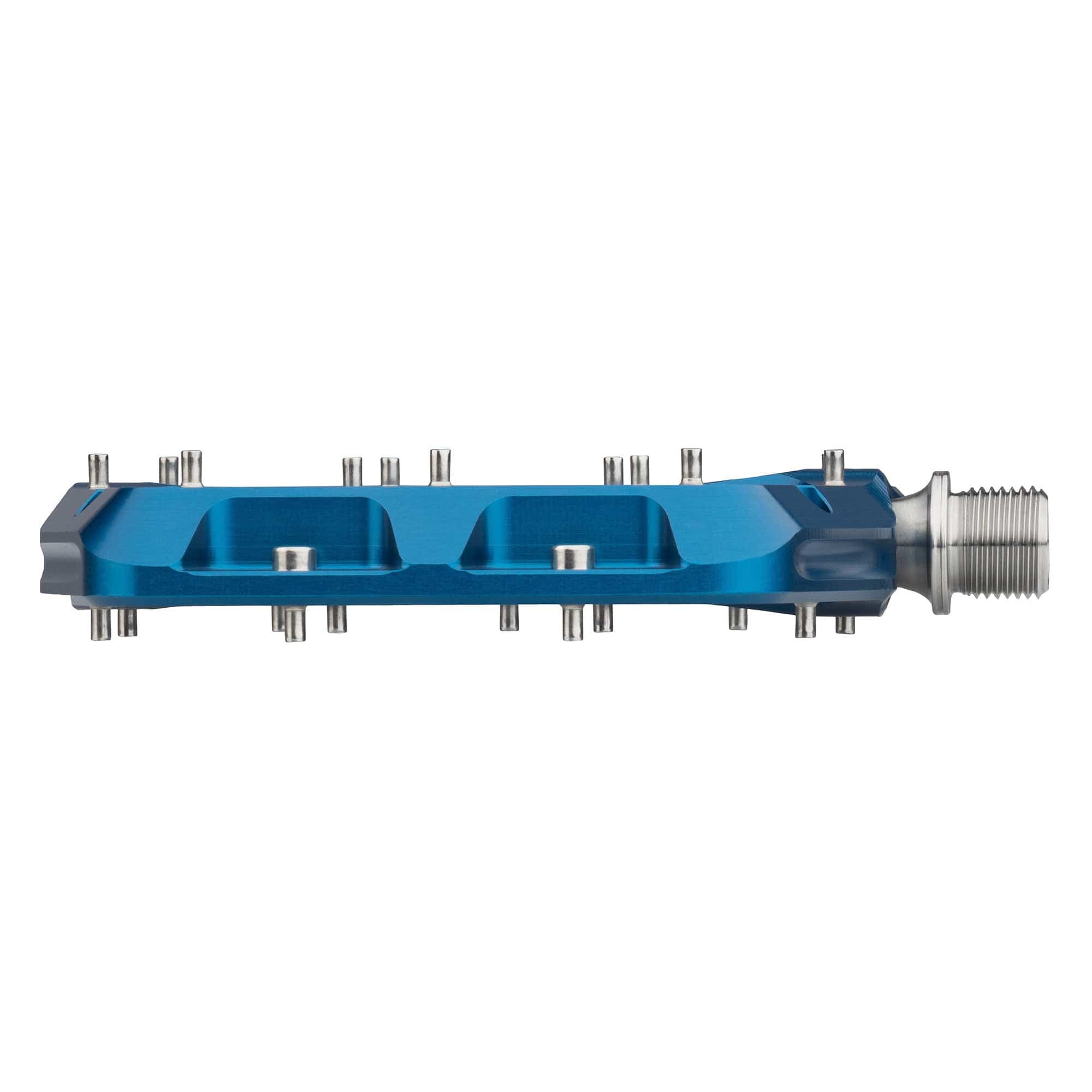

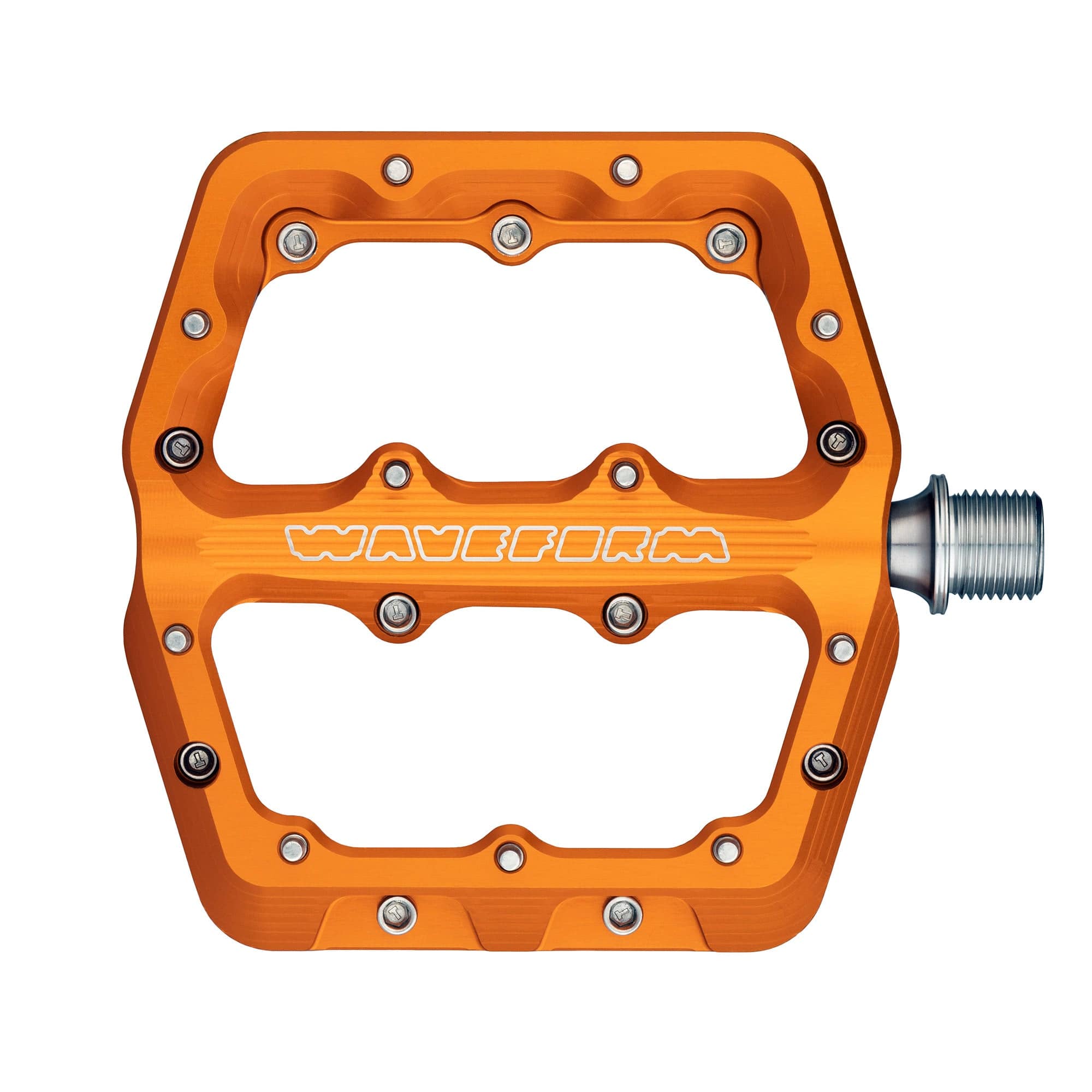

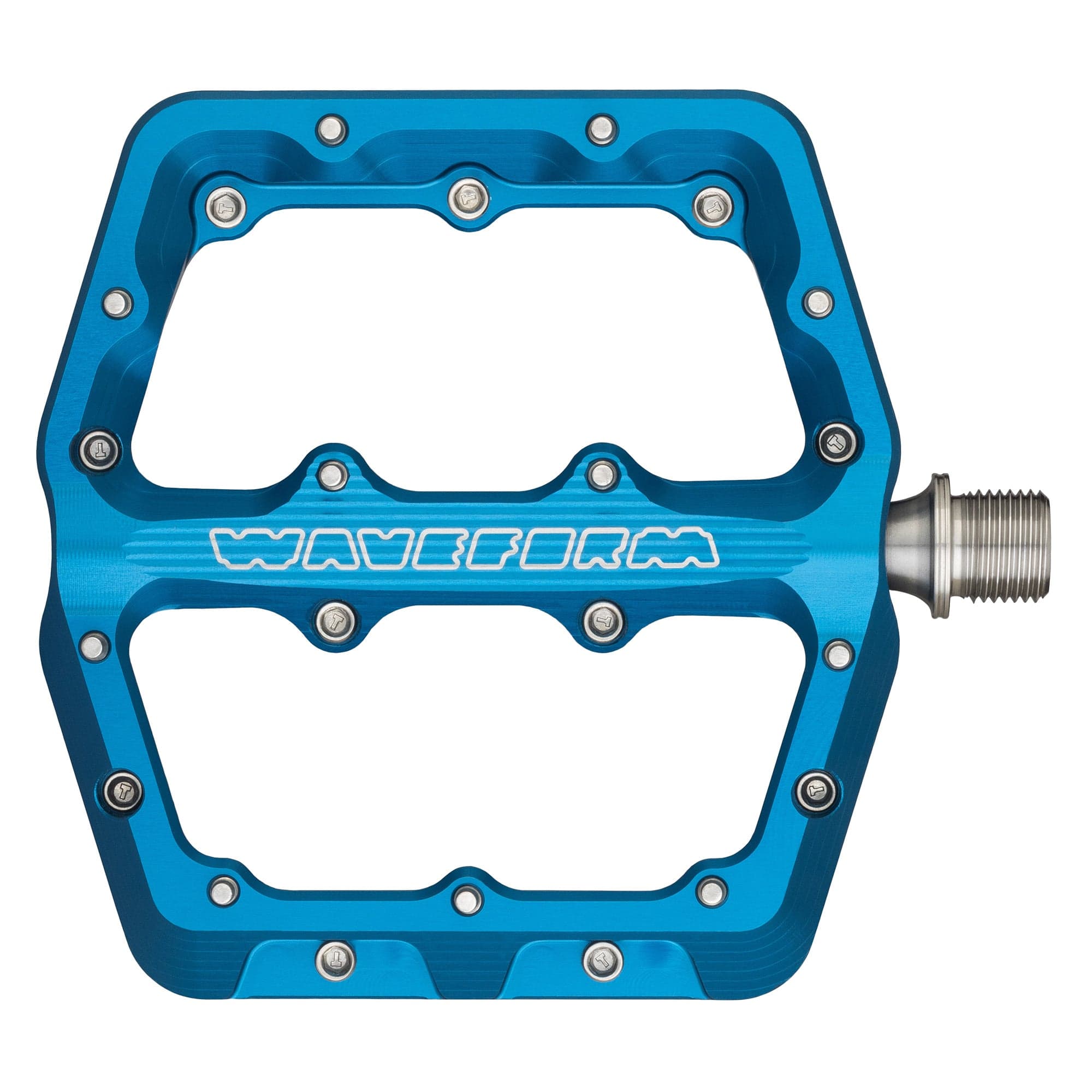

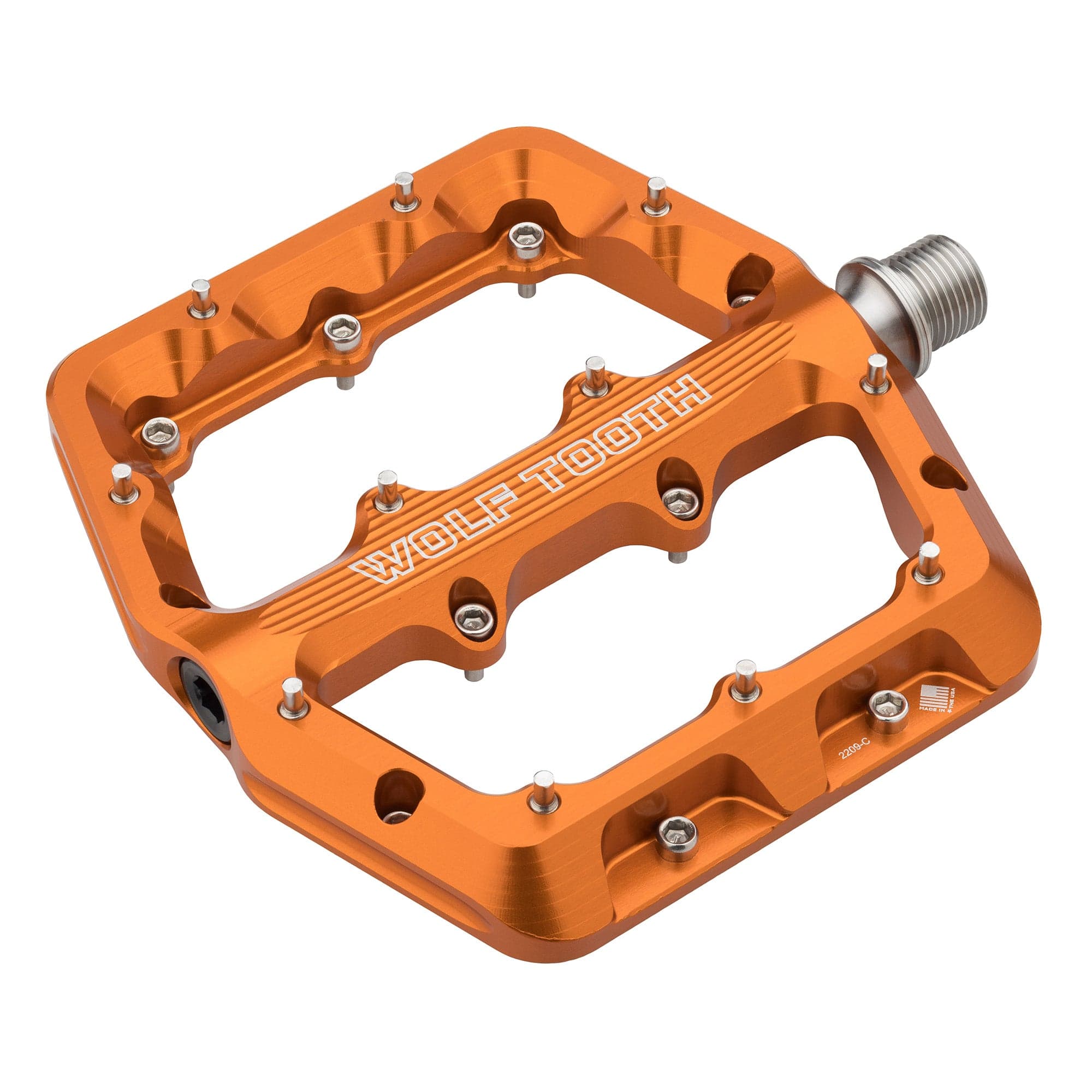

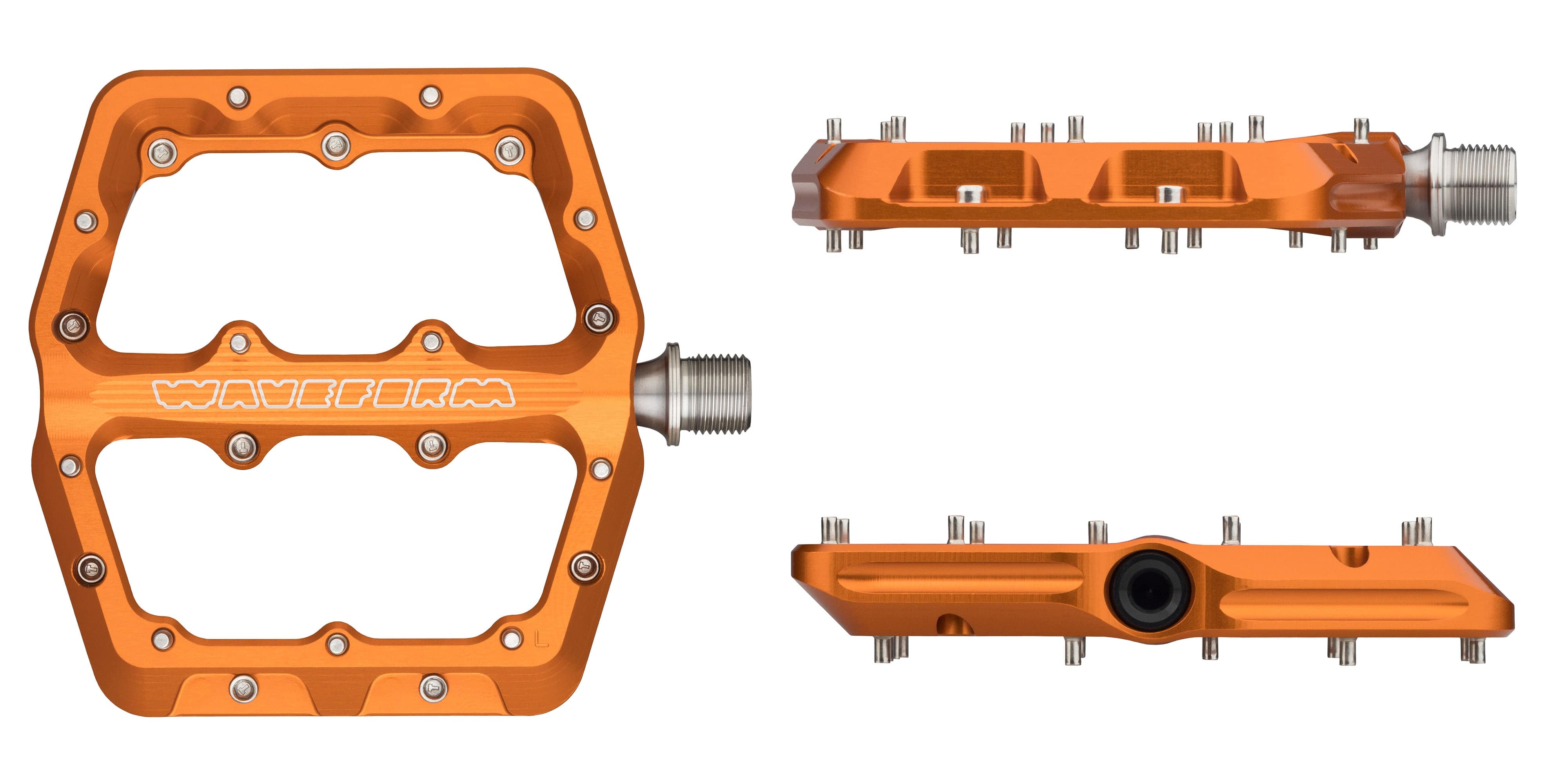

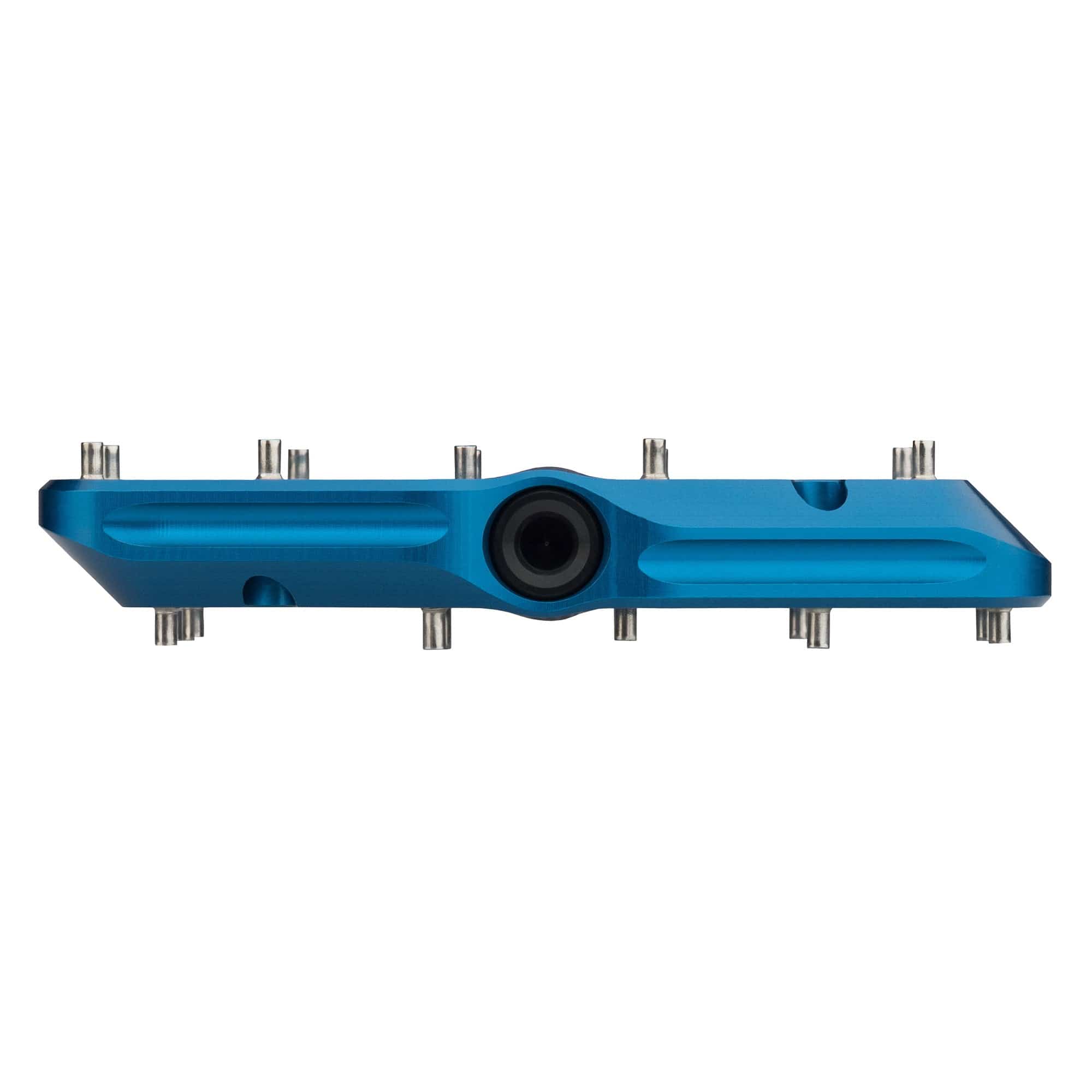

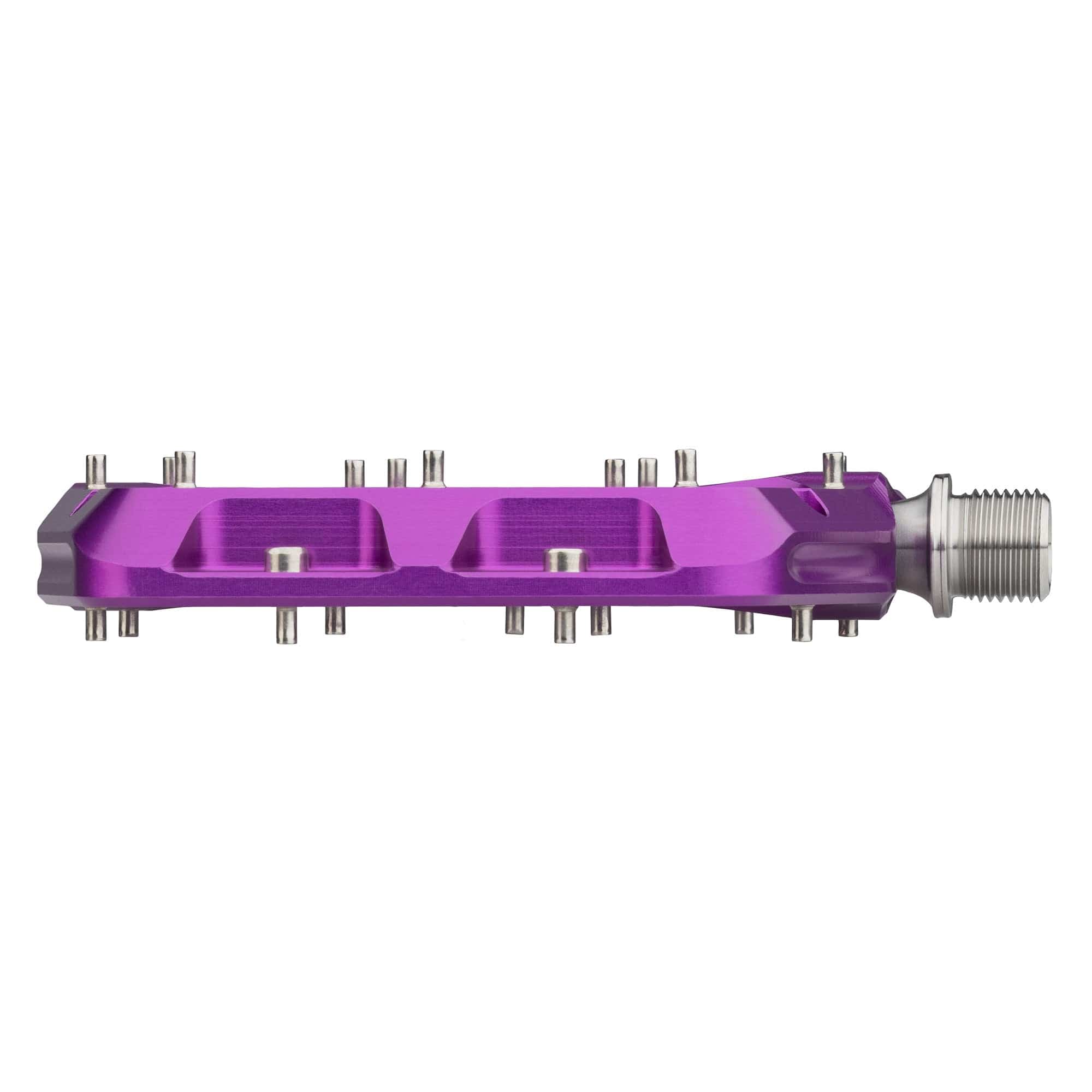

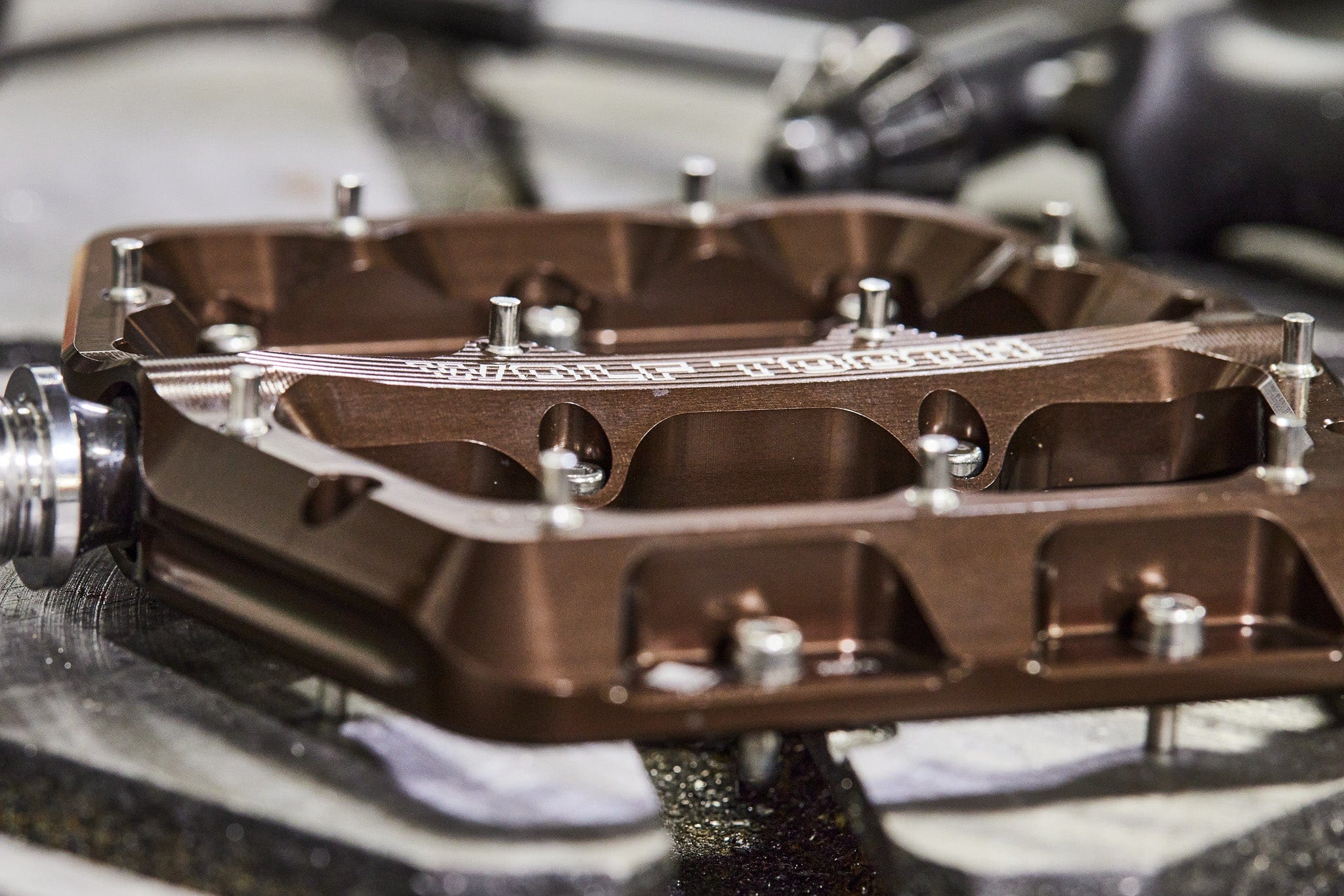

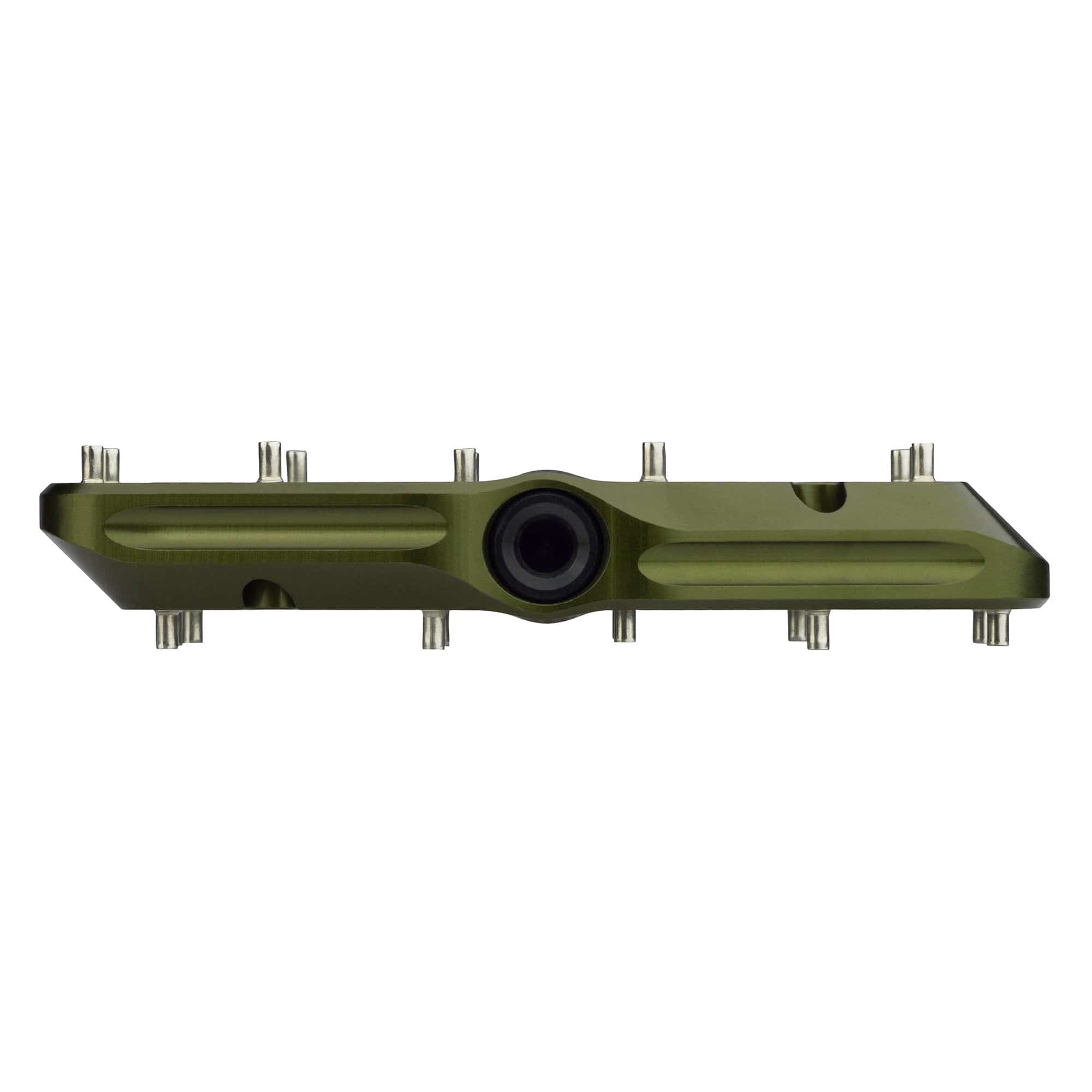

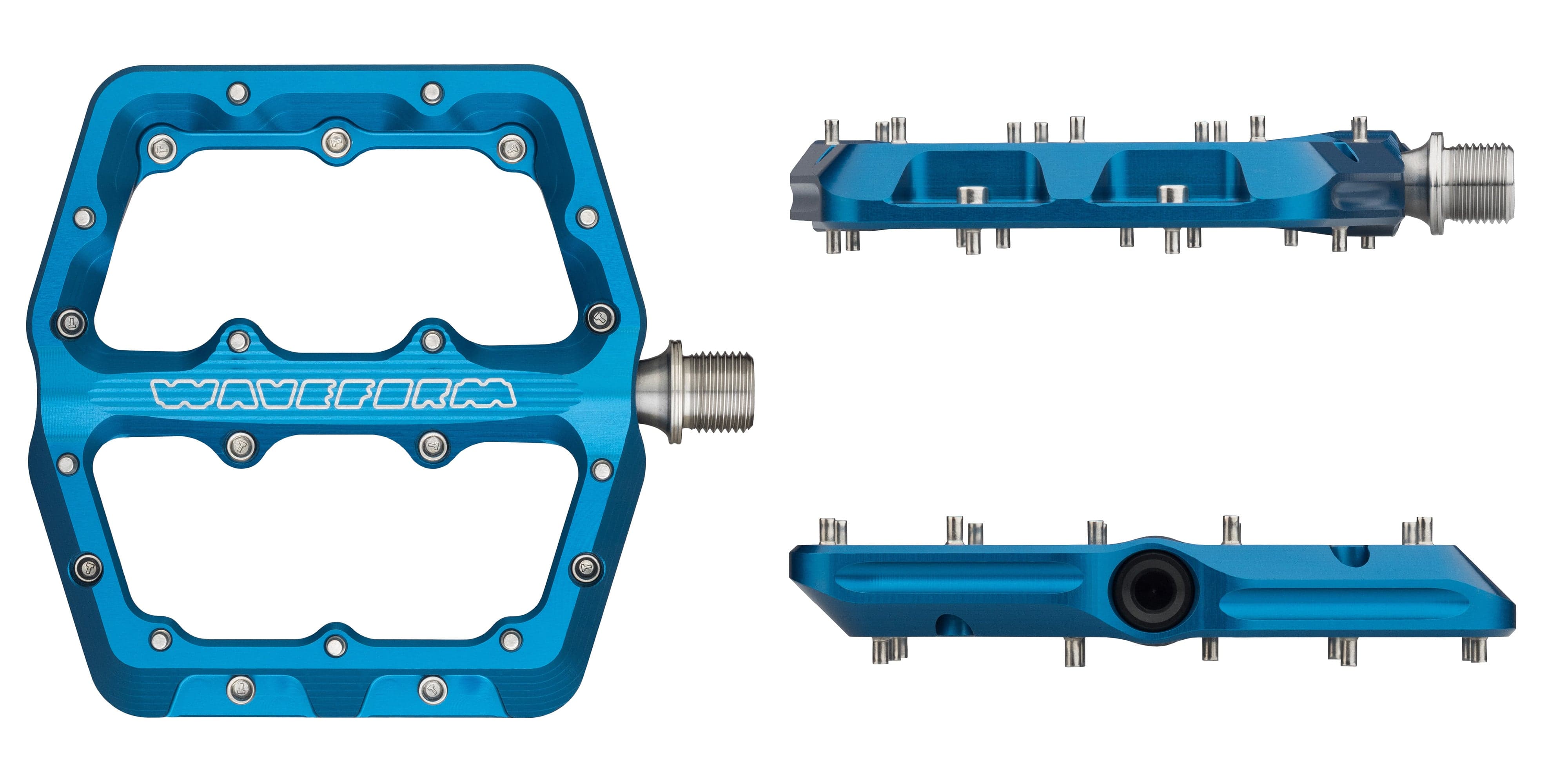

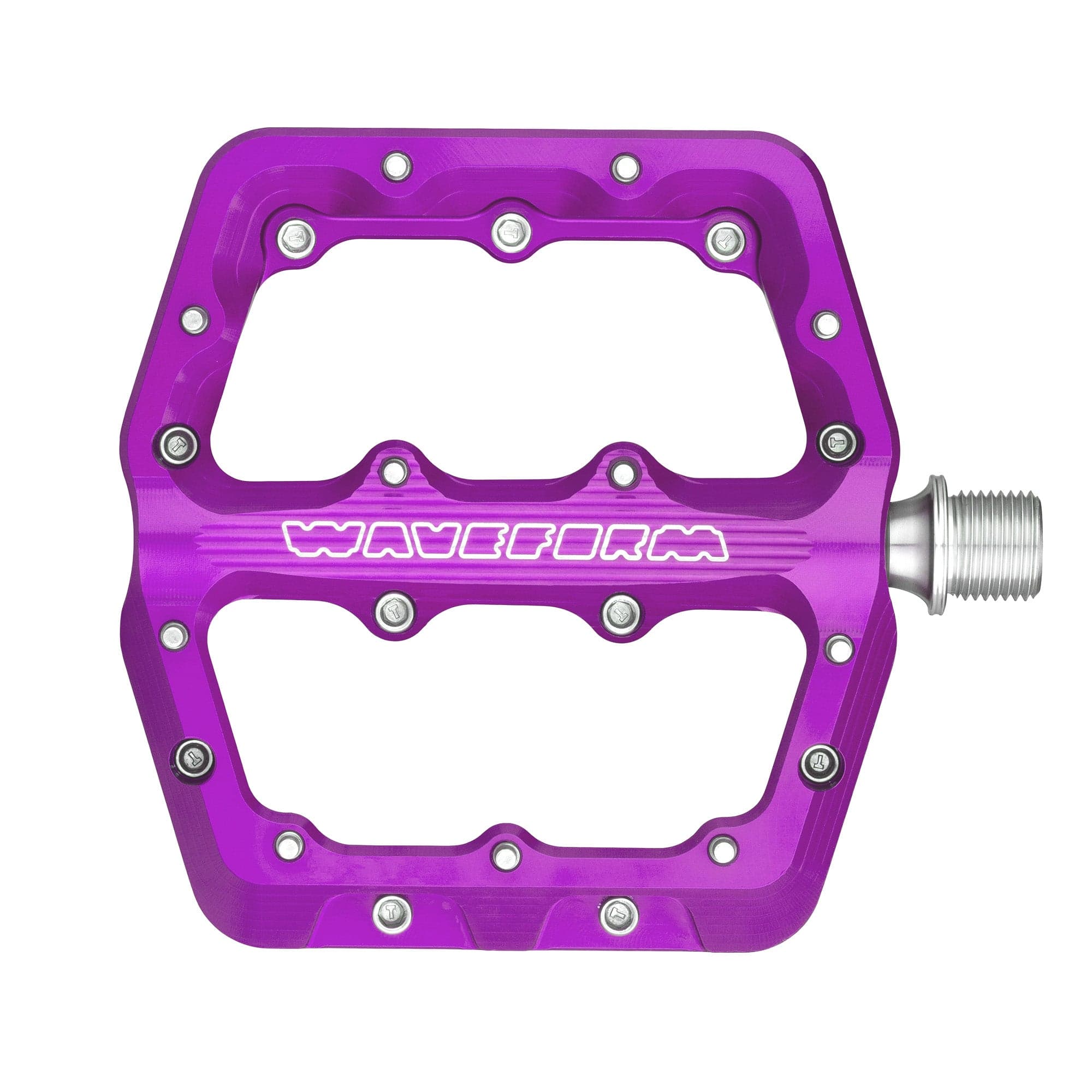

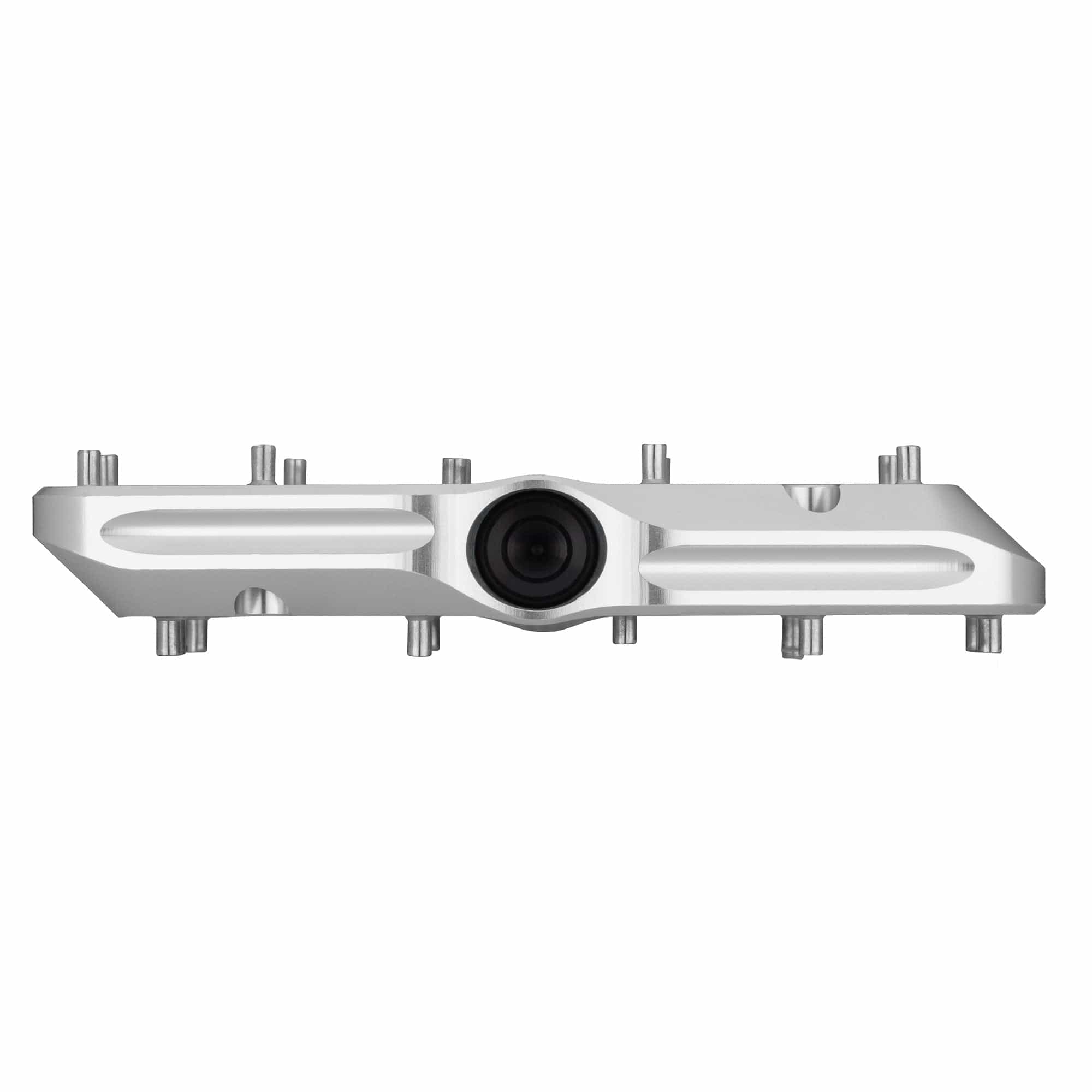

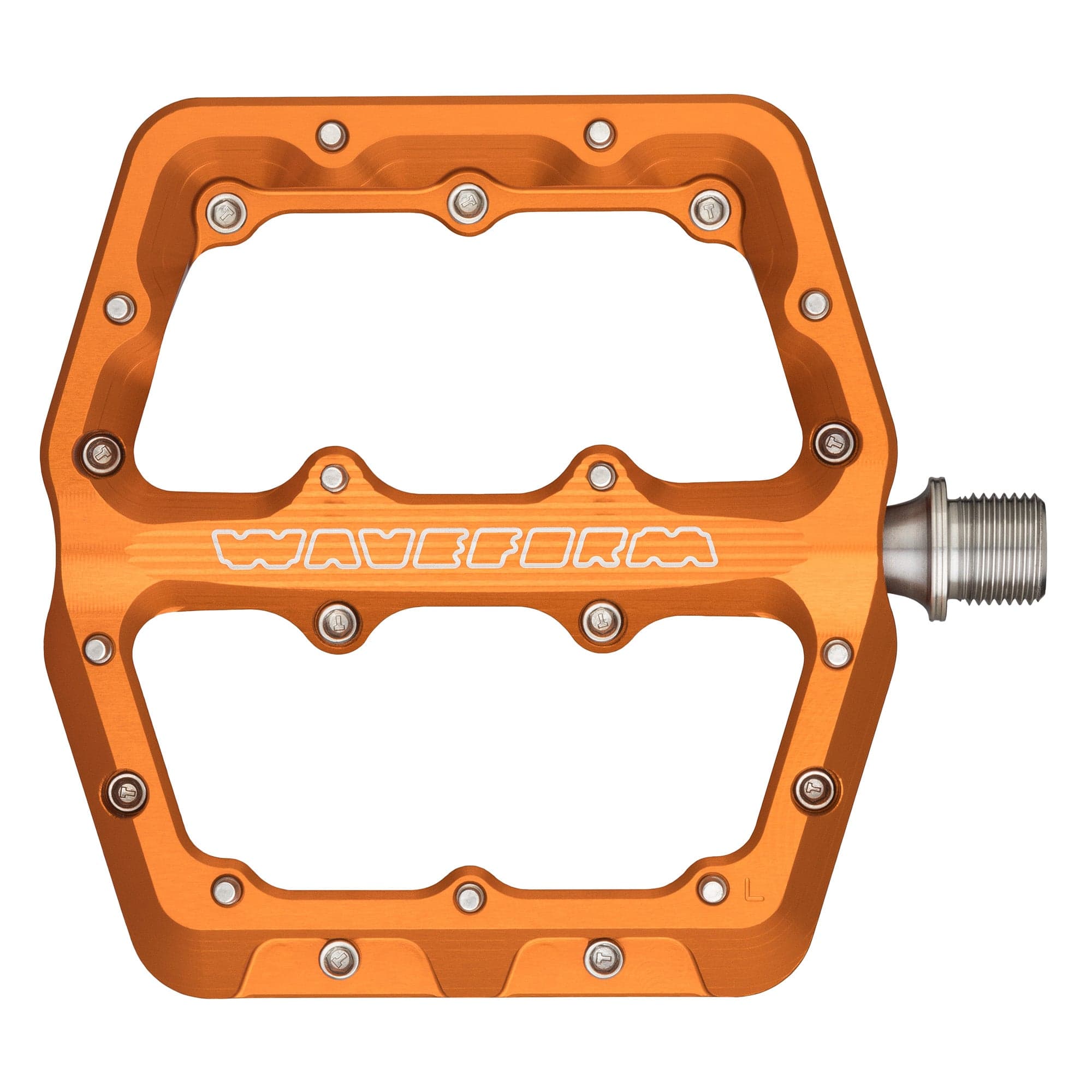

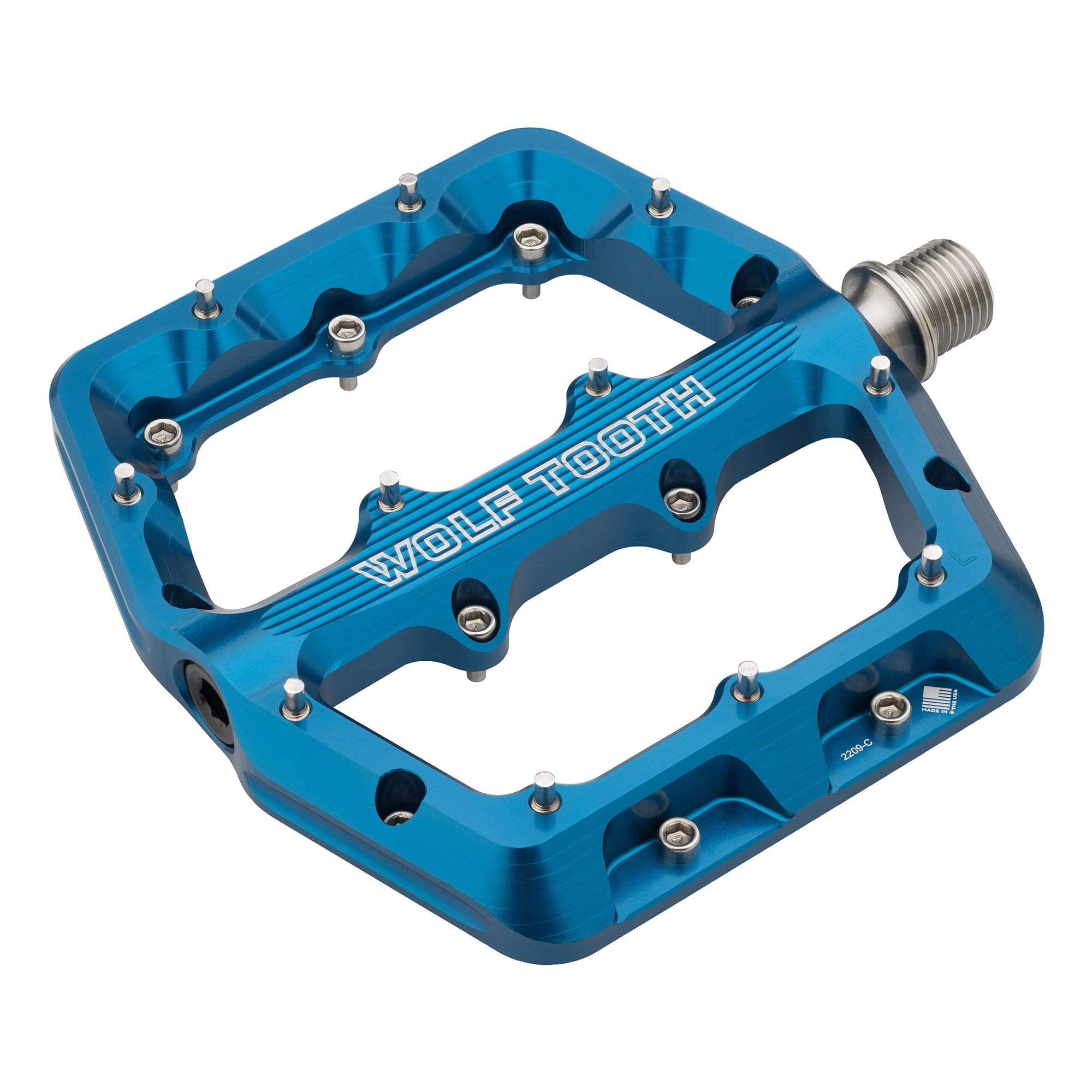

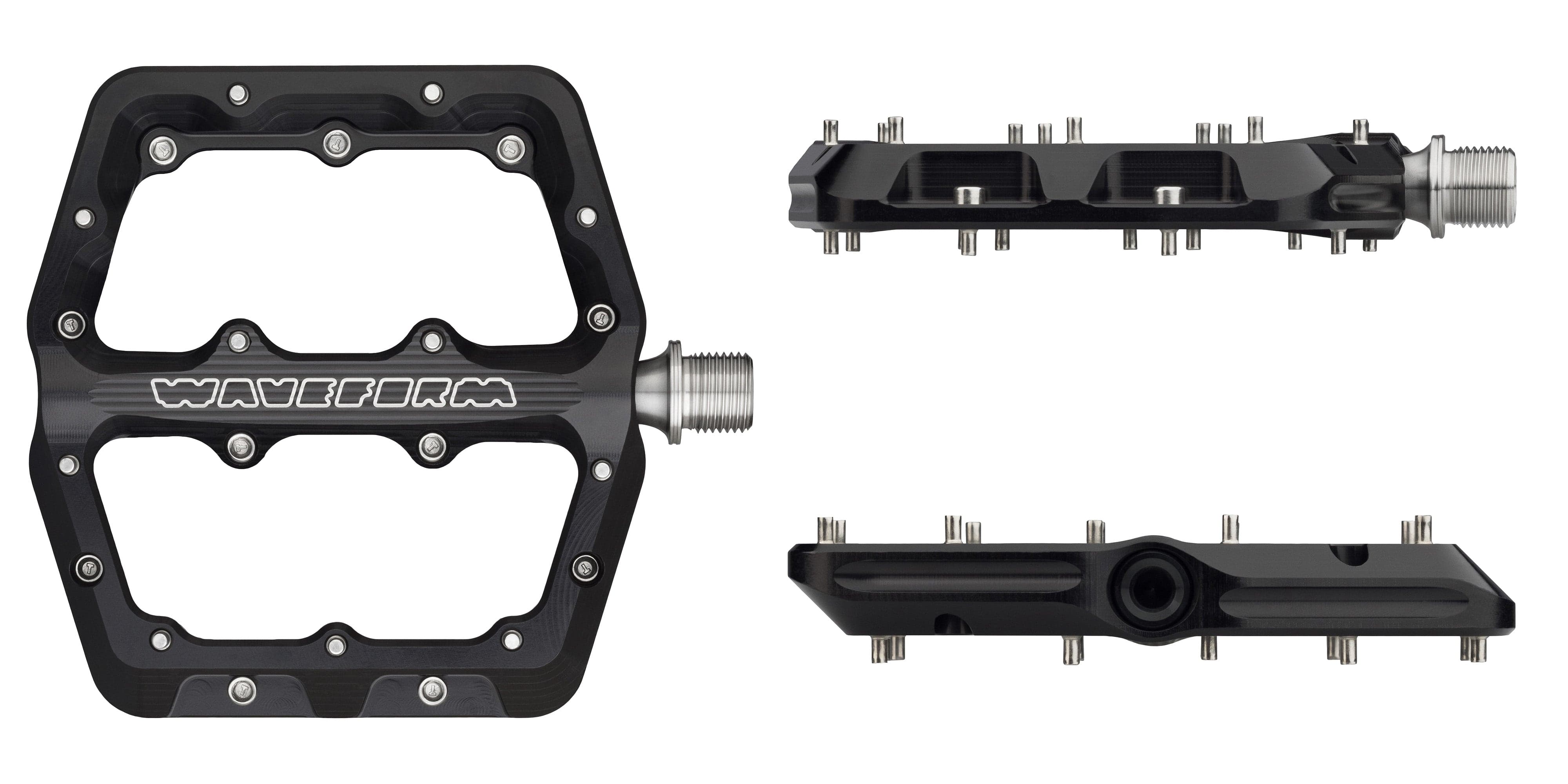

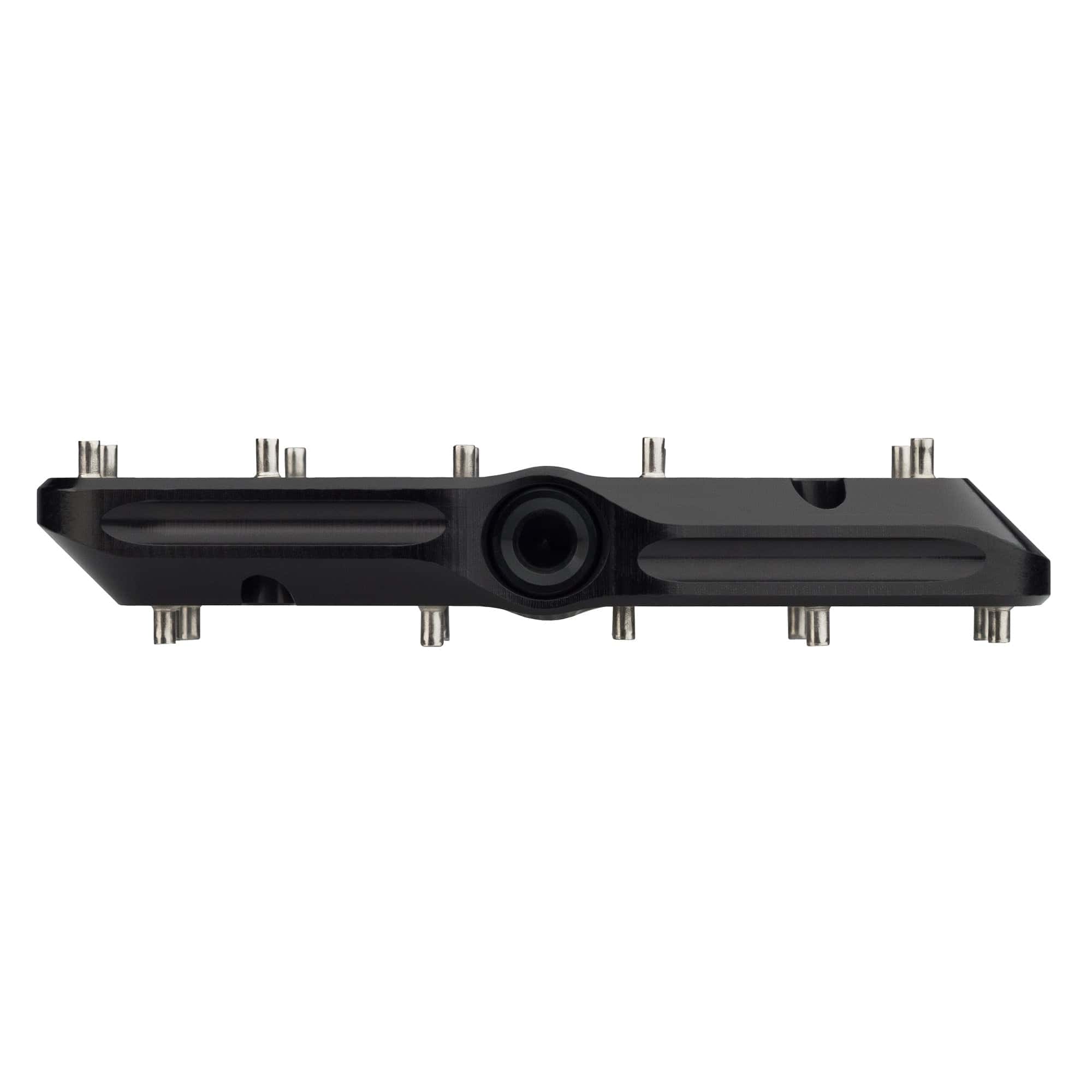

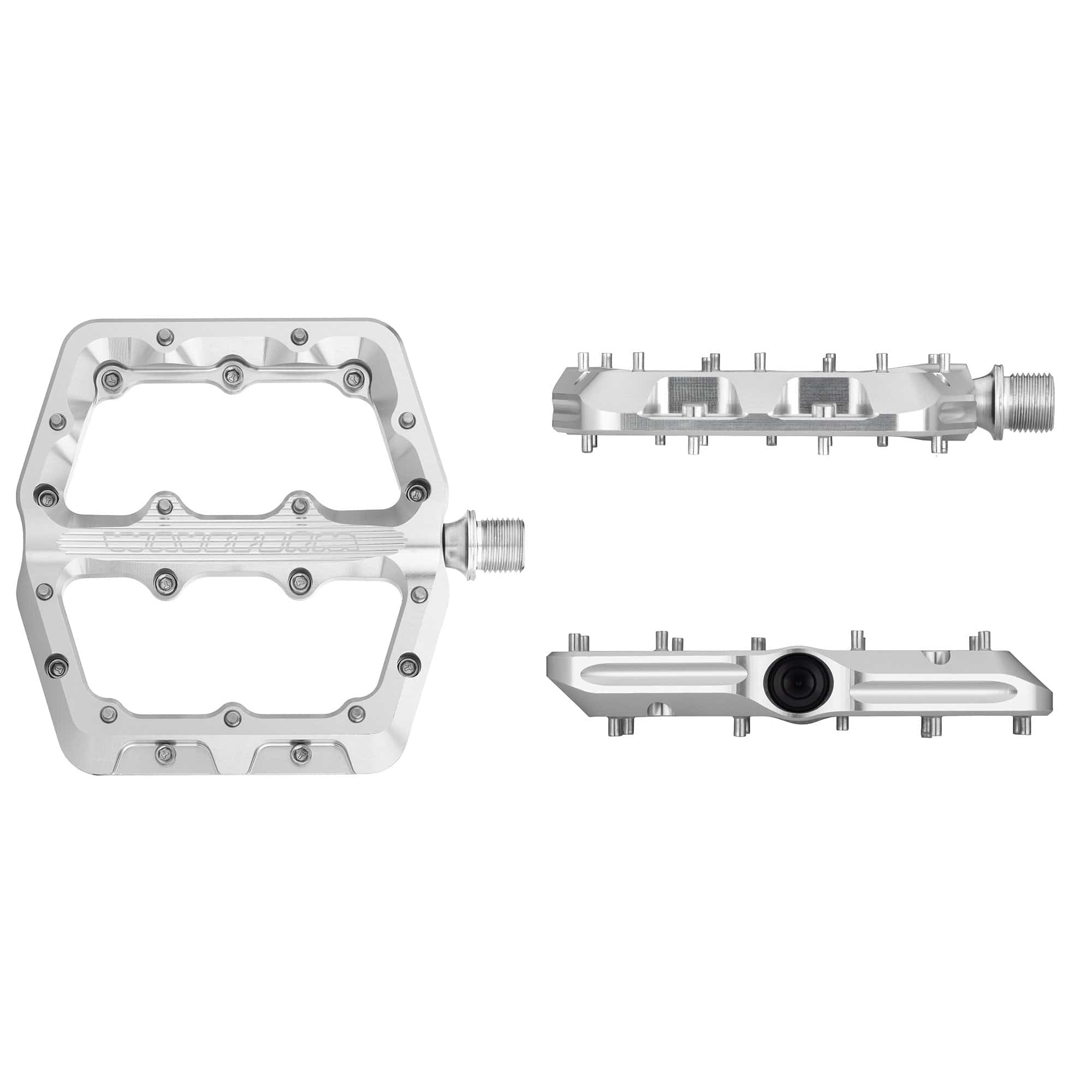

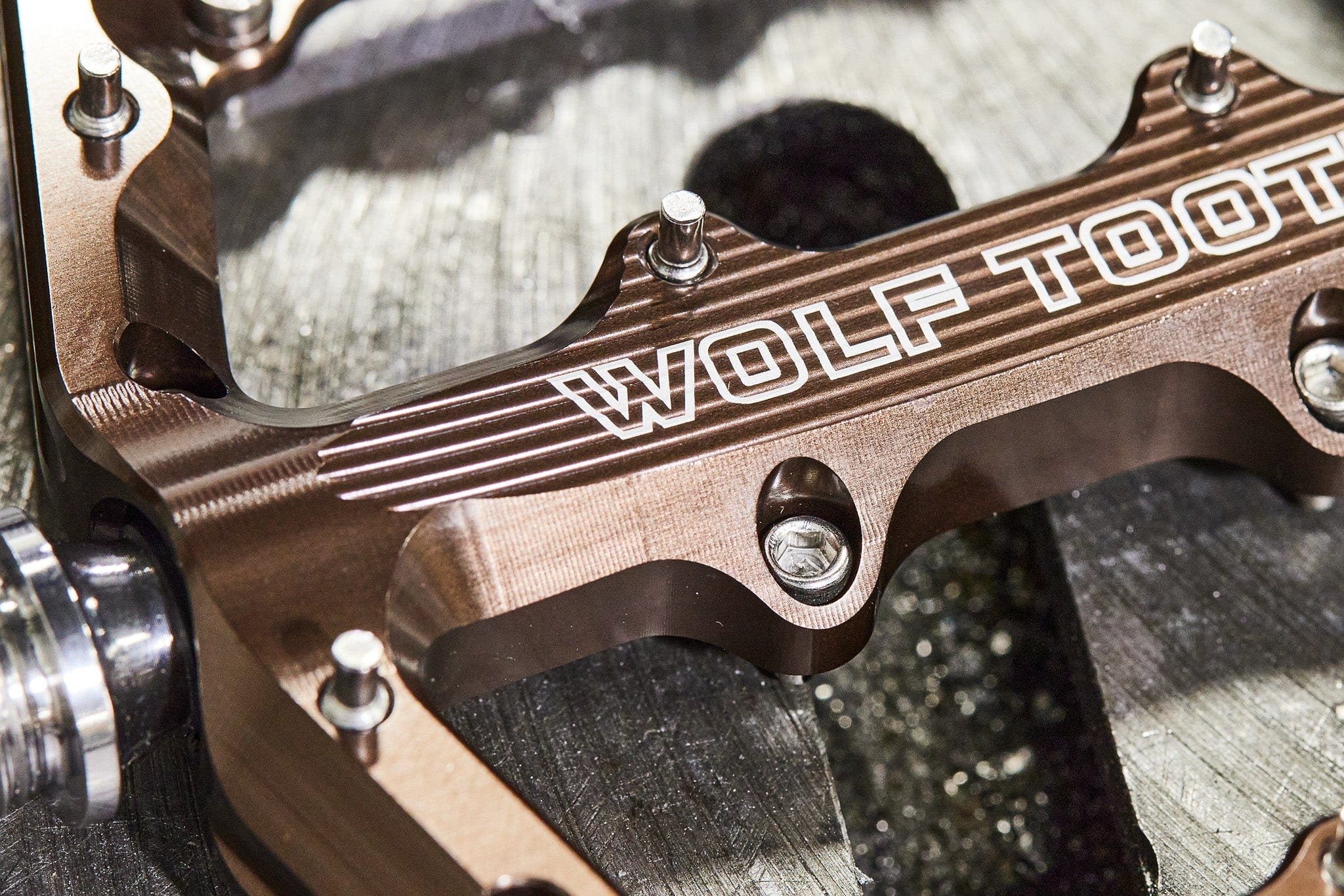

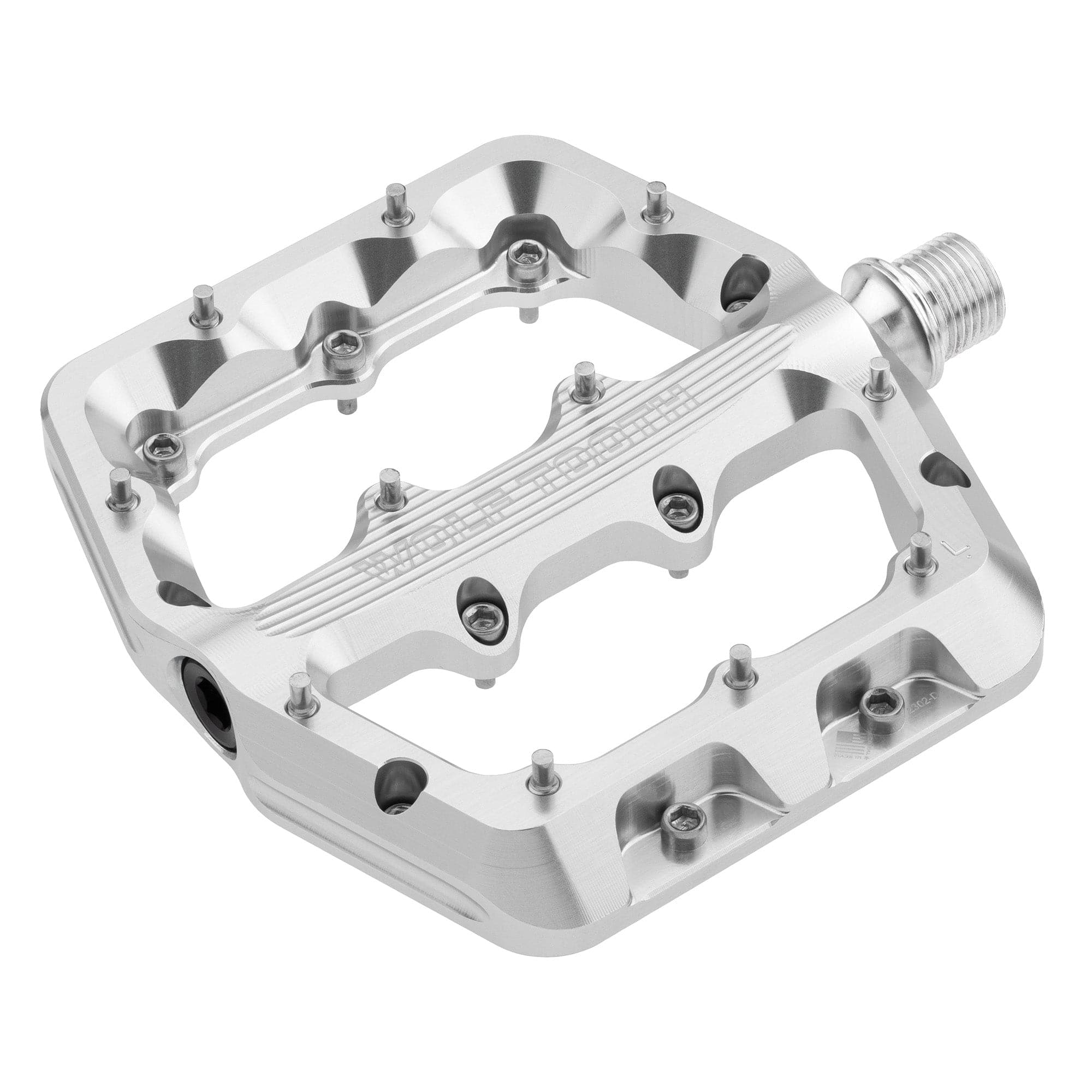

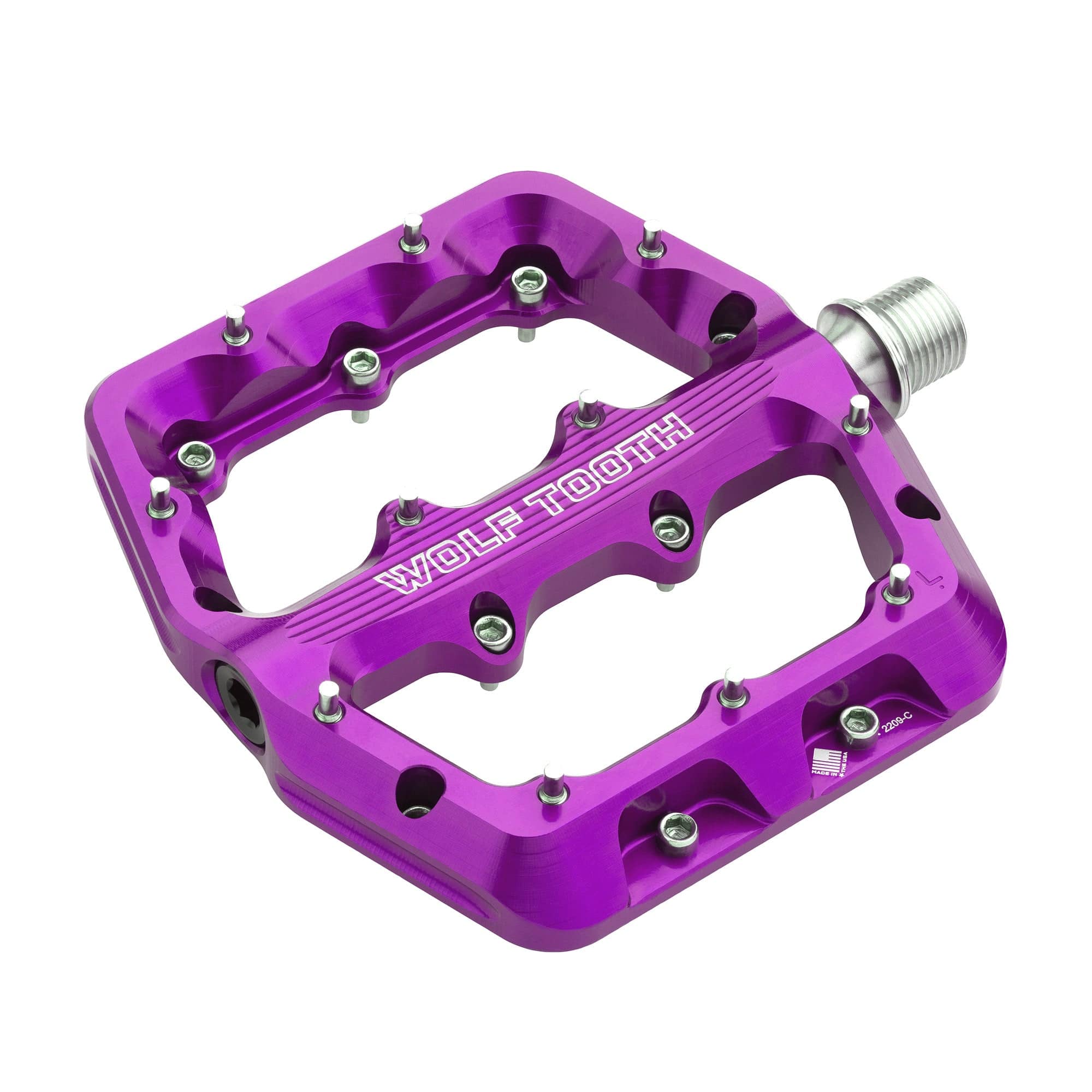

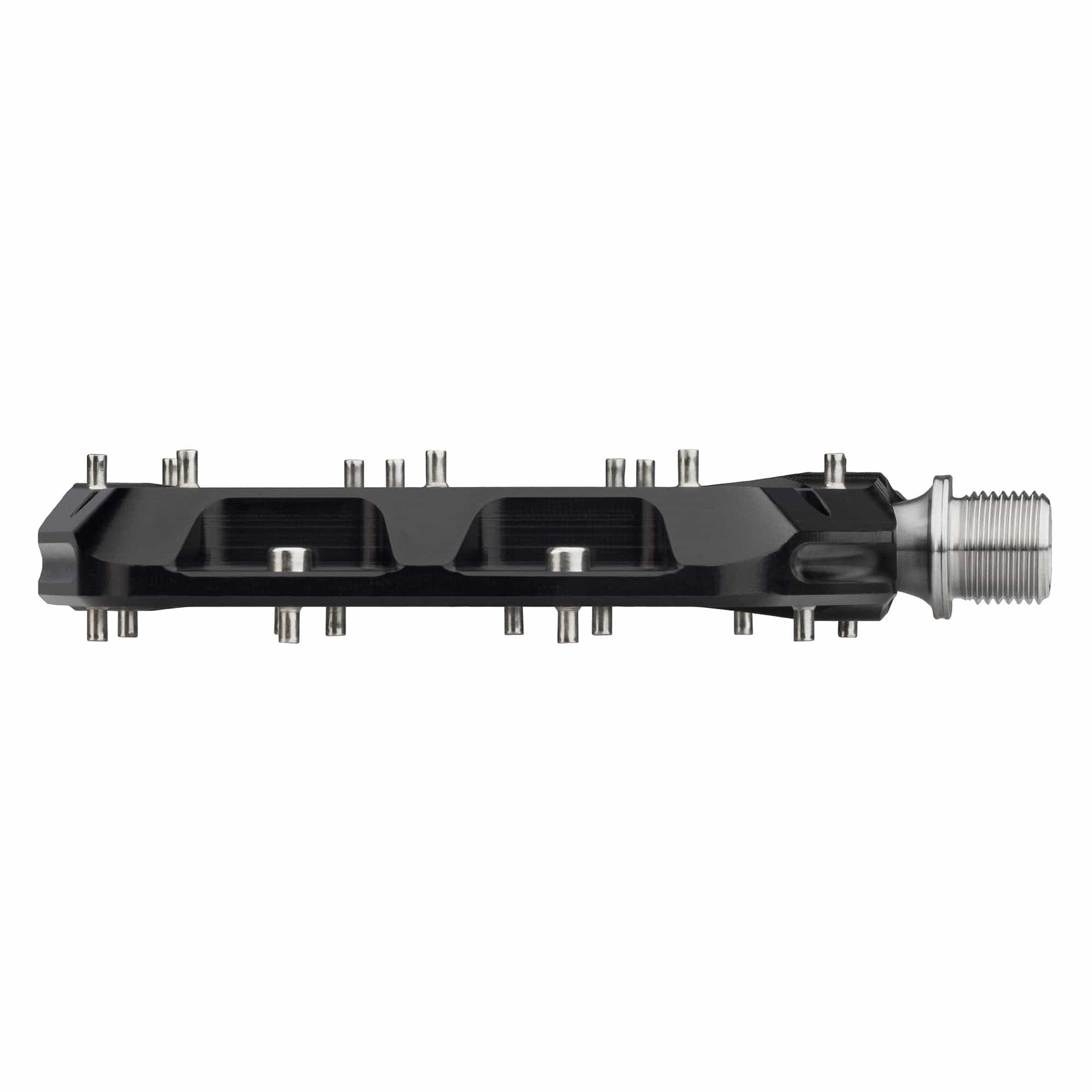

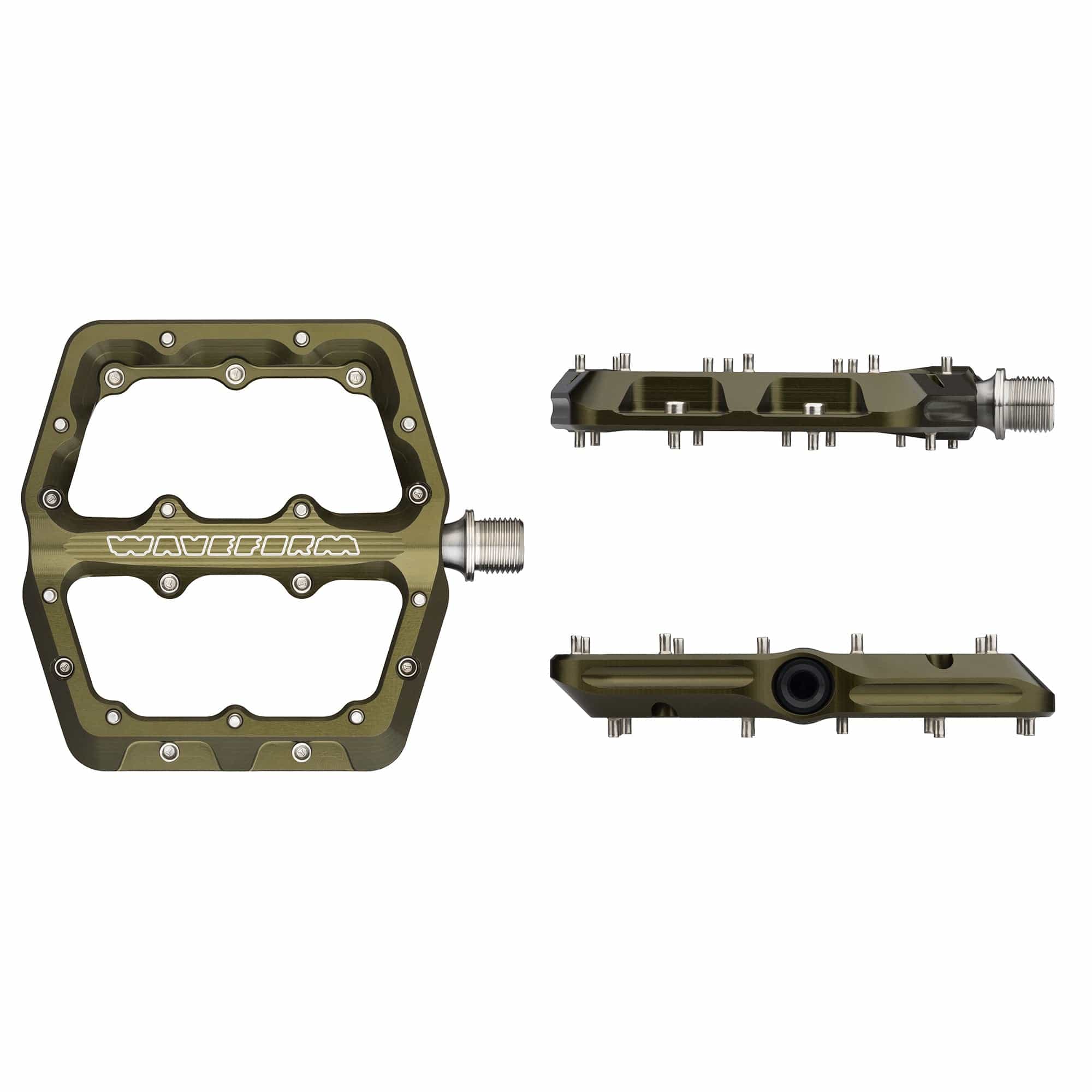

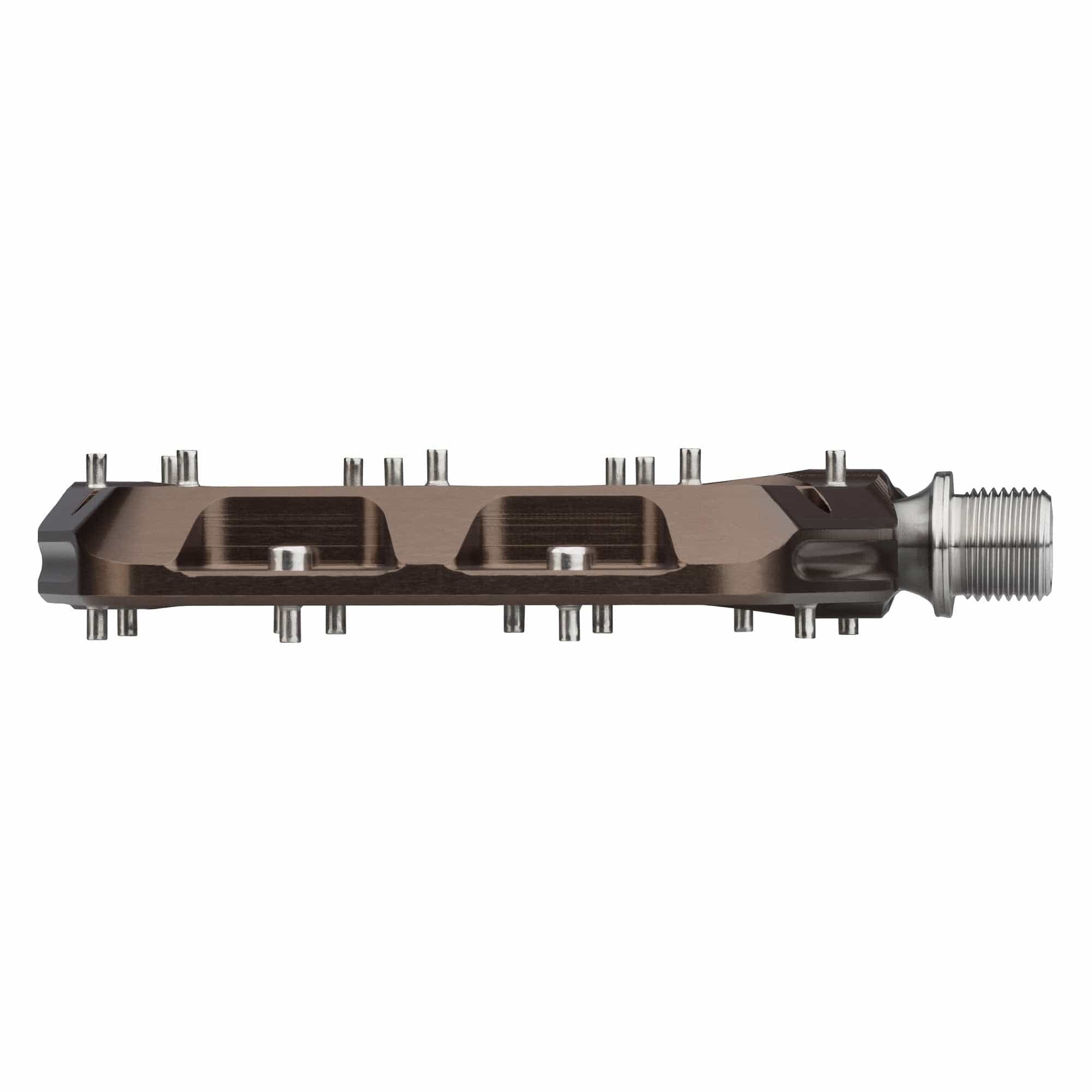

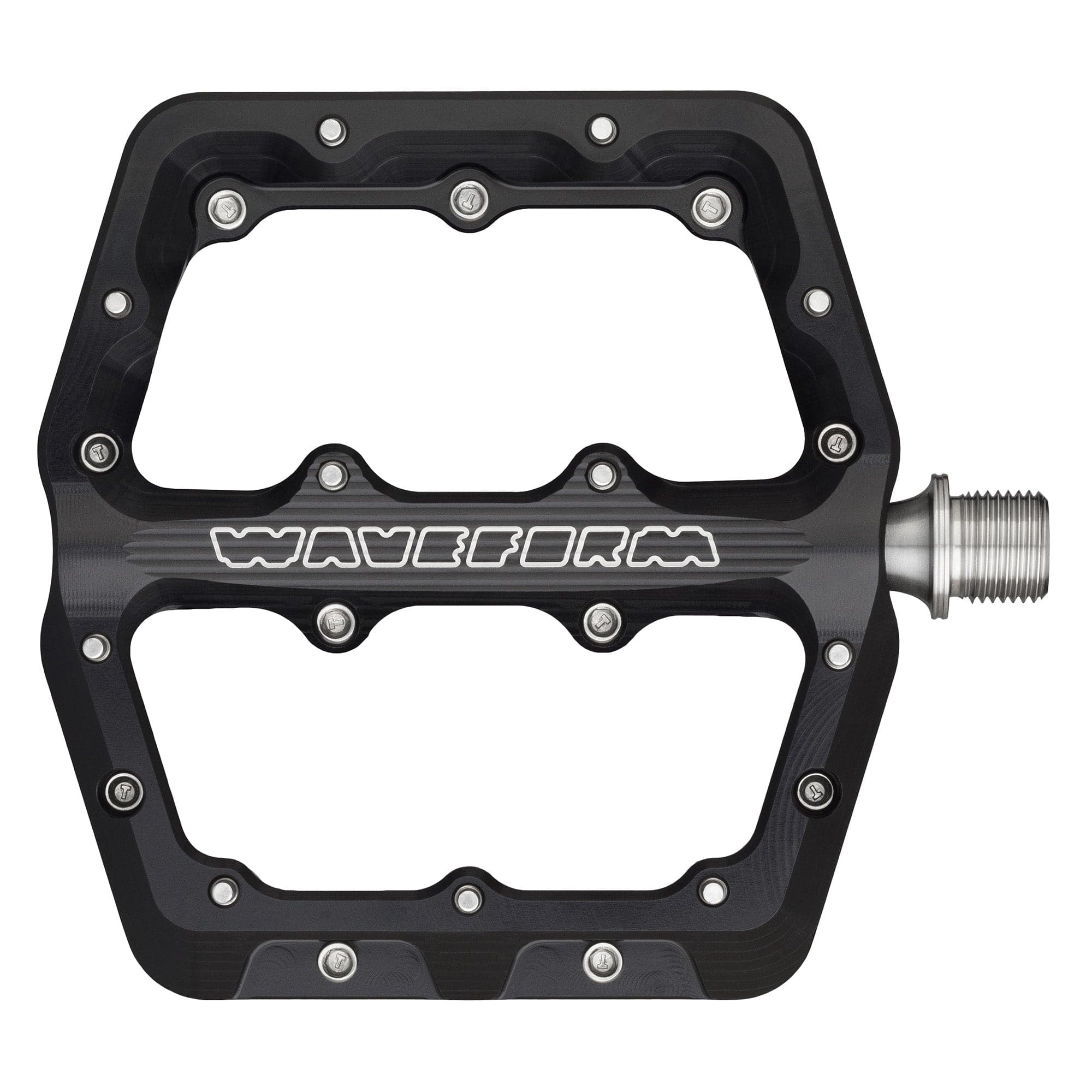

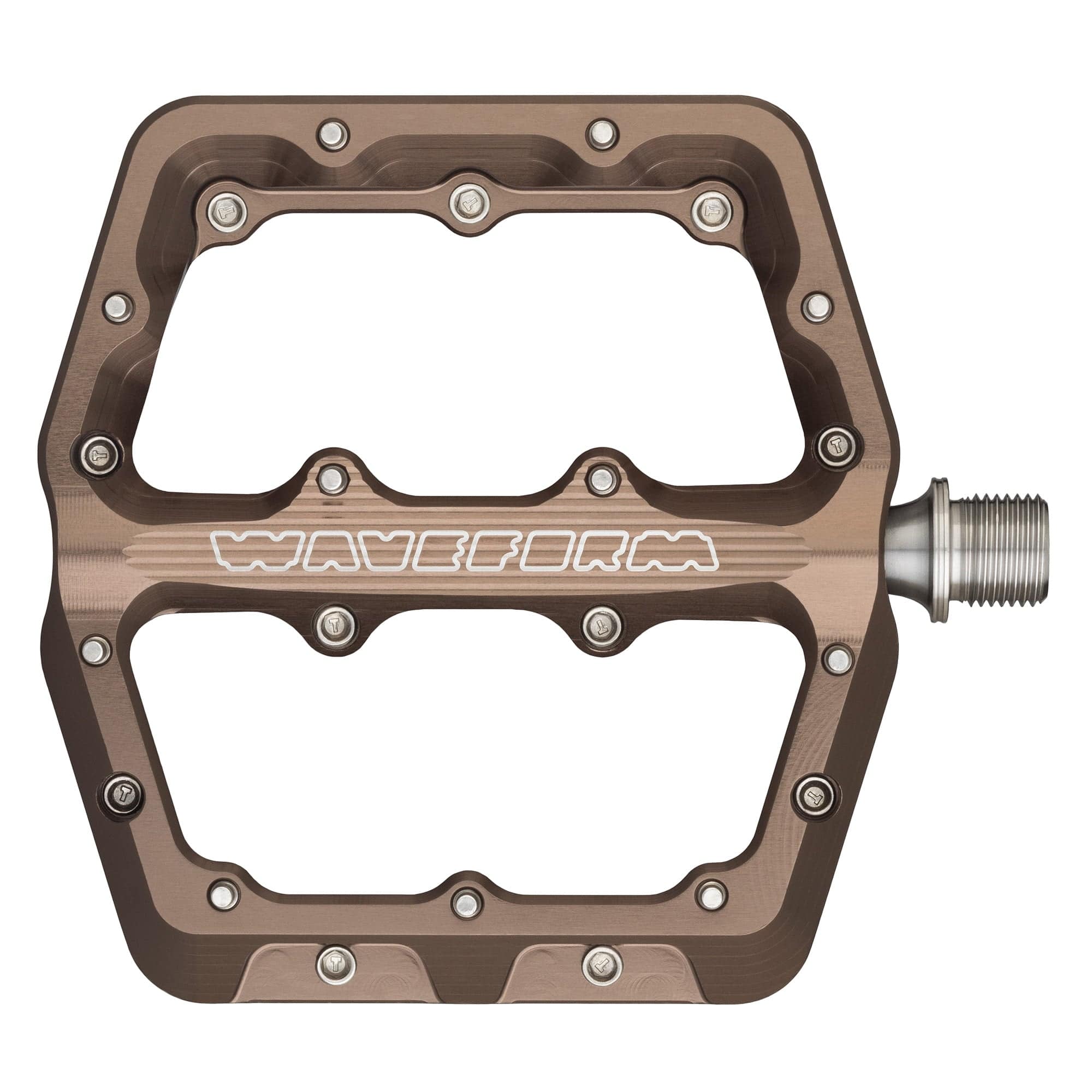

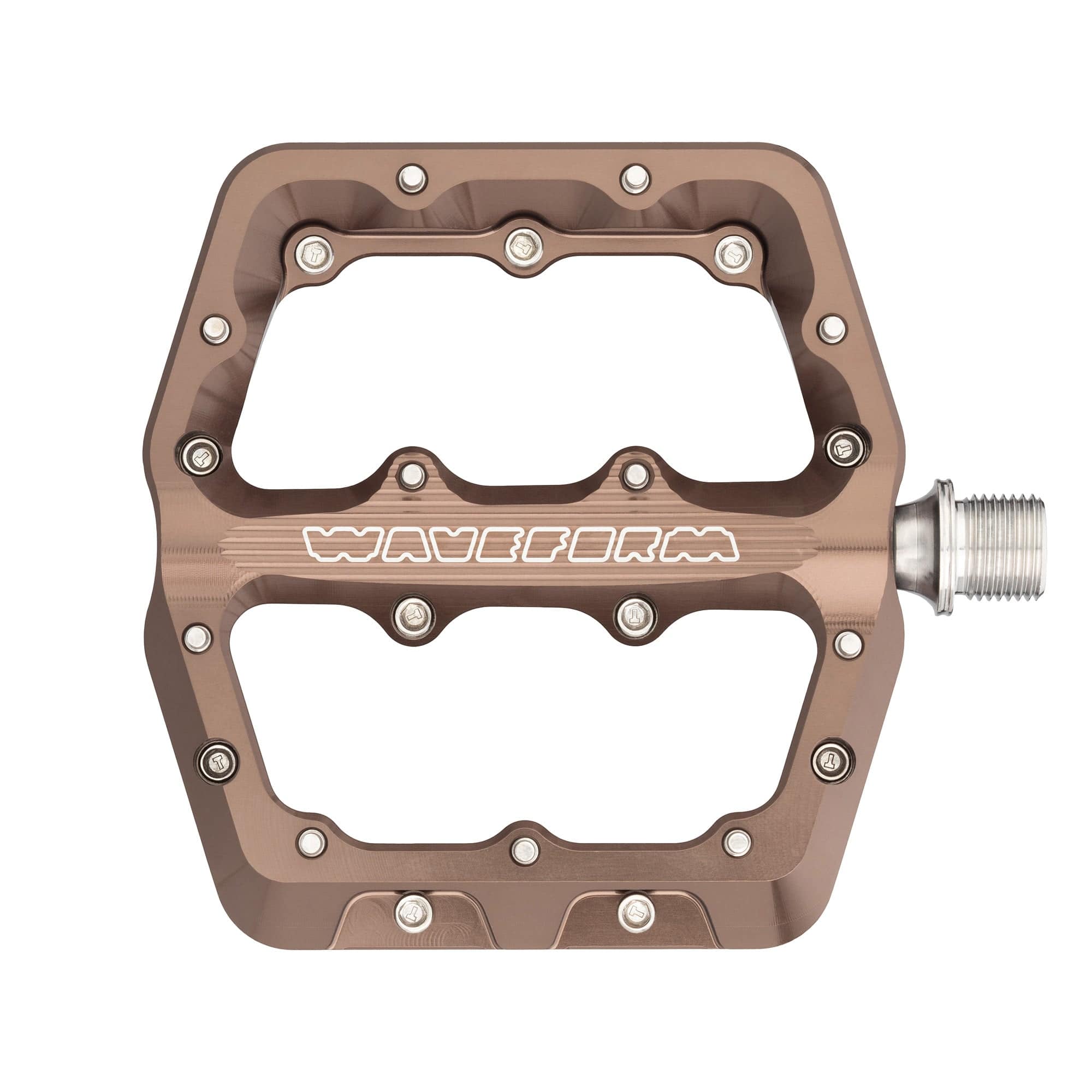

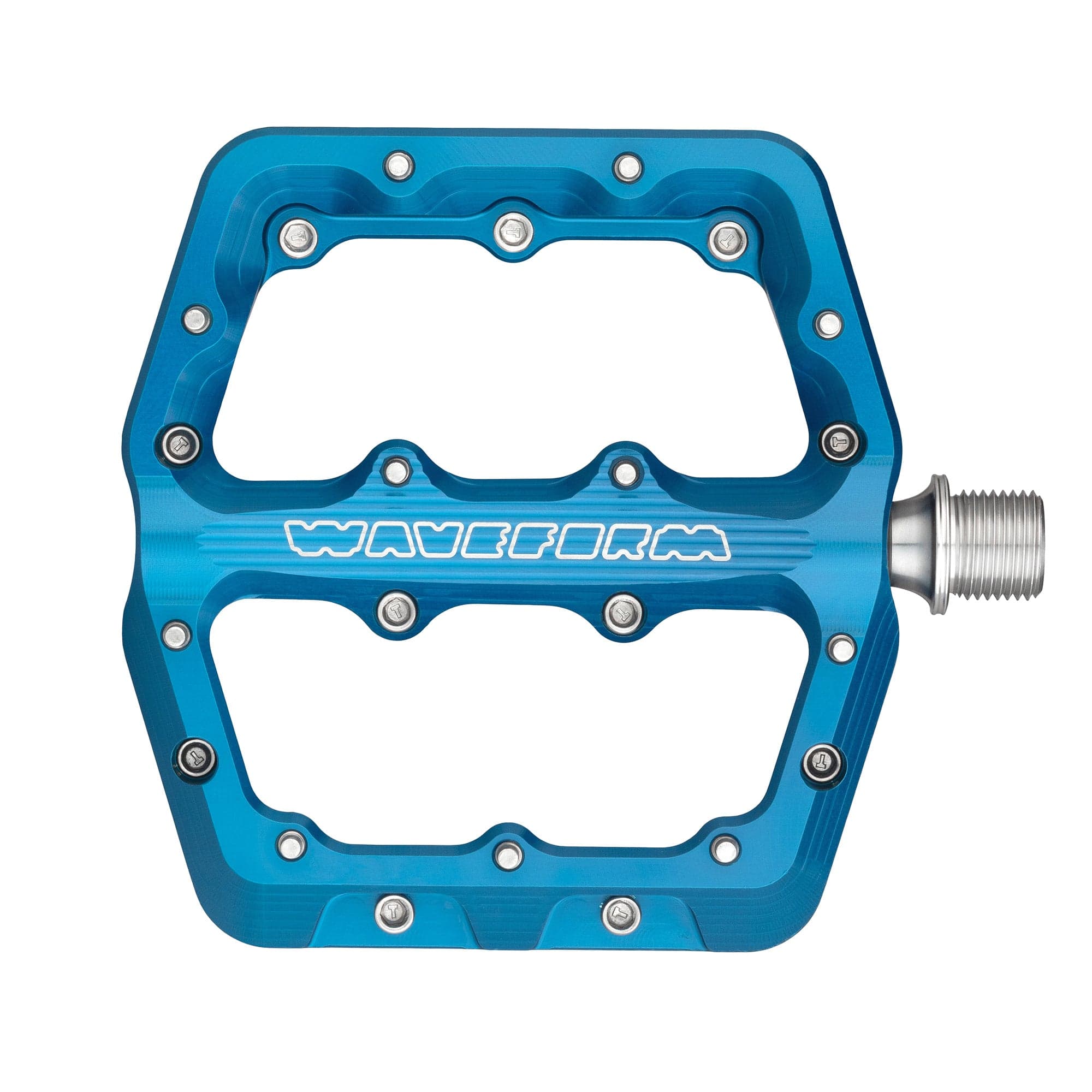

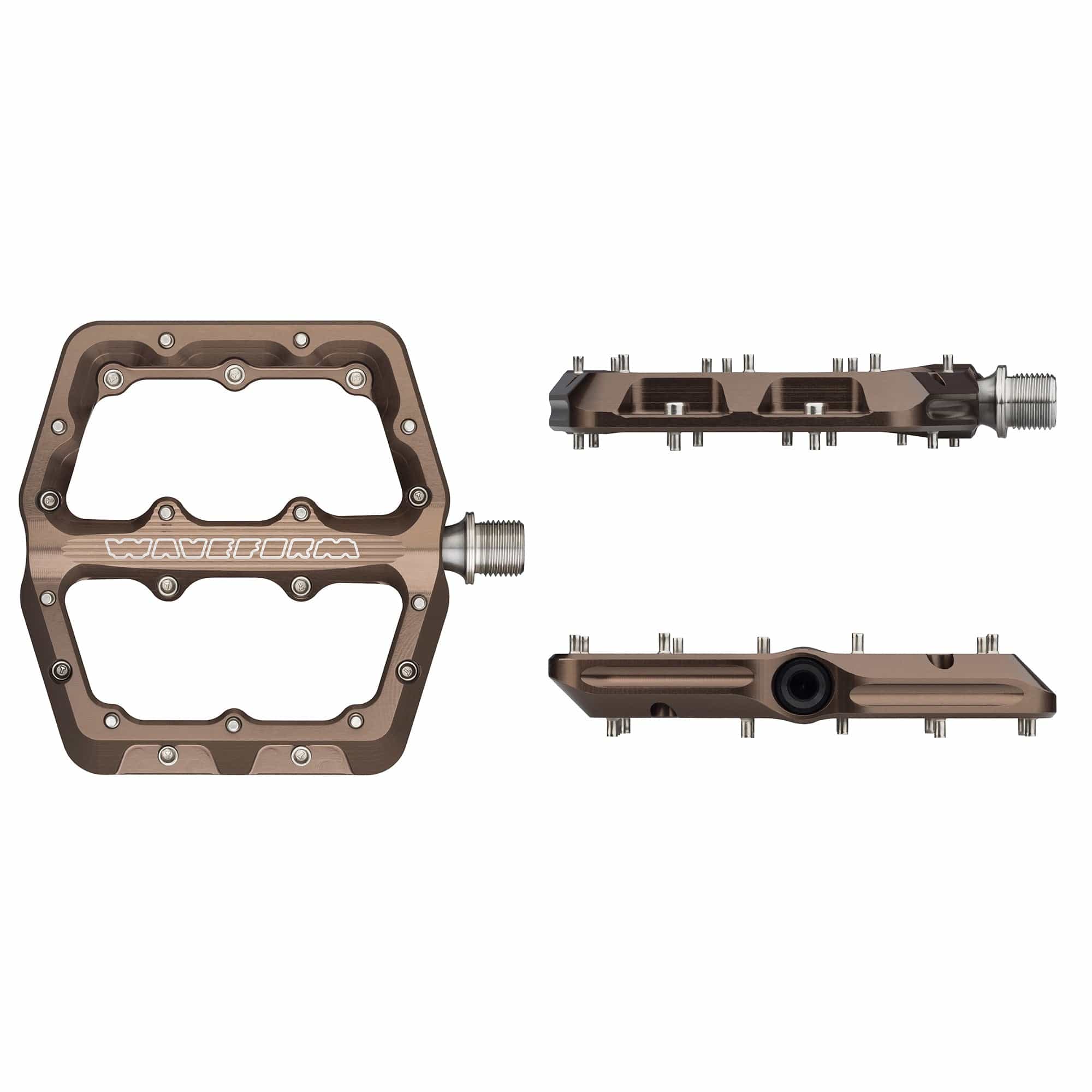

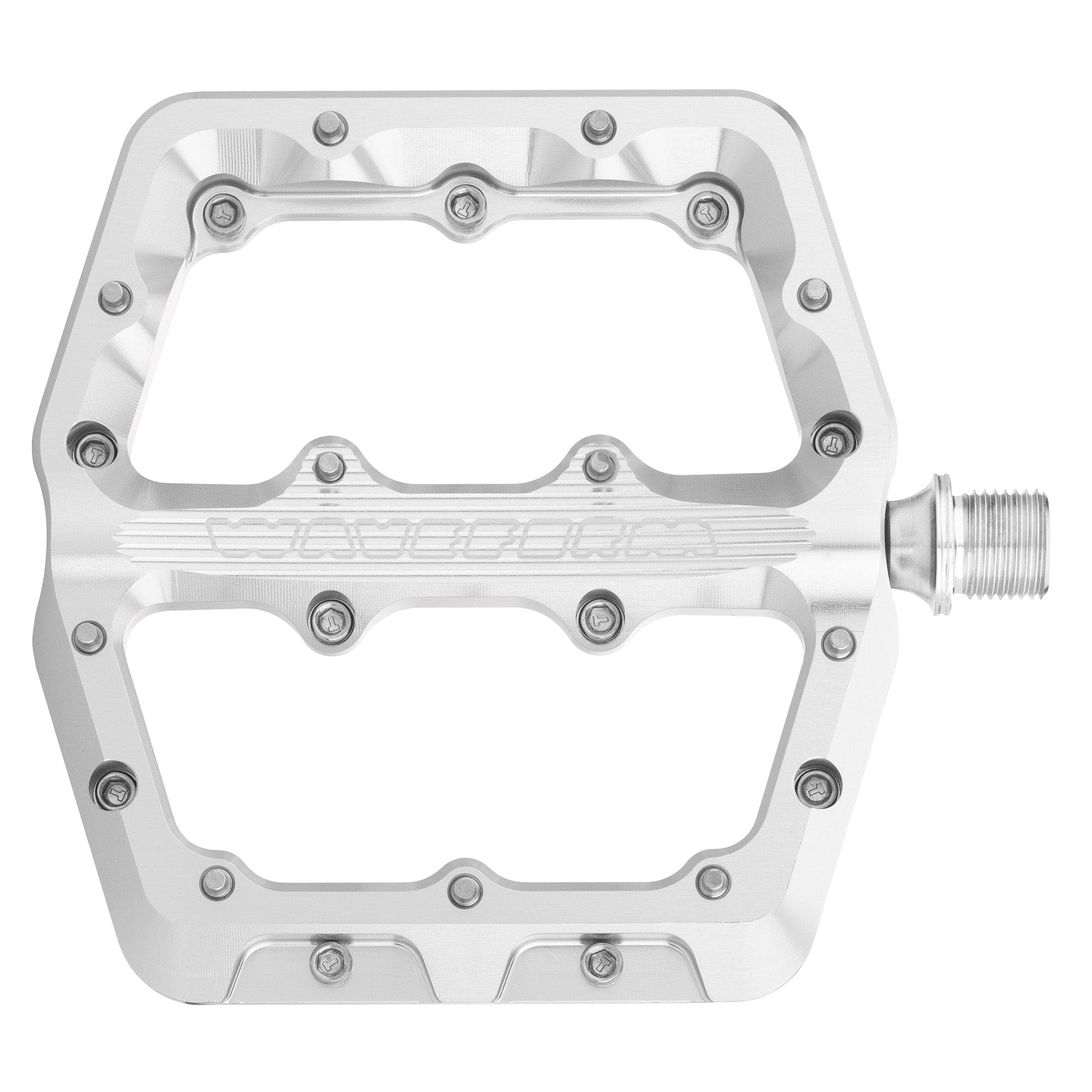

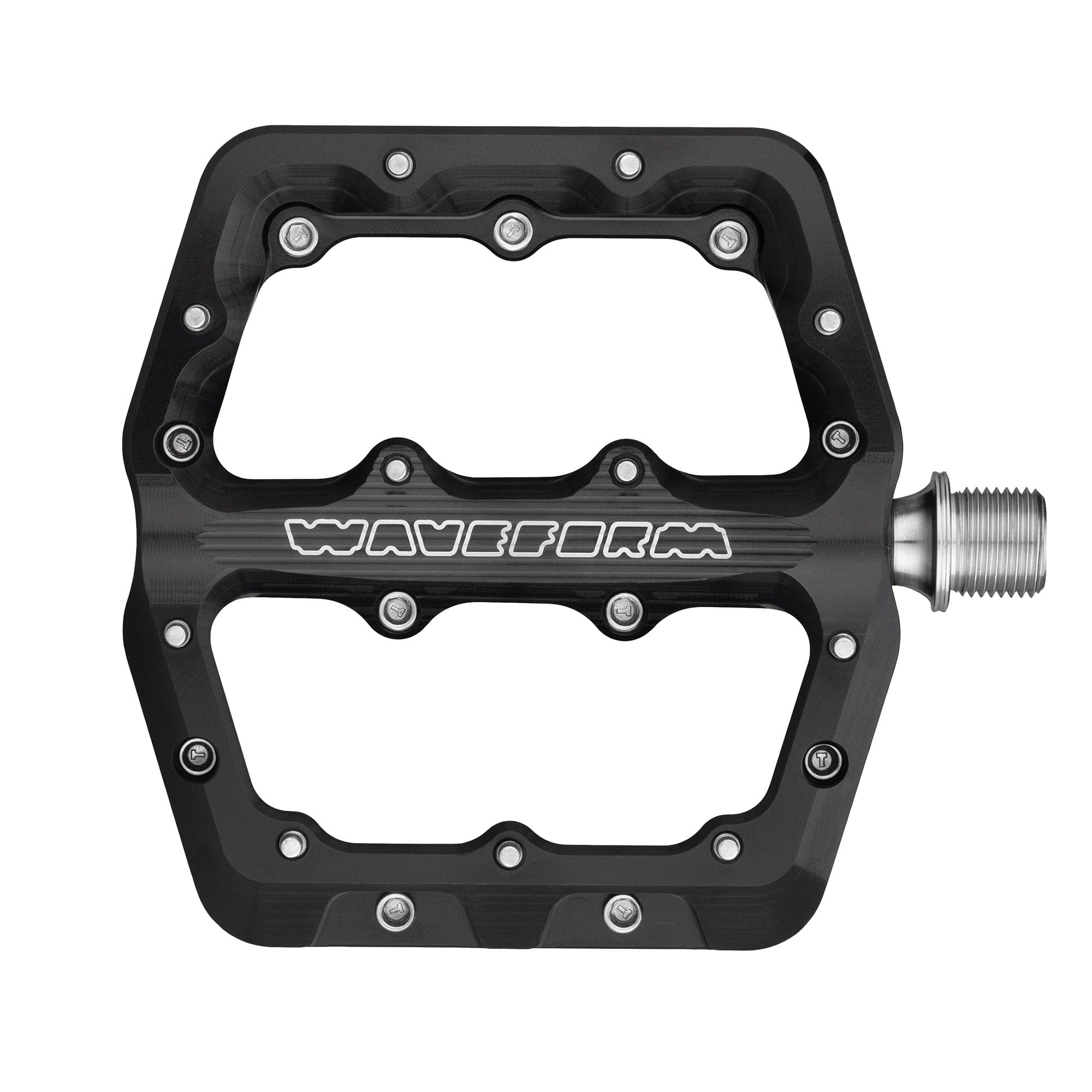

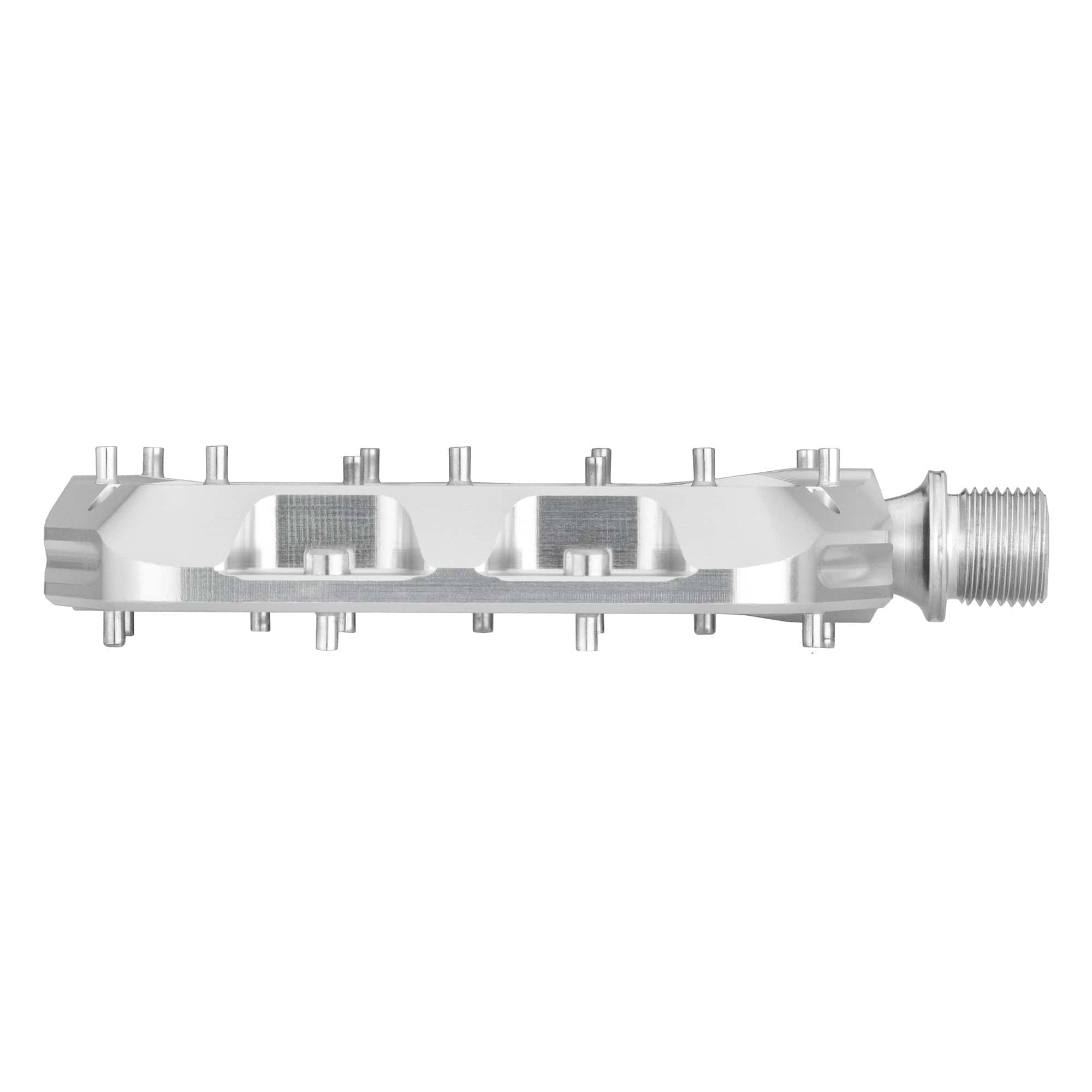

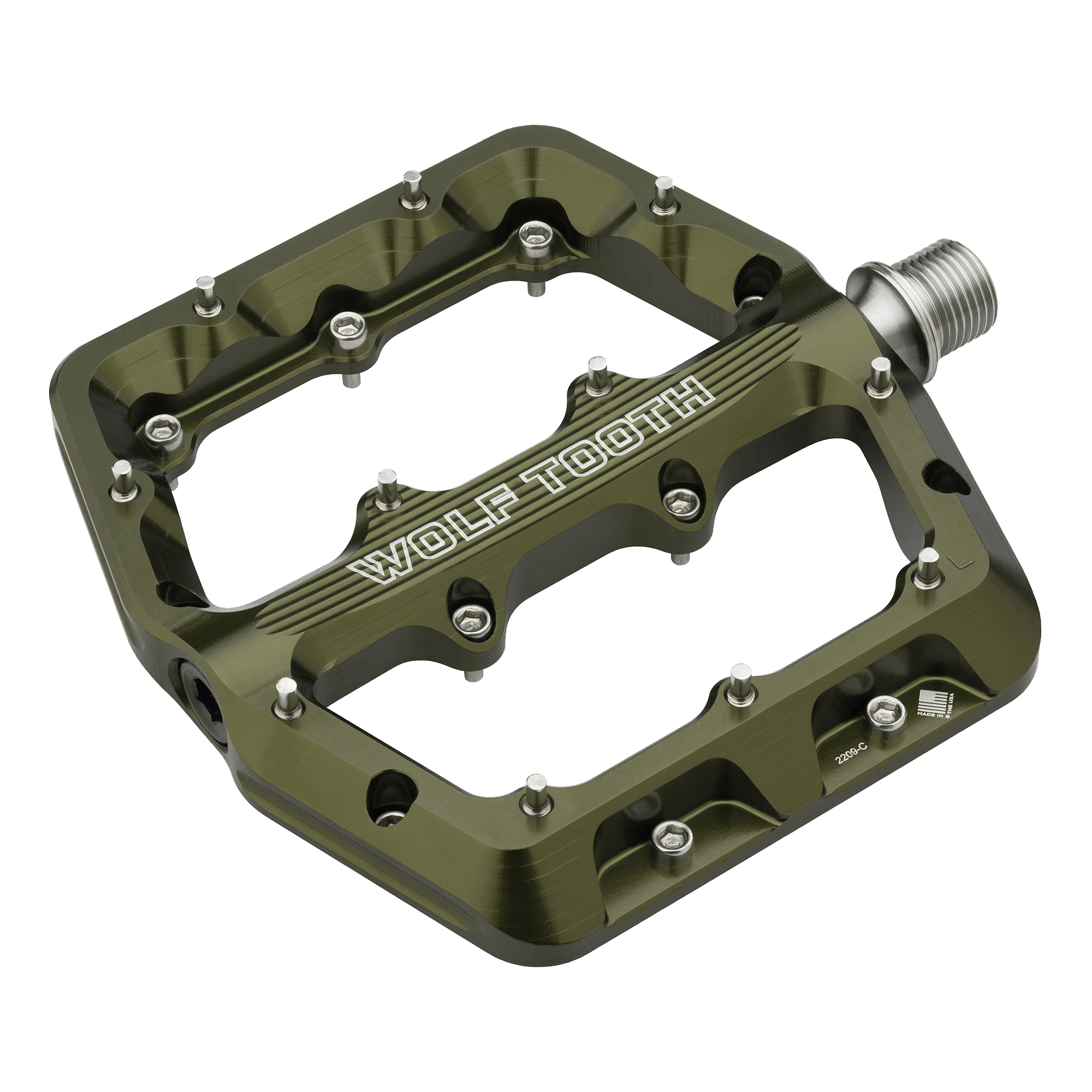

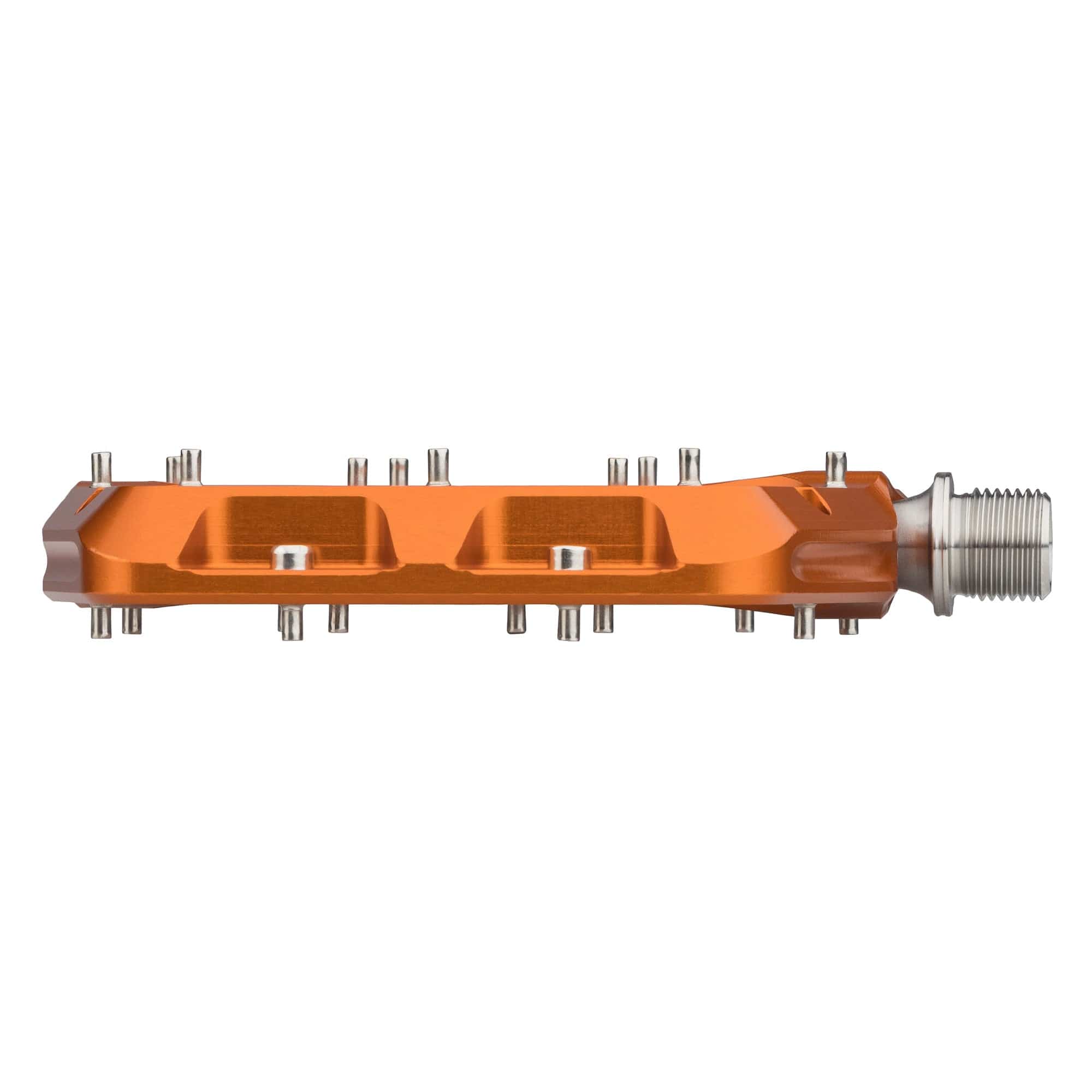

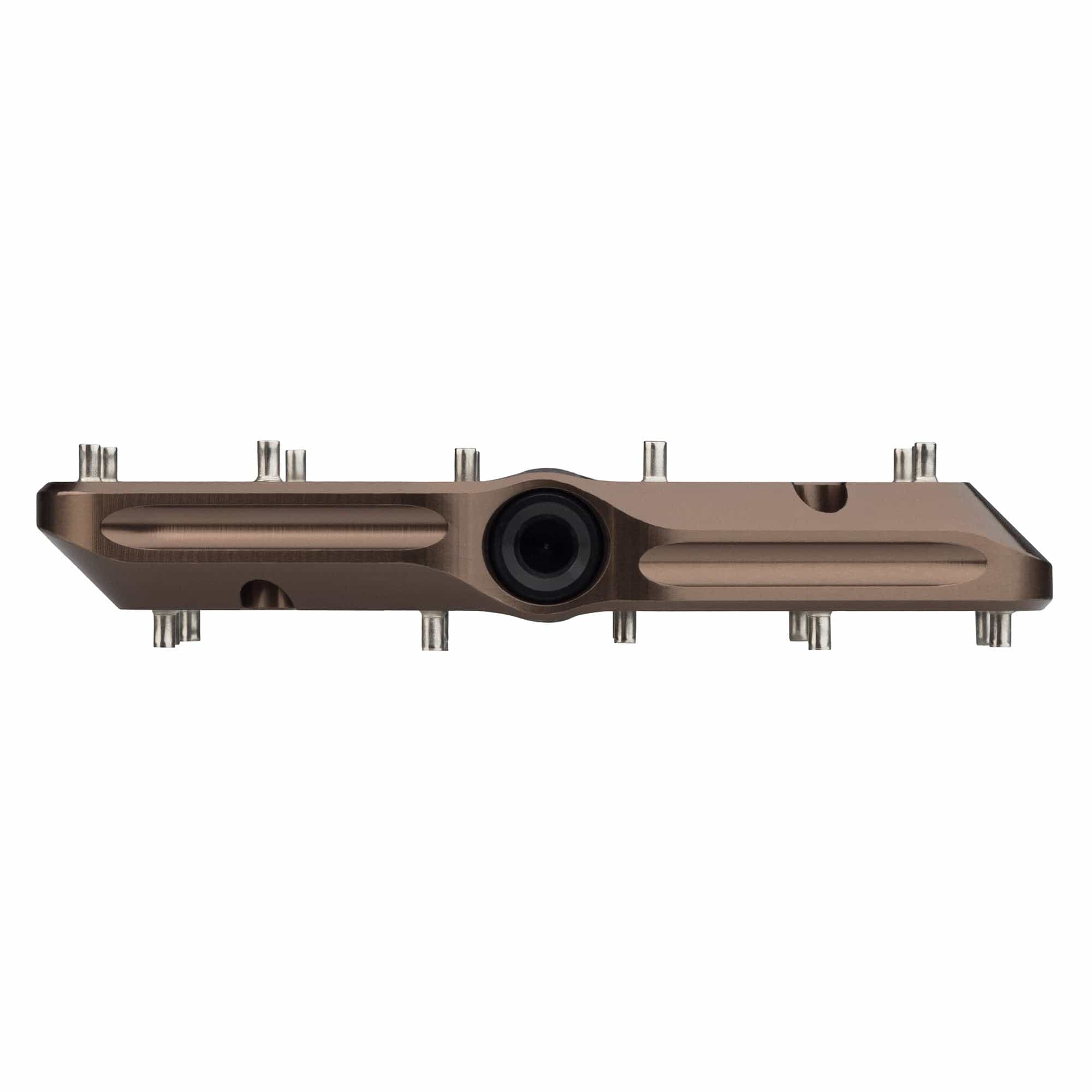

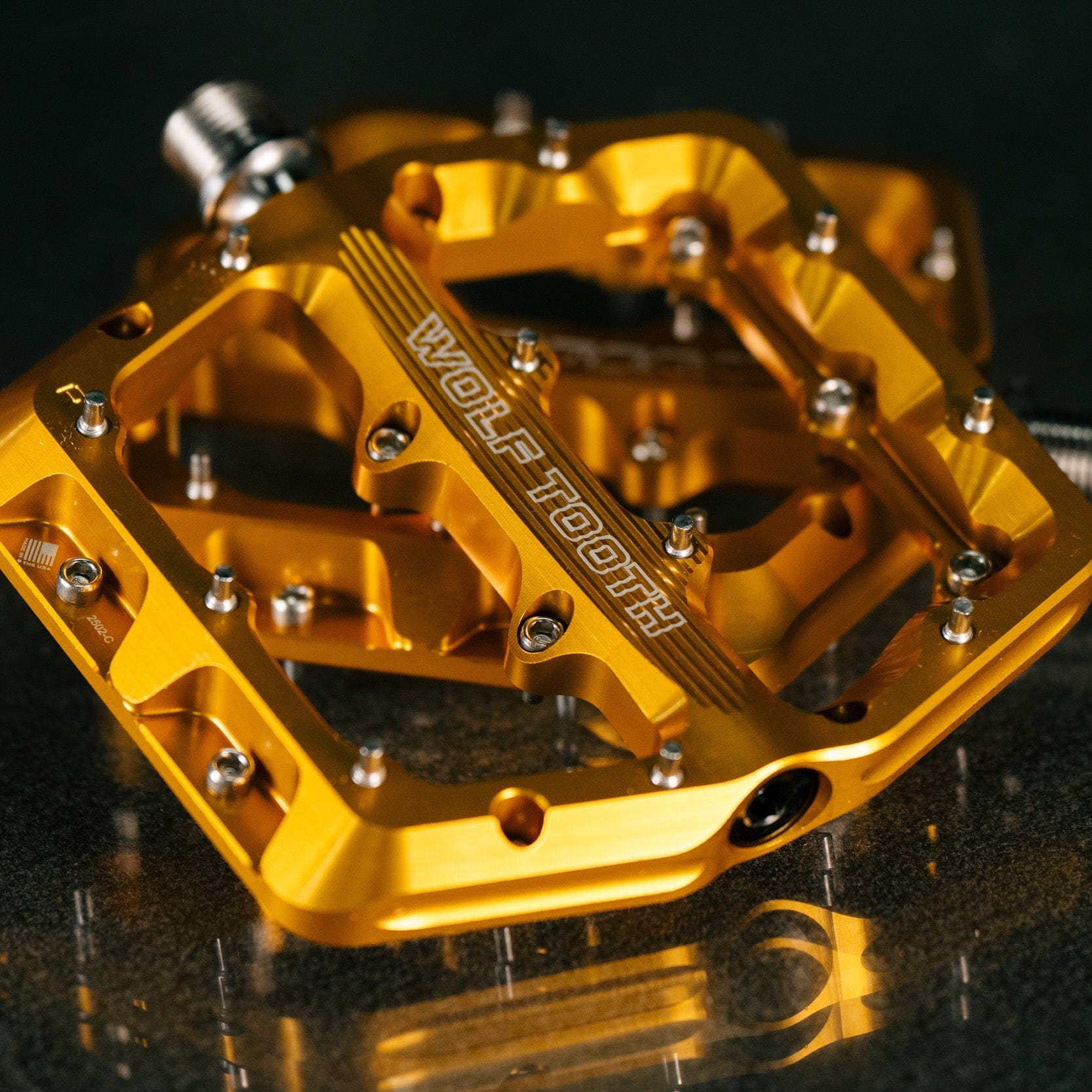

Wolf Tooth Waveform Aluminum Pedals are designed for all-mountain riding, from XC to downhill. The pedals come in two sizes, and are proportionally scaled to provide a supportive platform, shaped to match the footprint of your shoe. They have a slim, dual-concave profile that is 14mm thick at the perimeter and just 12.5mm thick in the center, cradling your foot for optimal pedal feel. Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. The name Waveform comes from the wave that is machined into the inside front edge of the pedal. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.

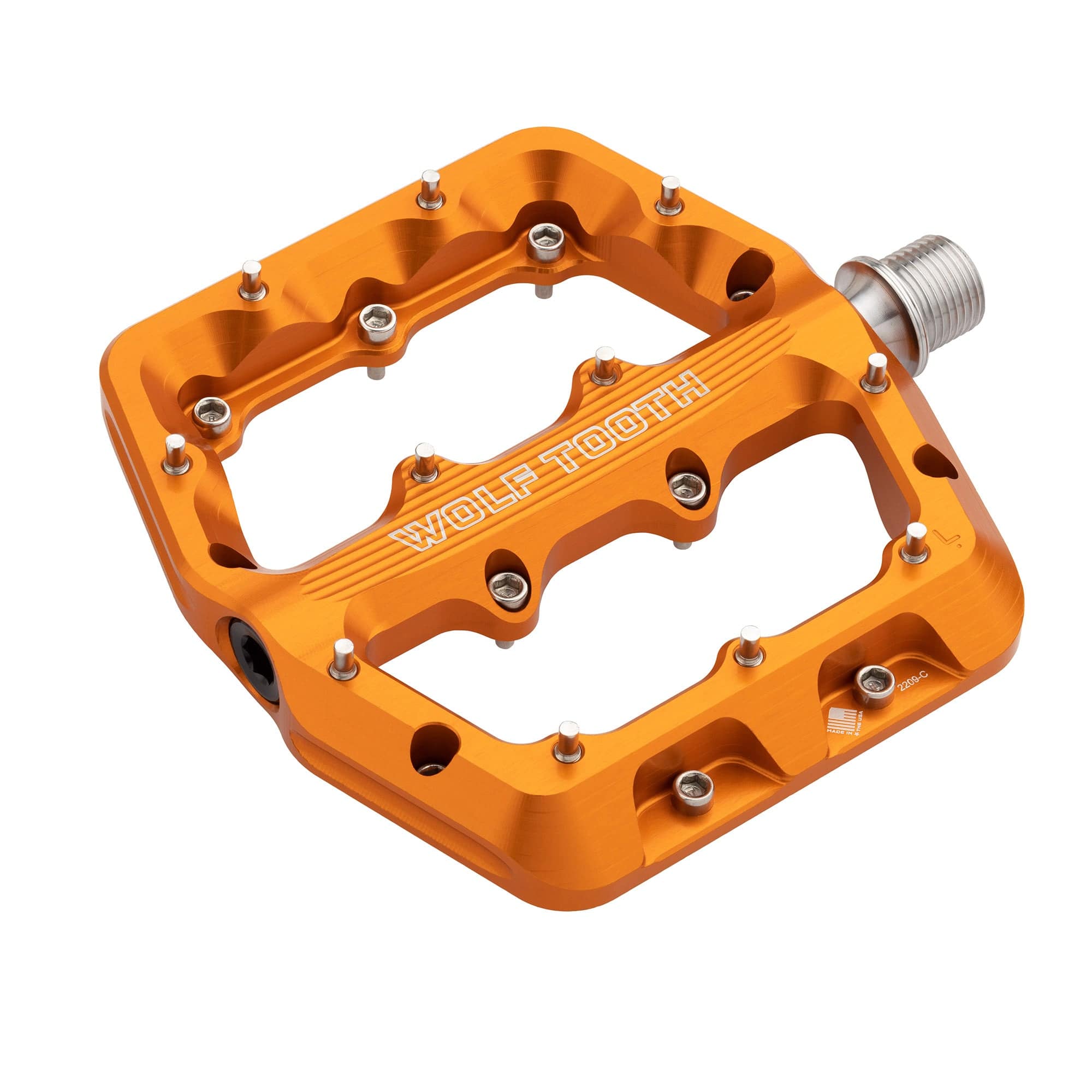

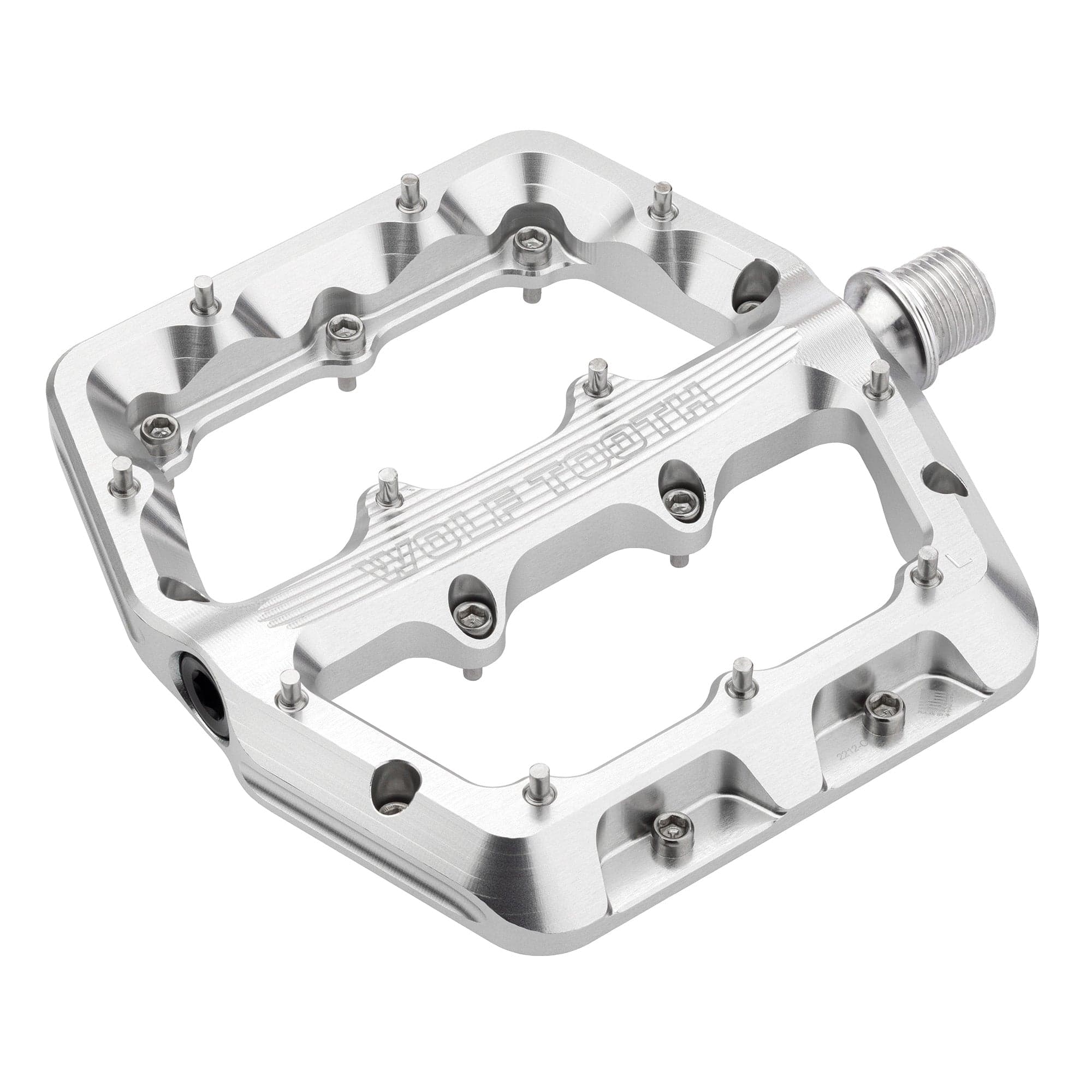

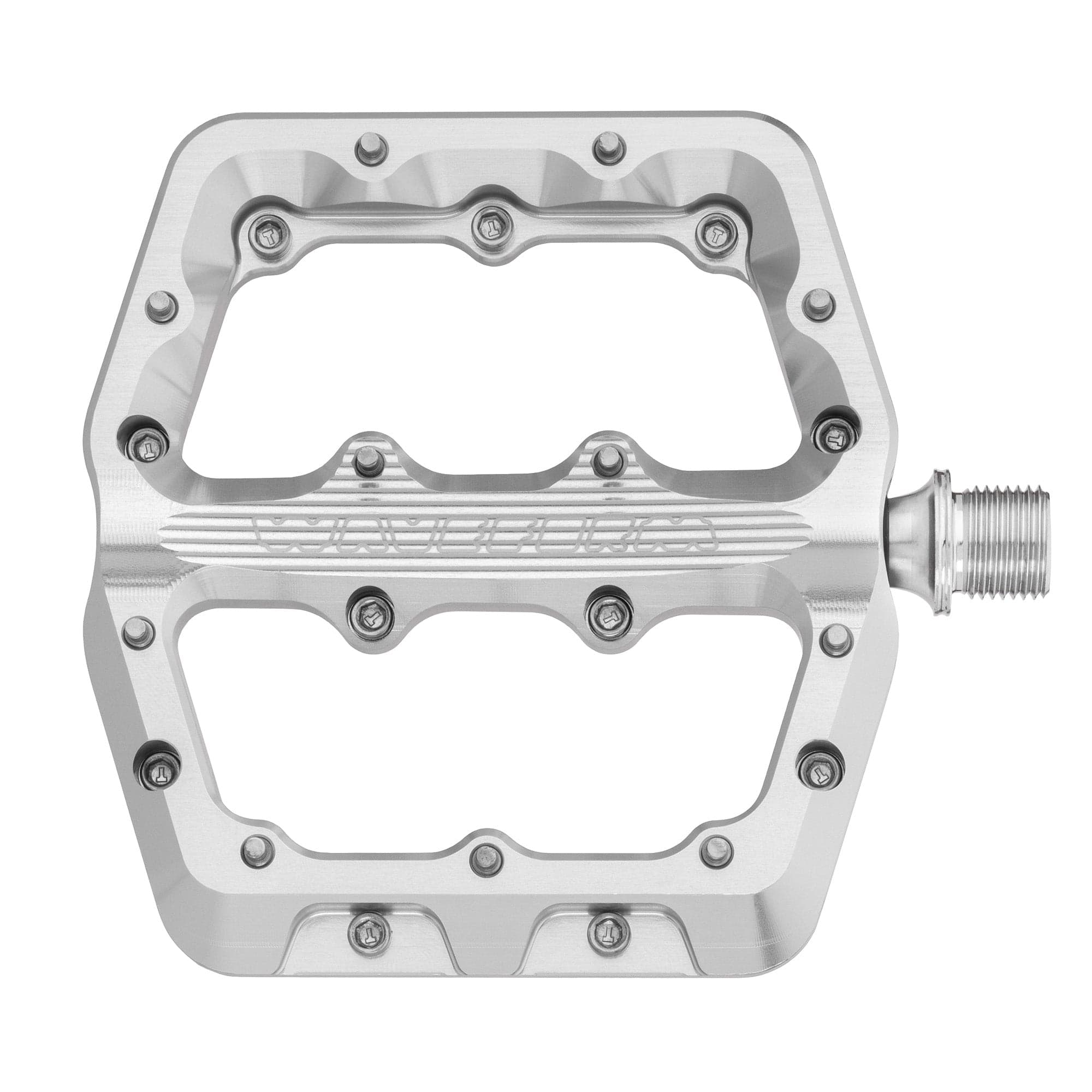

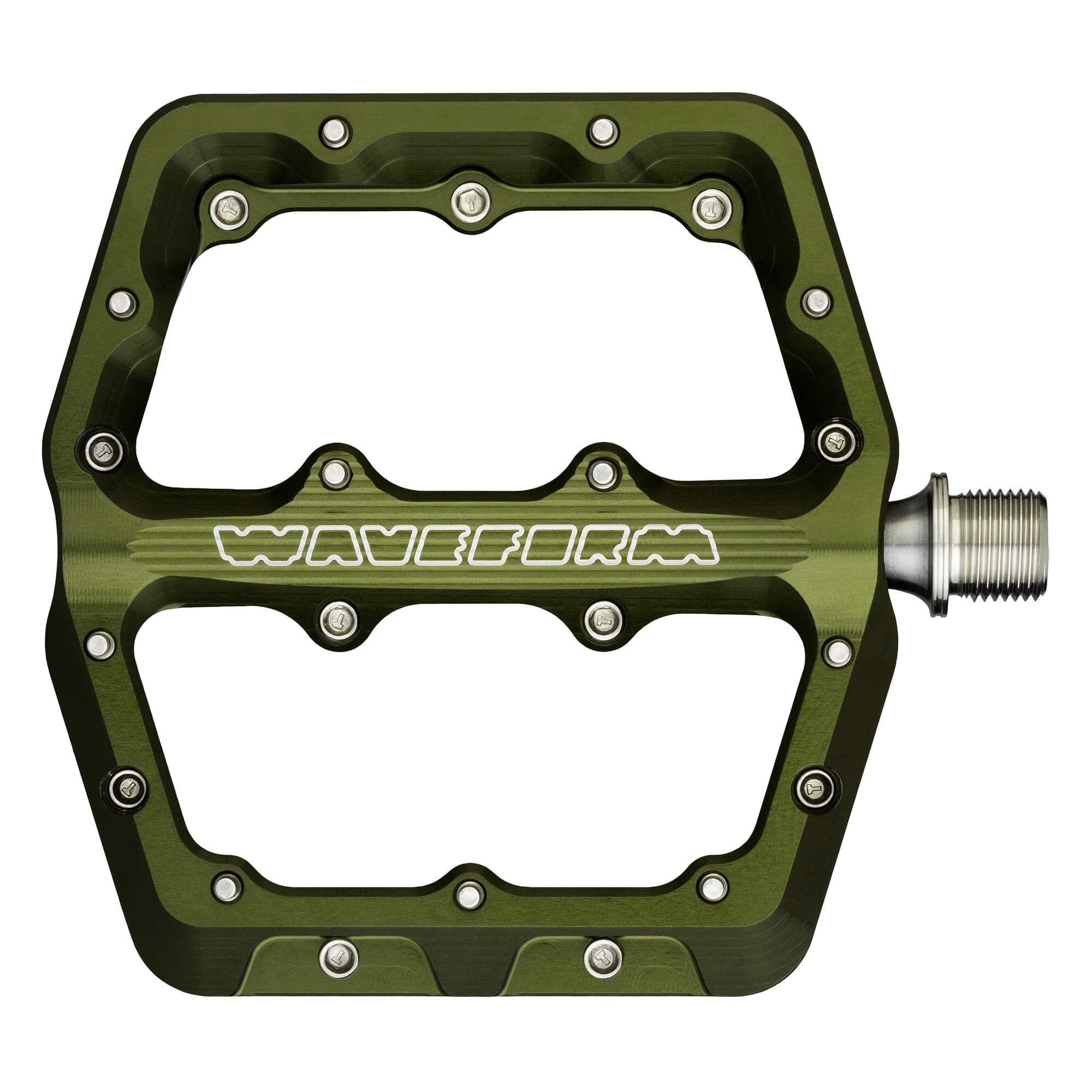

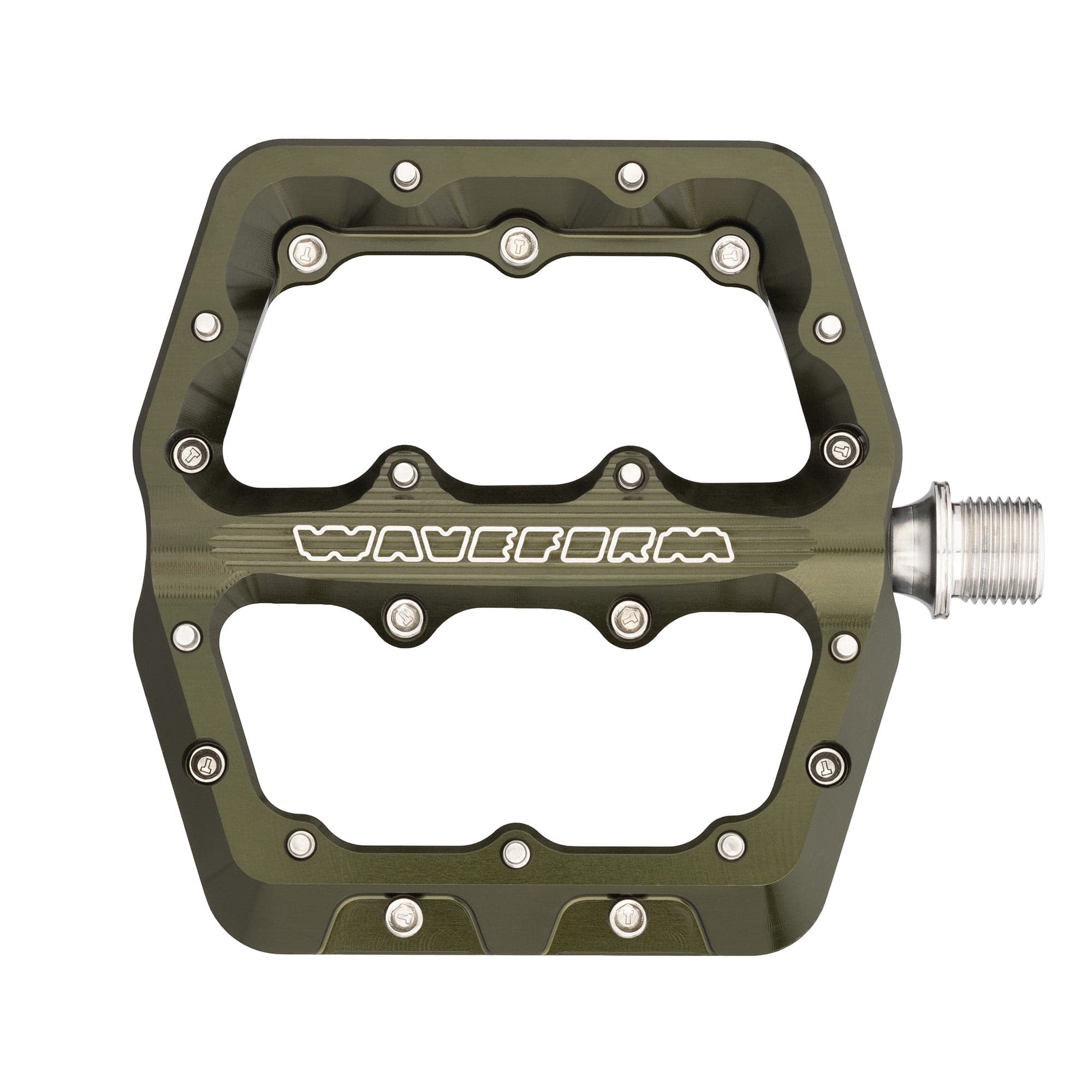

- Two sizes: Large is 112mm x 106mm, small is 105mm x 99mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Eleven stainless steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes.
- Available in eight colors
Recommended
Compatibility
- Fits all cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Related Products
Waveform Pedals Replacement Parts
Waveform Pedal Pins
WT-G Grease
Crankskins Crankarm Protectors
Tech Specs
User Manual and Service Guide
Warranty
Waveform Pedal Replacement Parts
Waveform Pedals Factory Service
Weight: Large set 384g | Small set 373g
Size (length x width): Large: 112mm x 106mm |. Small: 105mm x 99mm
Pin Height: 4.5mm
Material: Platform: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel
Made in the USA
Patent and trademark information
Product Images Disclaimer
Product images are for reference only and may not reflect the exact specifications, color, or components of the item offered for sale. Please refer to the product description and specifications for the most accurate details. If you have questions before purchasing, contact us and we’ll be happy to confirm.
