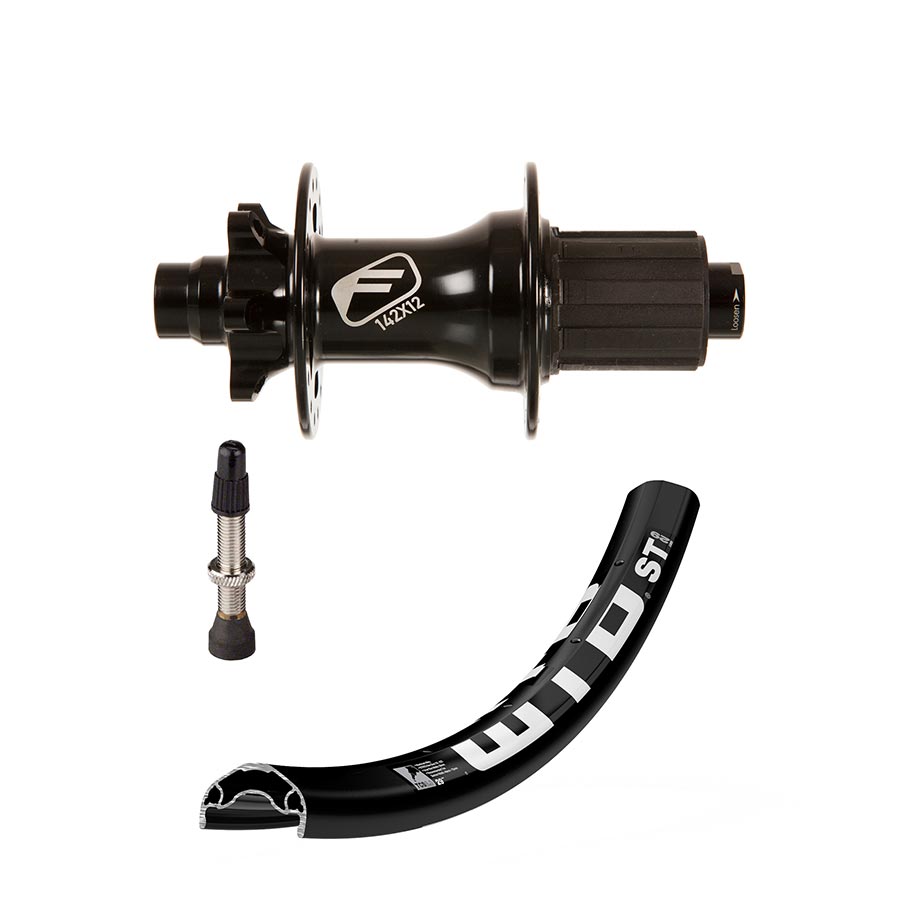

Rims: WTB ST i30, inner width: 30 mm TCS 2.0 Tubeless system Solid Strip protects and ensures a smooth surface between the tire and the rim Easy On-Ramp profile allows for a smooth tire installation and stress- free inflation Industrial Epoxy reinforced Pinned Joint Drilled for Presta valve 32 holesFront hub (-01): Formula DC711, Thru Axle 15x110mm BOOST 6-bolt Disc mount Sealed Bearings TA Axle not incl.Rear hub (-02): Formula DHT148, Thru-Axle 12x148mm BOOST Freehub compatible with MTB HG 8-11 speed cassette 6-bolt Disc mount Sealed Bearings TA Axle not incl.Rear hub (-03): Formula DC2241, M9x141mm Freehub compatible with MTB HG 8-11 speed cassette 6-bolt Disc mount Adjustable bearings Quick Release binder incl.Tubeless Compatible (Tubeless Valve included)Assembled in North America by experienced wheelbuilders with Sapim 14G Stainless Steel spokes and 14mm Brass Polyax Nipples
| Axle Type |
12mm TA |
| Freehub Body |
Shimano HG |
| Hub Model |
Formula DHT-148 |
| Hub Spacing |
148mm |
| Position |
Rear |
| Rim Color |
Black |
| Rim Construction |
Double wall Pinned |
| Rim Drilling |
F: 21 R: 24 |
| Rim Internal Width |
30mm |
| Rim Material |
Aluminum |
| Rim Model |
WTB ST i30 |
| Skewers Included |
No |
| Spoke Type |
Sapim |
| Valve |
Presta |
| Wheel-Brake Comp. |
Disc IS 6-bolt |
| Wheel Diameter/ISO |
29 / 622 |
| Wheel Tire Type |
Clincher |
| Rim inner width range |
28-34.9mm |
